Product Details

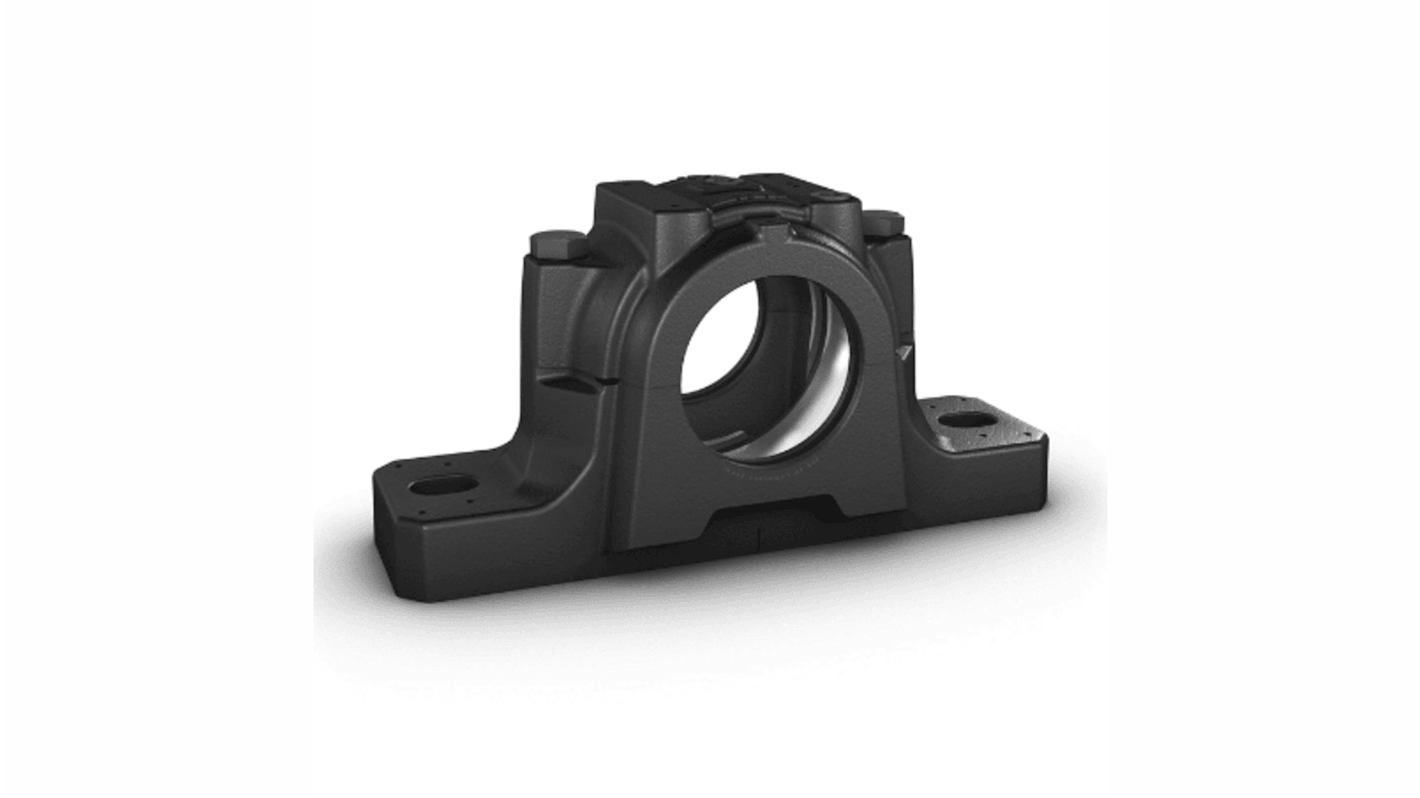

SKF Bearing Housing, Plummer Block Type, 100mm Centre Height, 60mm ID - SNL 518-615 K7
Use this modular plummer block house from SKF when you need a fully customisable unit that matches the unique requirements of your industrial machinery. For flexibility, you can combine it with any of SKF's 22218 spherical roller bearings or with an adaptor sleeve (209-3737). Designed for easy installation, the housing features a two-piece configuration that fits in place around pre-assembled shafts. It also has centre lines cast into the base to help improve alignment during mounting.
Features & Benefits
Cast-iron material is tough and durable for a long service life under demanding conditions
Reinforced ribs around attachment holes add strength and prevent deformation of the base
Additional ribs conduct heat away from the bearing's outer ring to improve performance and reduce maintenance
Reinforced ribs around attachment holes add strength and prevent deformation of the base
Additional ribs conduct heat away from the bearing's outer ring to improve performance and reduce maintenance
Applications
Emergency power-supply generator flywheels
Belt drives
Impact and hammer mills
Belt drives
Impact and hammer mills
What's a plummer block?
Plummer blocks are ball-bearing units designed for use in heavy-industrial environments. They provide extra stability for long rotating shafts. The fixed housing allows the inner ring to rotate while holding the outer ring in place. As they're usually manufactured from cast iron or spheroidal graphite cast iron, they're extremely strong and rigid.
Specifications
Attribute | Value |
---|---|
Type | Split plummer block housing |
Dimensions | 345 x 140 x 194mm |
Housing Width | 140mm |
Housing Length | 345mm |
Housing Height | 194mm |
