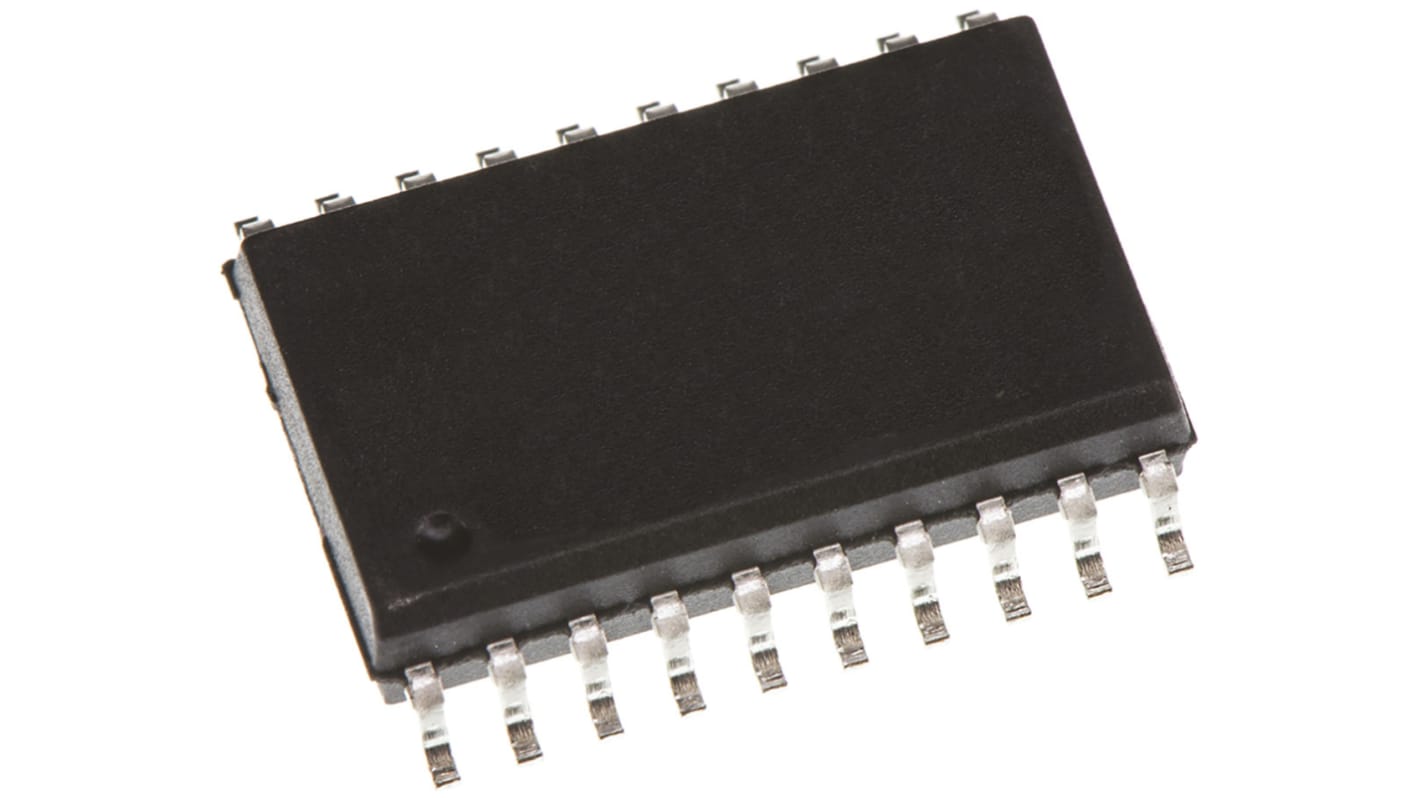

onsemi MC74AC244DWG Octal-Channel Buffer & Line Driver, 3-State, 20-Pin SOIC
- RS Stock No.:
- 806-2191
- Mfr. Part No.:
- MC74AC244DWG
- Manufacturer:
- onsemi
350 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 25)
MYR4.702
| Units | Per Unit | Per Pack* |
| 25 + | MYR4.702 | MYR117.55 |
| *price indicative | ||
- RS Stock No.:
- 806-2191
- Mfr. Part No.:
- MC74AC244DWG
- Manufacturer:
- onsemi
Technical data sheets
Legislation and Compliance
Product Details
MC74AC Family, ON Semiconductor
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
74AC Family
Specifications
Attribute | Value |
|---|---|
| Logic Family | AC |
| Logic Function | Buffer, Line Driver |
| IC Type | Buffer & Line Driver IC |
| Number of Channels per Chip | 8 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 20 |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Maximum Propagation Delay Time @ Maximum CL | 10 ns@ 50 pF |
| Dimensions | 12.95 x 7.6 x 2.4mm |
| Maximum Operating Supply Voltage | 6 V |
| Minimum Operating Supply Voltage | 2 V |
| Propagation Delay Test Condition | 50pF |
