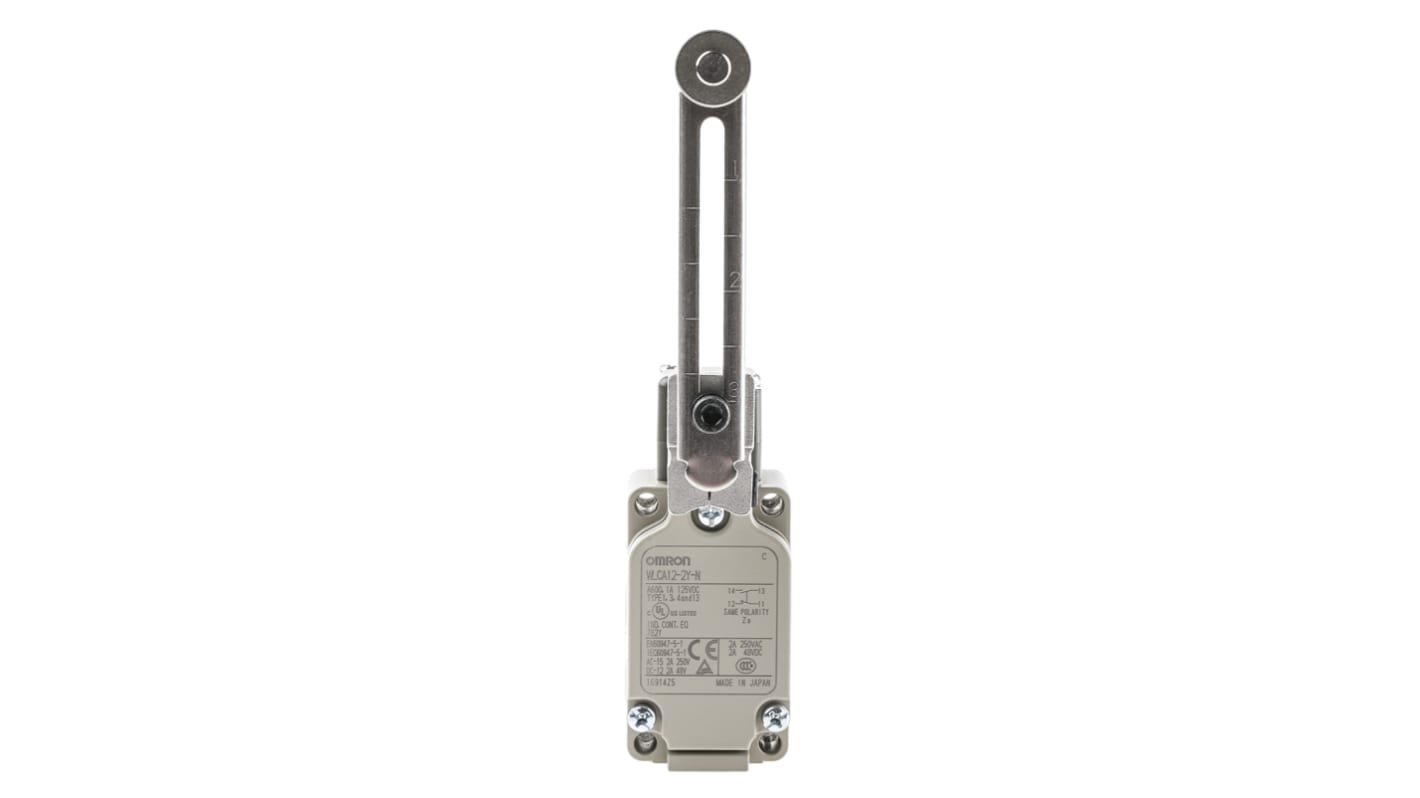

Omron WL Series Roller Lever Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max
- RS Stock No.:
- 908-3290
- Mfr. Part No.:
- WLCA12-2Y-N
- Manufacturer:
- Omron
9 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
13 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR521.42
| Units | Per Unit |
| 1 + | MYR521.42 |
- RS Stock No.:
- 908-3290
- Mfr. Part No.:
- WLCA12-2Y-N
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
WL Series General Purpose Limit Switch
Oil-tight, waterproof and dustproof cast aluminium body construction to IP67
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (Ith250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (Ith250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5
Approvals
UL, CSA
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Roller Lever |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 10A |
| Maximum AC Voltage | 500V |
| Maximum DC Voltage | 250V |
| Connection Type | M20 |
| Series | WL |
| Action Type | Snap Action |
| Length | 40mm |
| Maximum Operating Temperature | +85°C |
| Width | 53.2mm |
| Minimum Operating Temperature | -10°C |
| Depth | 94.1mm |
| Operating Force | 13.34 N |
| Mounting Orientation | Back, Front |
| Mechanical Life | 15000000Operations |
