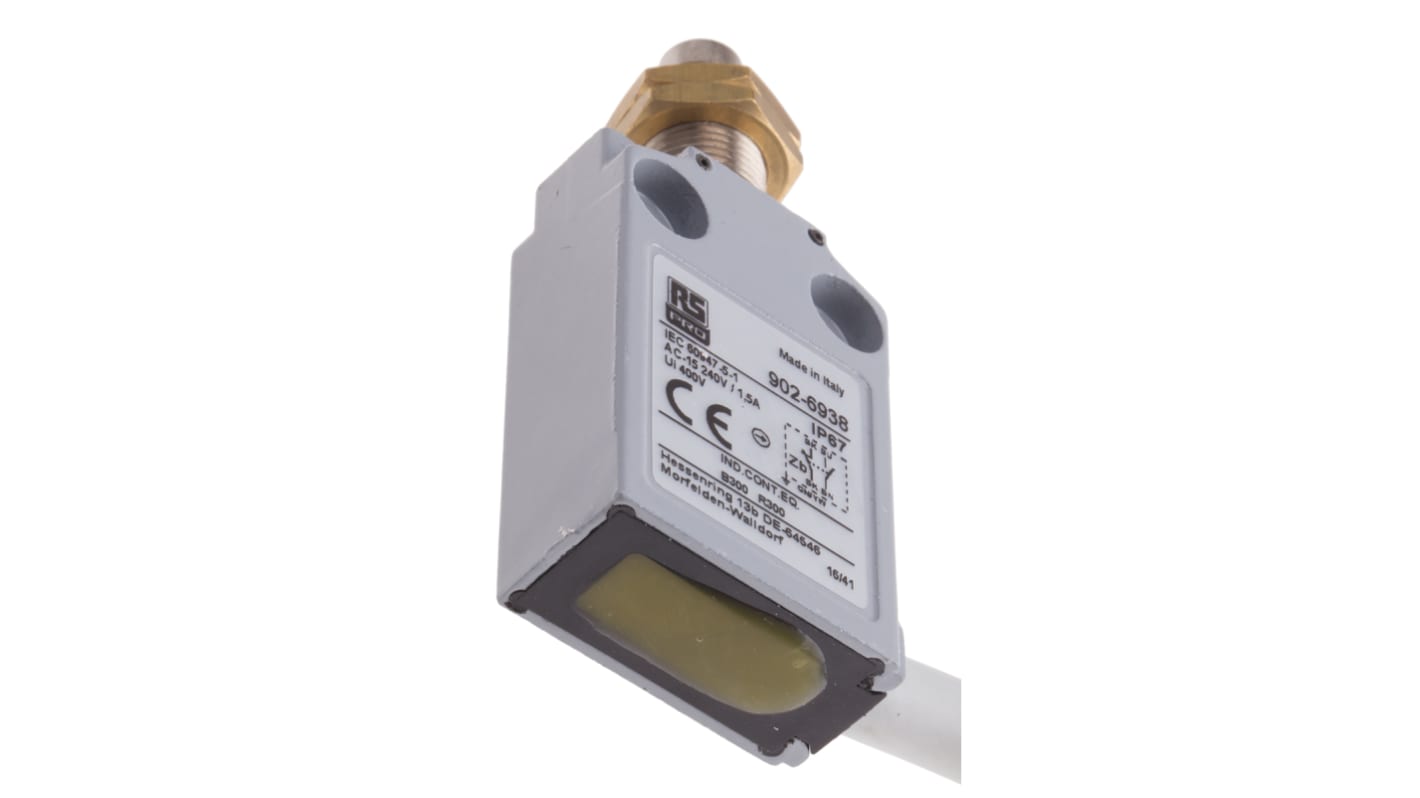

IP67 Snap Limit Switch Plunger Die Cast Zinc Alloy, Thermoplastic, NO/NC, 240V

  • RS Stock No. 902-6938
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

RS IP67 EM/EP Series Limit Switches

Easy to use electromechanical limit switches offer special qualities and purpose built detection devices with characteristics such as, presence/absence, positioning and travel limit, objects passing and counting. The EP Series limit switches are made from thermoplastic material and the EM series limit switches are made from zinc alloy sealed with epoxy resin at the box base and have a degree of protection of IP 67

Visible operation
Able to switch strong currents – 5 A conventional thermal current
Electrically separated contacts
Precise operating points – consistency
Immune to electromagnetic disturbances
Variety of operating heads, plain plunger, roller plunger, Roller lever
Metal Casing to IP67
All are pre wired
Plastic casing are double insulated

Plastic and Metal Casing IP67 Limit switches

Note

Metal Casing stock numbers 902-6922, 902-6913, 902-6925, 902-6929, 902-6938, 902-6931, 902-6935.
Plastic Casing stock numbers 902-6944, 902-6947, 902-6941, 9026950

Approvals

IEC 947-5-1, EN 60 947-5-1

Specifications
Attribute Value
Actuator Type Plunger
Pole and Throw Configuration DPST
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current 5 A
Housing Material Die Cast Zinc Alloy, Thermoplastic
Maximum AC Voltage 240V
Maximum DC Voltage 250V
Connection Type Cable
Contact Type Snap
Terminal Type Wire Lead
Length 31.5mm
Width 74mm
Standards Met CE, CSA, RU, UL
Mounting Orientation Vertical
Mechanical Life Minimum 10000000 Operations
Maximum Operating Temperature +70°C
Operating Force 15N
Depth 16mm
Minimum Operating Temperature -25°C
Dimensions 31.5 x 74 x 16 mm
8 Within 4 working day(s) (Global stock)
2 Within 4 working day(s) (Global stock)
Price Each
MYR 147.95
units
Per unit
1 +
MYR147.95
