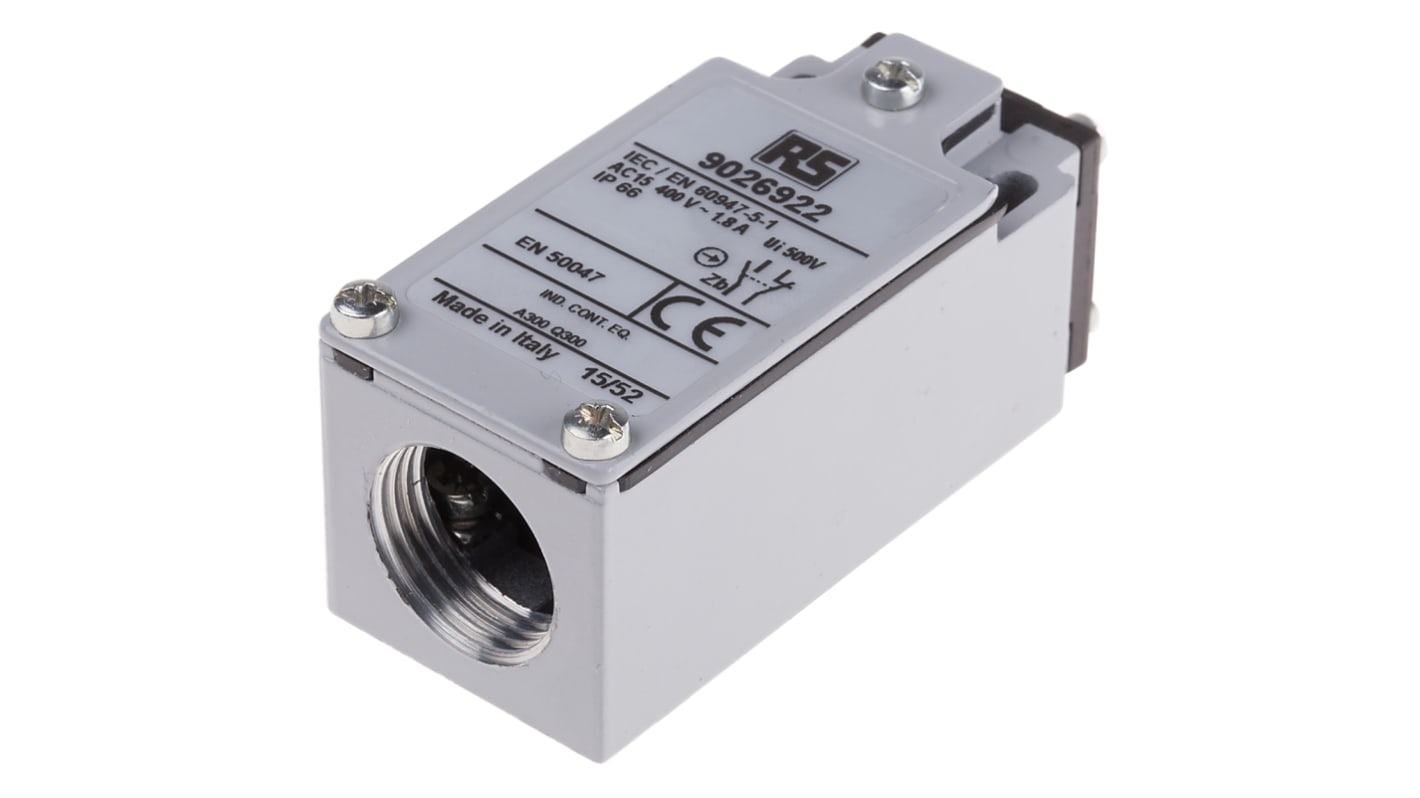

RS PRO Plunger Limit Switch, NO/NC, IP66, DPST, Zinc Alloy Housing, 400V ac Max, 10A Max

RS Stock No.:: 902-6922
Manufacturer:: RS PRO

RS PRO Plunger Limit Switch, NO/NC, IP66, DPST, Zinc Alloy Housing, 400V ac Max, 10A Max

80 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR68.73

Units	Per Unit
1 - 4	MYR68.73
5 +	MYR56.56

RS Stock No.:: 902-6922
Manufacturer:: RS PRO

Technical data sheets

RS Pro Datasheet

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

RS M20 AM F/T Series Limit Switches

Easy to use electromechanical limit switches offer special qualities and purpose built detection devices with characteristics such as, presence/absence, positioning and travel limit, objects passing and counting. These limit switches are made from zinc alloy (Zamack) and all have a degree of protection of IP 66 or a Plastic casing IP65.

Visible operation
Able to switch strong currents – 10 A conventional thermal current
Electrically separated contacts
Precise operating points – consistency
Immune to electromagnetic disturbances
Variety of operating heads, plain plunger, roller plunger, Roller lever
Standardized dimension to EN 50047 and EN 50041
Metal Casing to IP66
Plastic casing to IP65 Double Insulated

Metal IP66 and Plastic Casing IP65 Limit Switches

Note

Rs Stock numbers 902-6922 and 902-6913 are Plastic Casing

Approvals

IEC 947-5-1, EN 60 947-5-1

Specifications

Attribute	Value
Actuator Type	Plunger
Pole and Throw Configuration	DPST
Normal State Configuration	NO/NC
IP Rating	IP66
Maximum Current	10A
Housing Material	Zinc Alloy
Maximum AC Voltage	400V
Maximum DC Voltage	250V
Connection Type	Cable
Action Type	Snap Action
Length	30.3mm
Minimum Operating Temperature	-25°C
Depth	32.5mm
Width	75mm
Maximum Operating Temperature	+70°C
Operating Force	15 N
Mechanical Life	15000000Operations
Mounting Orientation	Vertical
