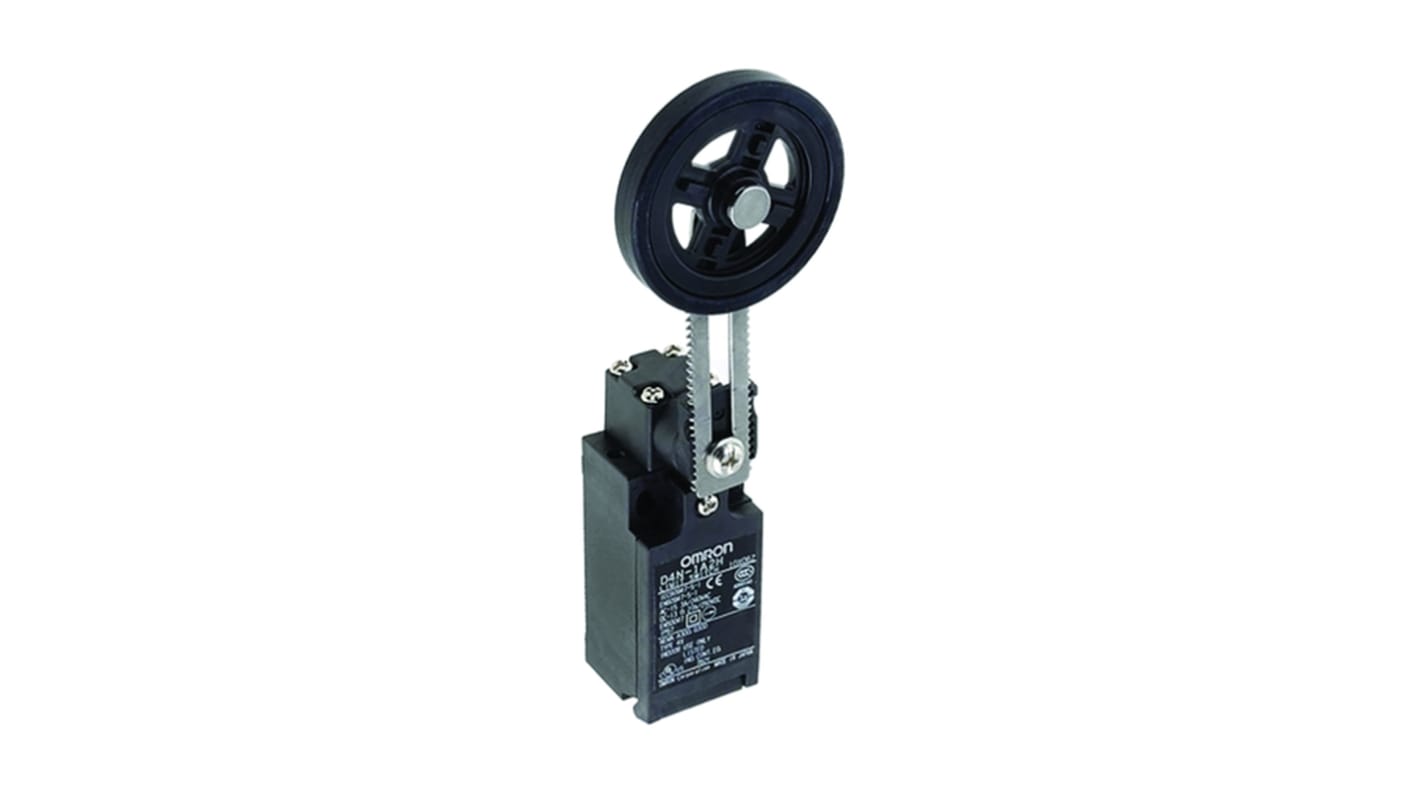

Omron D4N Series Adjustable Roller Lever Top Plunger, NO/NC, IP67, DPST, Metal Housing
- RS Stock No.:
- 836-2735
- Mfr. Part No.:
- D4N-112H
- Manufacturer:
- Omron
111 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR219.06
| Units | Per Unit |
| 1 + | MYR219.06 |
- RS Stock No.:
- 836-2735
- Mfr. Part No.:
- D4N-112H
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
D4N Series Safety Limit Switch PG13.5
Replacement for Omron D4D-N Series limit switches. Functionality is unchanged but body length is increased by 4mm. The change in body length does not affect the actuator position.
N/C for safety circuit and N/O for control circuit (SPDT)
Contact rating 10A continuous
Head may be located in choice of 4 positions
IP67 protection rating
PG13.5 conduit entry
Ambient operating temperature -30 to +70°C
Conforms to Machinery Directive and Low Voltage Directive
Contact rating 10A continuous
Head may be located in choice of 4 positions
IP67 protection rating
PG13.5 conduit entry
Ambient operating temperature -30 to +70°C
Conforms to Machinery Directive and Low Voltage Directive
Standards
TUV EN60947-5-1 (approved direct opening), UL508 CSA C22.2 No.14, CCC (CQC) GB14048.5, EN50047, EN1088 (slow action models only).
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Adjustable Roller Lever |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Housing Material | Metal |
| Connection Type | PG13.5 |
| Series | D4N |
| Length | 31mm |
| Depth | 82.5mm |
| Width | 48.2mm |
| Mechanical Life | 15000000Operations |
| Mounting Orientation | Front |
