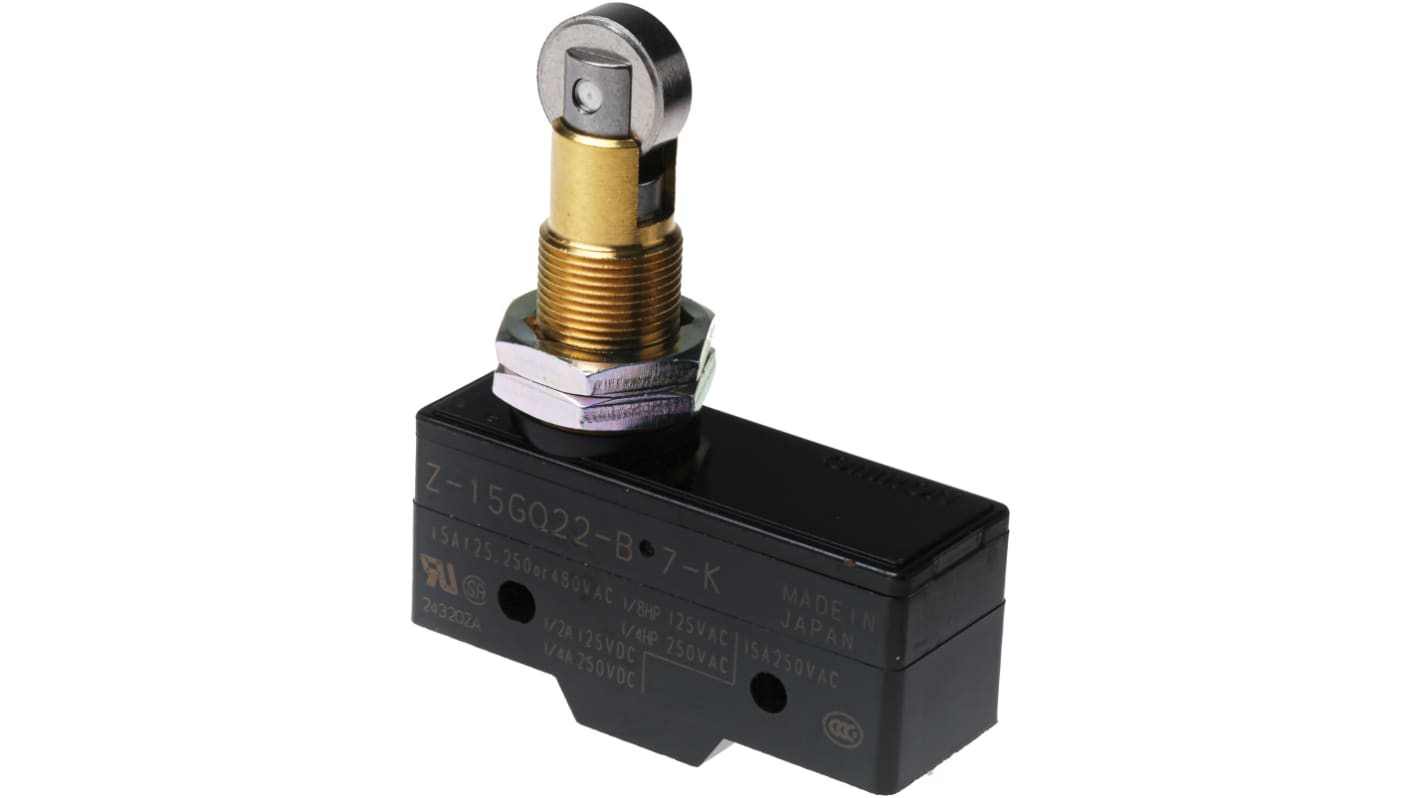

IP00 Snap Action Limit Switch Roller Plunger, NO/NC, 500V

  • RS Stock No. 822-5601
  • Mfr. Part No. Z-15GQ22-B7-K
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Specifications
Attribute Value
Actuator Type Roller Plunger
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP00
Maximum Current 15 A
Maximum AC Voltage 500V
Maximum DC Voltage 250V
Connection Type M4
Contact Type Snap Action
Terminal Type Screw
Length 49.2mm
Width 25.5mm
Mechanical Life Minimum 20000000 Operations
Minimum Operating Temperature -25°C
Depth 17.45mm
Dimensions 49.2 x 25.5 x 17.45 mm
Maximum Operating Temperature +80°C
69 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 73.05
units
Per unit
1 +
MYR73.05
