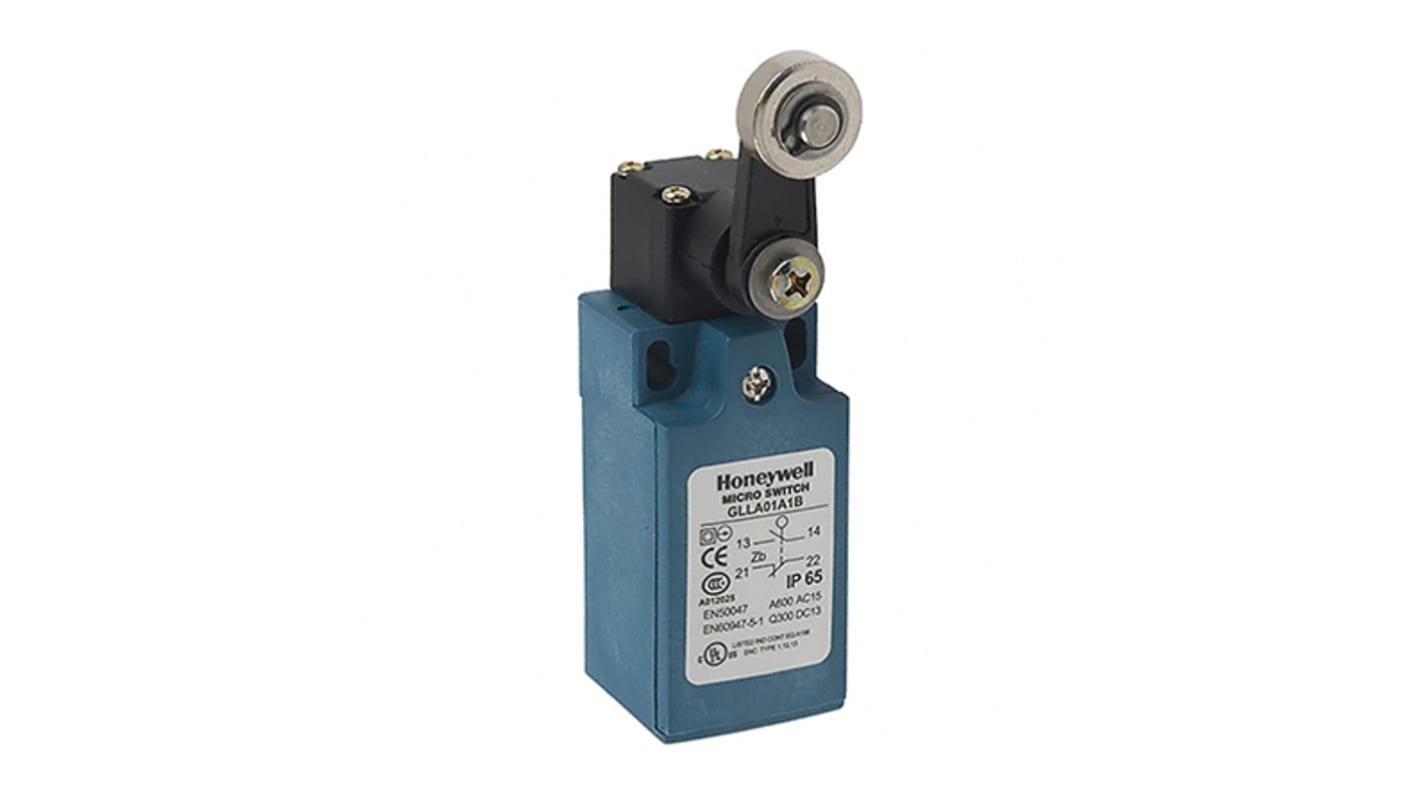

Honeywell GLL Series Roller Lever Limit Switch, NO/NC, IP66, SPDT, Plastic Housing, 600V ac Max, 10A Max
- RS Stock No.:
- 808-7636
- Mfr. Part No.:
- GLLA01A1B
- Manufacturer:
- Honeywell
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR188.81
Units | Per Unit |
1 - 24 | MYR188.81 |
25 - 49 | MYR184.86 |
50 + | MYR179.32 |
- RS Stock No.:
- 808-7636
- Mfr. Part No.:
- GLLA01A1B
- Manufacturer:
- Honeywell
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Honeywell Snap-Action Roller Lever Limit Switch, -10°C to +85°C, 250V DC - GLL Series - GLLA01A1B
This roller lever limit switch from Honeywell is a miniature proximity sensing device. Its robust glass fibre-reinforced PBT (polybutylene terephthalate) exterior is resistant to impact and heat, providing superior protection to its inner working parts for use in heavy-duty industrial environments. The snap-action mechanism means that the contacts open and close rapidly to ensure quick response times. For enhanced safety, the switch is double-insulated to reduce the risk of electrical hazards. A hinge cover lets you easily access and wire the device for fast and simple set-up.
Features & Benefits
Galvanically isolated contacts for enhanced protection against electrical faults
Wide operating temperature range of -10°C to +80°C for use in hot and cold environments
IP65 (ingress protection) rating means it's dust-tight and protected against low-pressure water jets
Wide operating temperature range of -10°C to +80°C for use in hot and cold environments
IP65 (ingress protection) rating means it's dust-tight and protected against low-pressure water jets
Applications
Packaging equipment
Transportation hubs
Assembly lines and conveyors
Transportation hubs
Assembly lines and conveyors
What kind of actuator does this limit switch have?
This limit switch has a roller lever actuator that's adjustable so you can easily shorten or extend its length to meet your requirements.
Approvals
UL/ UL listed for Canada
Specifications
Attribute | Value |
---|---|
Actuator Type | Roller Lever |
Pole and Throw Configuration | SPDT |
Normal State Configuration | NO/NC |
IP Rating | IP66 |
Maximum Current | 10A |
Housing Material | Plastic |
Maximum AC Voltage | 600V |
Maximum DC Voltage | 250V |
Connection Type | 1/2 in NPT |
Series | GLL |
Action Type | Snap Action |
Length | 30.5mm |
Depth | 31mm |
Maximum Operating Temperature | +80°C |
Width | 62mm |
Minimum Operating Temperature | -10°C |
Mounting Orientation | Vertical |
Mechanical Life | 5000000Operations |
