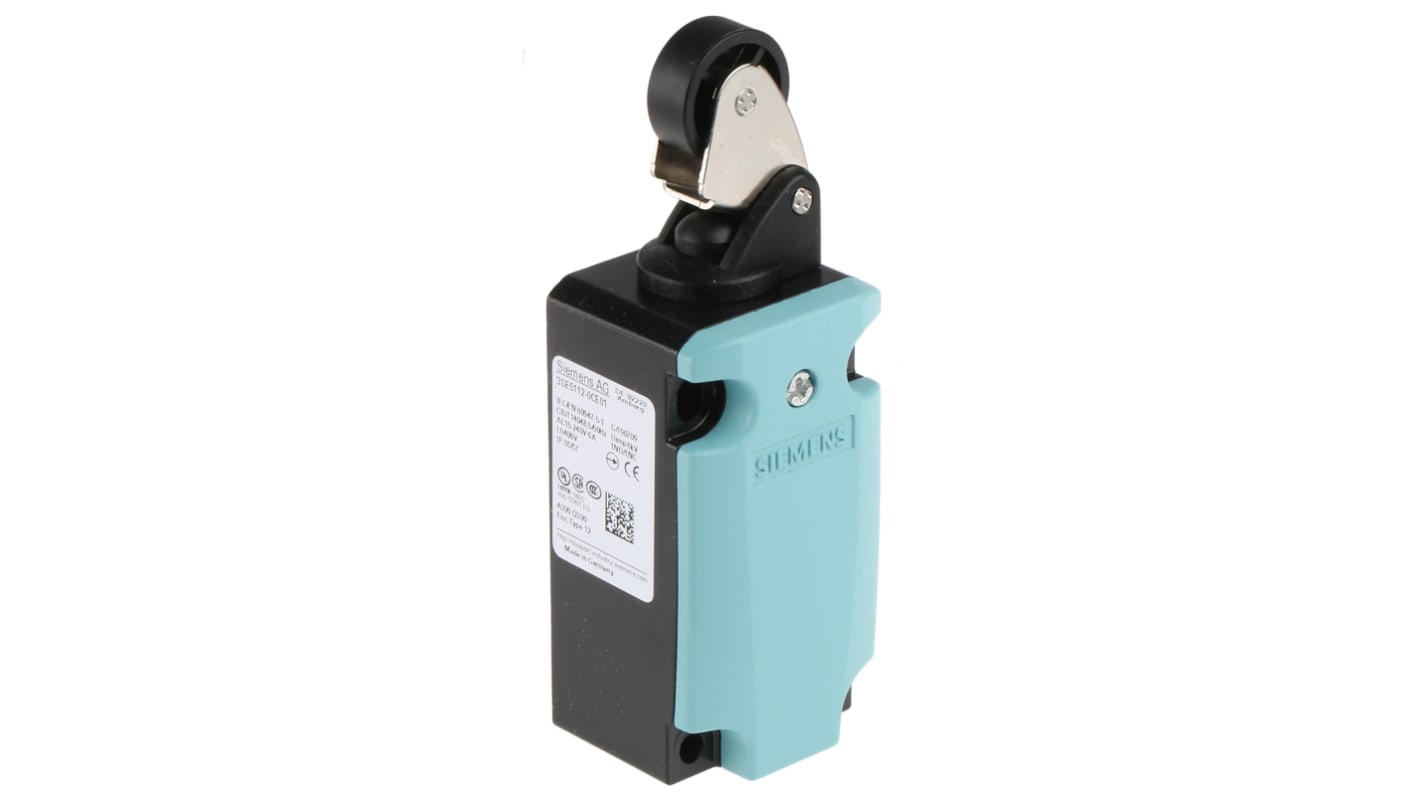

IP66, IP67 Snap Action Roller Lever Roller Lever Metal, NO/NC, 400V

  • RS Stock No. 684-2910
  • Mfr. Part No. 3SE5112-0CE01
  • Manufacturer Siemens
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Metal-Encapsulated Pin Switches 3SE2

General description (applications): on the basis of increasing requirements in relation to the safety of technical devices and machinery, electromechanical pin switches are becoming increasingly indispensable. These include safety pin switches enclosed in moulding material in compliance with EN 50047 (and other standards) and metal-encapsulated position switches in compliance with EN 50041. Pin switches convert the mechanical positions of moving machine components into electrical signals.

Main characteristics

Safety function based on positive break contacts in accordance with IEC 60947-5-1-3
The opening break-before-make contacts are thus opened mechanically and reliably by actuator
The devices are climate-resistant
Various types of drive

Specifications
Attribute Value
Actuator Type Roller Lever
Normal State Configuration NO/NC
IP Rating IP66, IP67
Maximum Current 6 A @ 24 V
Housing Material Metal
Maximum AC Voltage 400V
Maximum DC Voltage 400V
Connection Type Snap-On
Contact Type Snap Action
Terminal Type Screw
Length 119mm
Width 37.3mm
Dimensions 119 x 37.3 x 40.5 mm
Minimum Operating Temperature -25°C
Mechanical Life Minimum 15000000 Operations
Depth 40.5mm
Maximum Operating Temperature +85°C
Mounting Orientation Side
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 229.78
units
Per unit
1 +
MYR229.78
