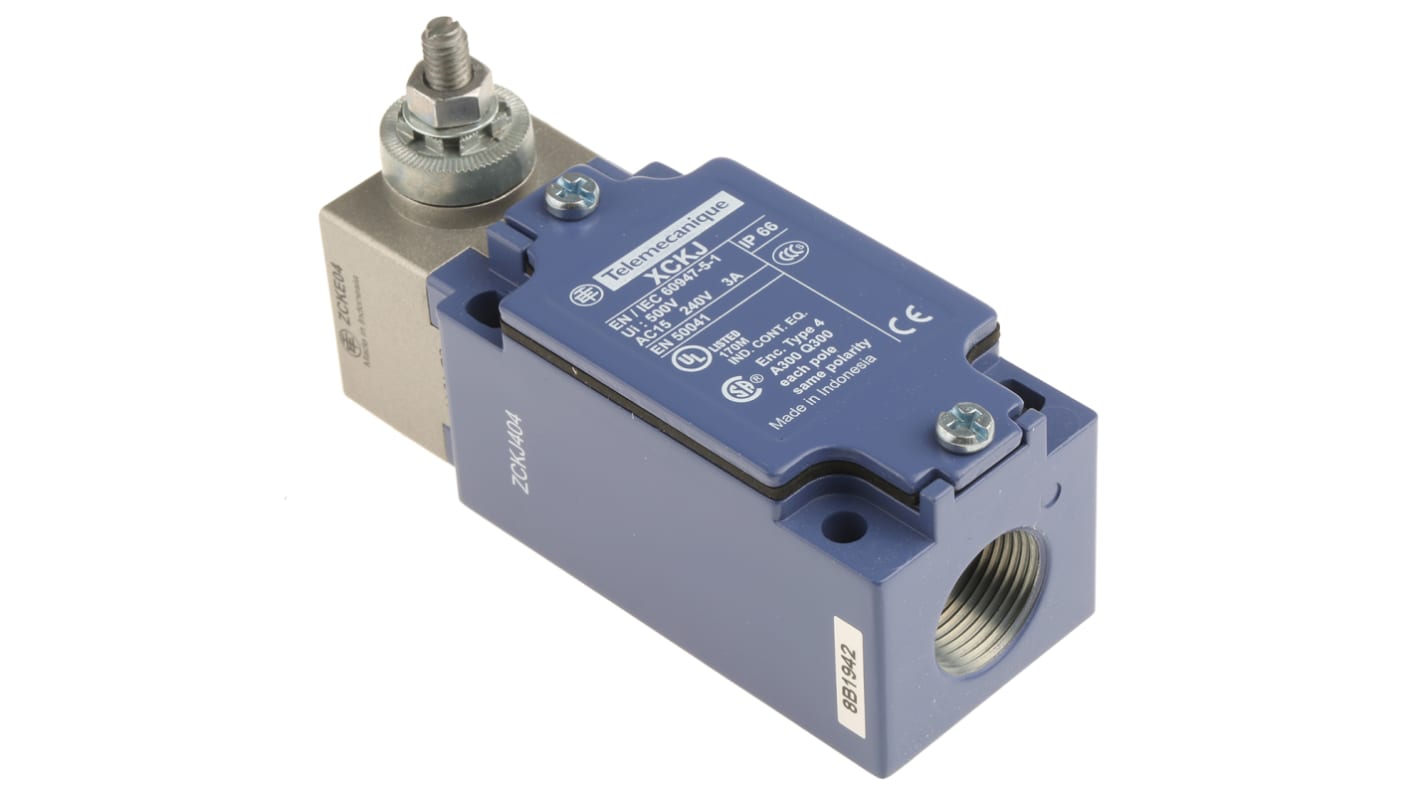

IP65 Snap Action Limit Switch Metal, 2NO/2NC, 240V

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Limit Switches Series XCK J, in Separate Components

Metal limit switches, Classic XCK J series, in separate components.
The complete device comprises a contact body, a head and a lever.

Telemecanique, Square D & Crouzet

Specifications
Attribute Value
Pole and Throw Configuration DP
Normal State Configuration 2NO/2NC
IP Rating IP65
Maximum Current 10 A
Housing Material Metal
Maximum AC Voltage 240V
Maximum DC Voltage 250V
Series OsiSense XC
Contact Type Snap Action
Terminal Type Screw
Length 77mm
Width 40mm
Depth 44mm
Dimensions 77 x 40 x 44 mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 435.53
units
Per unit
1 +
MYR435.53
