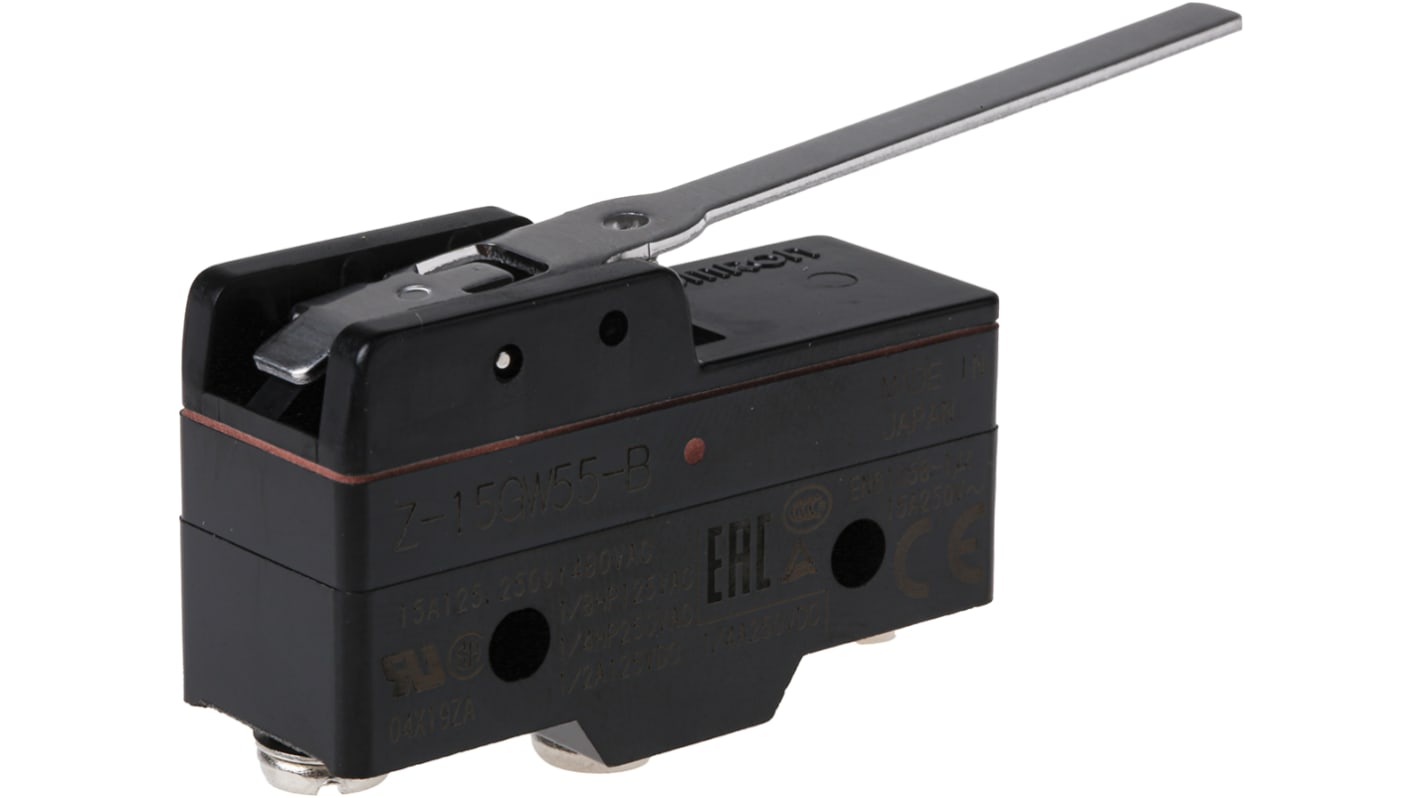

IP00 Snap Action Limit Switch Lever, NO/NC, 500V

  • RS Stock No. 436-0205
  • Mfr. Part No. Z-15GW55-B
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Omron Z15 series General Purpose

High 15A switching current
Standard type G operation
Screw terminal connections
Body size 49 x 17.5 x 24mm

Industry standard general purpose industrial microswitches for use in a wide variety of applications

Approvals

UL recognized, CSA

Approvals

UL recognised, CSA

Specifications
Attribute Value
Actuator Type Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP00
Maximum Current 15 A
Maximum AC Voltage 500V
Maximum DC Voltage 250V
Contact Type Snap Action
Terminal Type Screw
Length 28.2mm
Width 49.2mm
Minimum Operating Temperature -25°C
Dimensions 28.2 x 49.2 x 17.45 mm
Depth 17.45mm
Mechanical Life Minimum 10000000 cycles
Maximum Operating Temperature +80°C
40 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 73.24
units
Per unit
1 - 4
MYR73.24
5 - 9
MYR72.89
10 - 24
MYR72.20
25 +
MYR71.42
