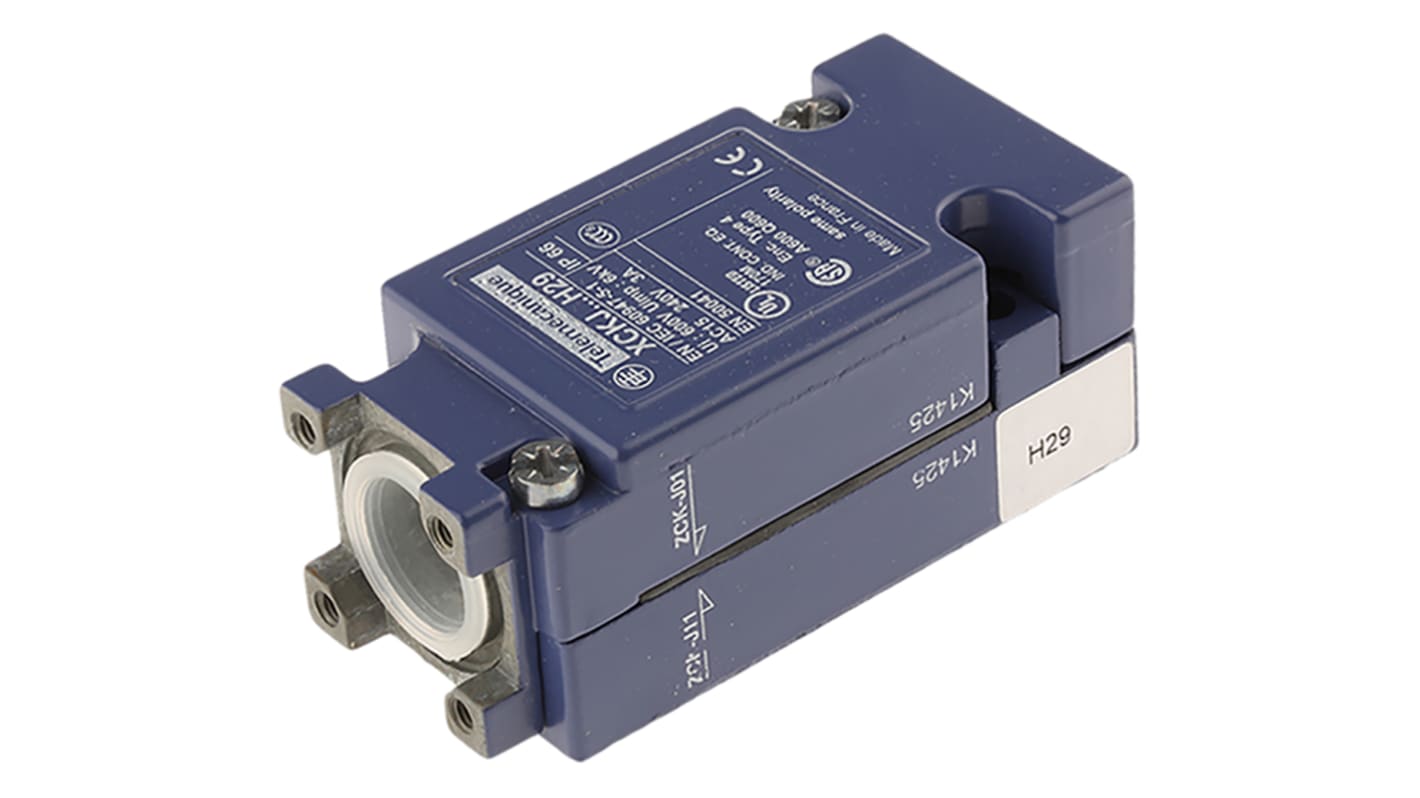

Telemecanique Sensors OsiSense XC Series Limit Switch, NO/NC, IP65, SP, Metal Housing, 240V ac Max, 10A Max
- RS Stock No.:
- 360-8433
- Mfr. Part No.:
- ZCKJ11H29
- Manufacturer:
- Telemecanique Sensors
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR622.92
| Units | Per Unit |
| 1 + | MYR622.92 |
- RS Stock No.:
- 360-8433
- Mfr. Part No.:
- ZCKJ11H29
- Manufacturer:
- Telemecanique Sensors
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Metal Limit Switch Plug in Body (ZCKE/Y)
Complete limit switch assemblies can be constructed using ZCKJ limit bodies and ZCKE/Y limit switch heads and actuators
Rated 240V 3A at AC15 10A Ith
Snap action NC contacts with positive opening operation
-25 to +70°C operating temperature
Protected to IP66
Rated 240V 3A at AC15 10A Ith
Snap action NC contacts with positive opening operation
-25 to +70°C operating temperature
Protected to IP66
Standards
VDE0660, IEC947-5-1
Approvals
UL, CSA
Approvals
UL; CSA
Telemecanique, Square D & Crouzet
Specifications
Attribute | Value |
|---|---|
| Pole and Throw Configuration | SP |
| Normal State Configuration | NO/NC |
| IP Rating | IP65 |
| Maximum Current | 10A |
| Housing Material | Metal |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Series | OsiSense XC |
| Action Type | Snap Action |
| Length | 88.5mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Width | 36mm |
