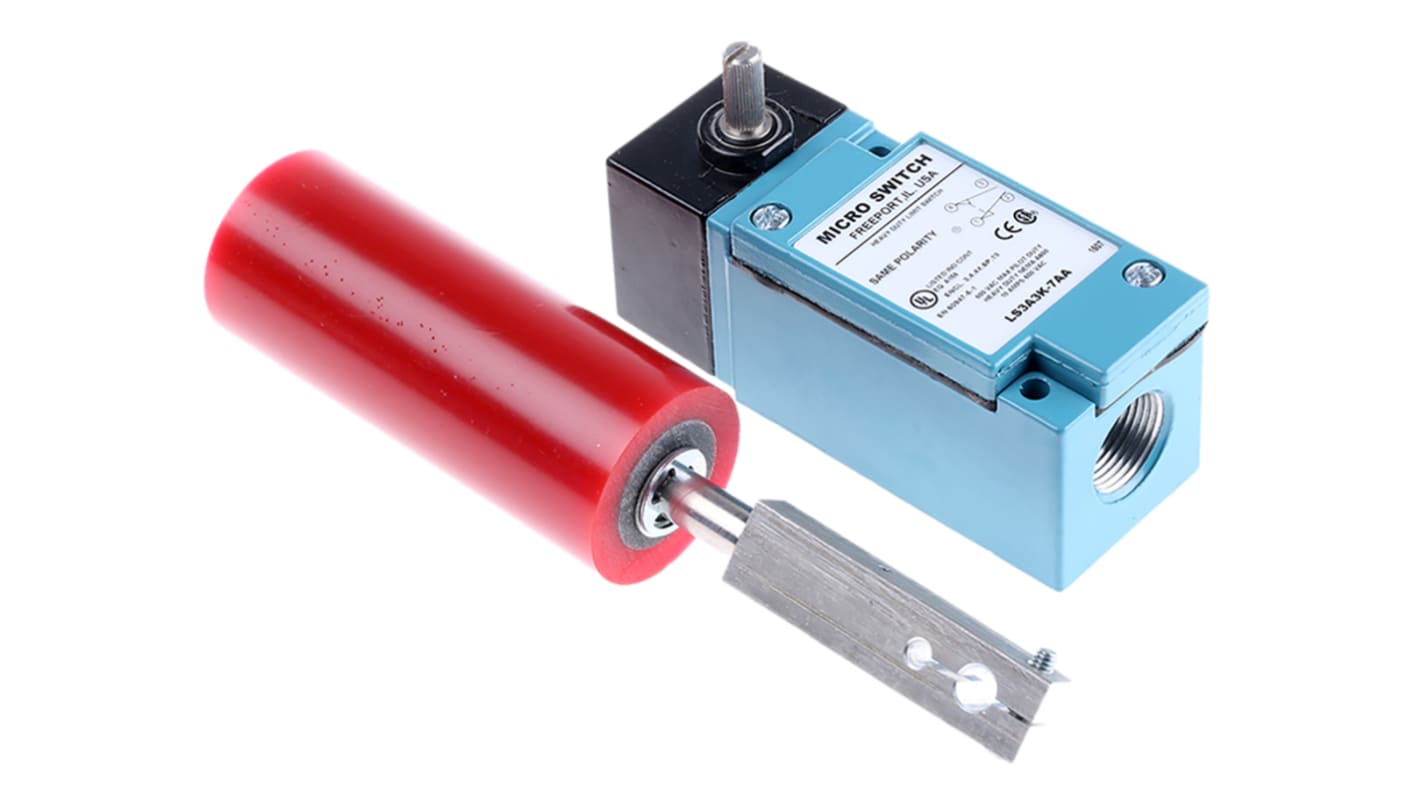

IP67 Snap Action Limit Switch Rotary Lever Die Cast Zinc, NO/NC, 600V

  • RS Stock No. 311-2178
  • Mfr. Part No. LS3A3K-7AA
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Conveyor Alignment Limit Switch

PG 13.5 or 22mm cable entry thread sizes
Excellent corrosion protection
Rugged mechanical construction including heavy zinc alloy die cast head and body housing, all surfaces phosphate coated and epoxy painted external surfaces
Positive break NC contact
Metal anchors used in basic contact block for longer wear and electrical stability
Chrome silicon compression spring for both high and low temperature resiliency
Unsurpassed sealing including standard viton shaft and diaphram seals on rotary styles
NEMA 1, 3, 4, 6, 6P and 13
IP67
UL and CSA approved
CE marked to low voltage directive EN60947-5-1

Standards

EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300

//media.rs-online.com/t_line/L311216-01.gif
//media.rs-online.com/t_line/L311216-02.gif
//media.rs-online.com/t_line/LE311216-01.gif
//media.rs-online.com/t_line/LE311216-02.gif

Approvals

UL; CSA

Specifications
Attribute Value
Actuator Type Rotary Lever
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current 10 A
Housing Material Die Cast Zinc
Maximum AC Voltage 600V
Maximum DC Voltage 250V
Series HDLS
Contact Type Snap Action
Terminal Type PG13.5 Connector
Length 106.7mm
Width 41.1mm
Depth 62mm
Minimum Operating Temperature -12°C
Dimensions 106.7 x 41.1 x 62 mm
Maximum Operating Temperature +121°C
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,215.48
units
Per unit
1 - 5
MYR1,215.48
6 +
MYR1,185.74
