IP67 Snap Action Limit Switch Plunger Die Cast Zinc, NO/NC, 480V

  • RS Stock No. 295-4870
  • Mfr. Part No. 8LS1-4C
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

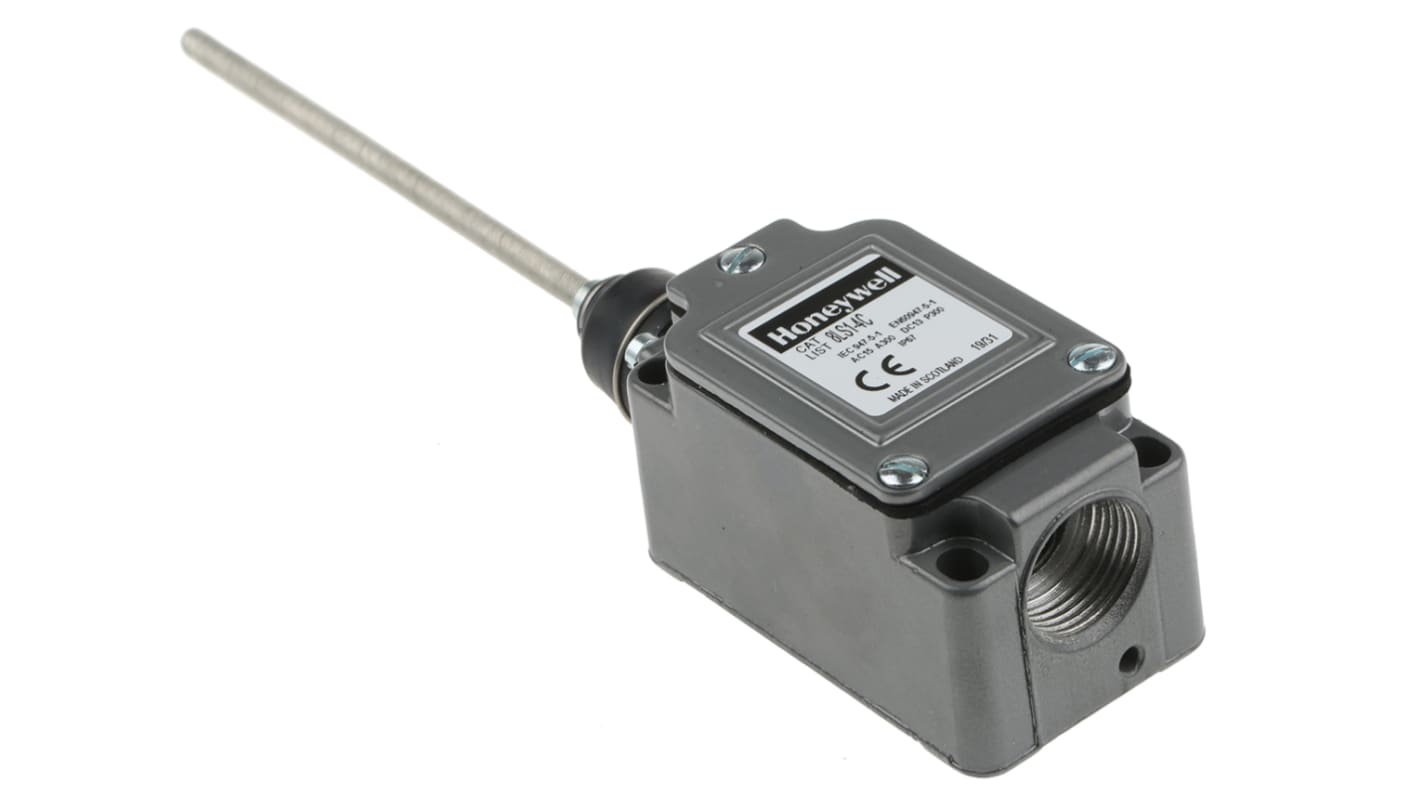

Fine Wobble Actuator Limit Switch

Low actuation force
Positive break operation NC contact
Actuator will not tear cardboard boxes or mark thin steel or plastic sheeting
Metal and plastic LS style body construction
5.2mm dia mounting holes
Ingress protection to IP67
CE marked to the LVD through EN60947-5-1 and IEC947-5-1
Operating temperature -29°C to +71°C

Standards

EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300

//media.rs-online.com/t_line/L295487-01.gif

Approvals

UL; CSA

Specifications
Attribute Value
Actuator Type Plunger
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP67
Maximum Current 10 A
Housing Material Die Cast Zinc
Maximum AC Voltage 480V
Maximum DC Voltage 550V
Contact Type Snap Action
Terminal Type Conduit
Minimum Operating Temperature -29°C
Maximum Operating Temperature +71°C
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 436.51
units
Per unit
1 +
MYR436.51
