Telemecanique Sensors OsiSense XC Series Lever Limit Switch, NO/NC, IP66, DP, Zinc Alloy Housing, 240V ac Max, 10A Max
- RS Stock No.:
- 230-1967
- Mfr. Part No.:
- XCKM115
- Manufacturer:
- Telemecanique Sensors
7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
40 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR478.21
| Units | Per Unit |
| 1 + | MYR478.21 |
- RS Stock No.:
- 230-1967
- Mfr. Part No.:
- XCKM115
- Manufacturer:
- Telemecanique Sensors
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- ID
Product Details
Series XCK-M limit switches
Introducing Telemecanique XCKM range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.
How does a limit switch work?
Metal snap action limit switches.
Standards
IEC 947-5-1, NFC 63146,
VDE 0660-200, UL 508
VDE 0660-200, UL 508

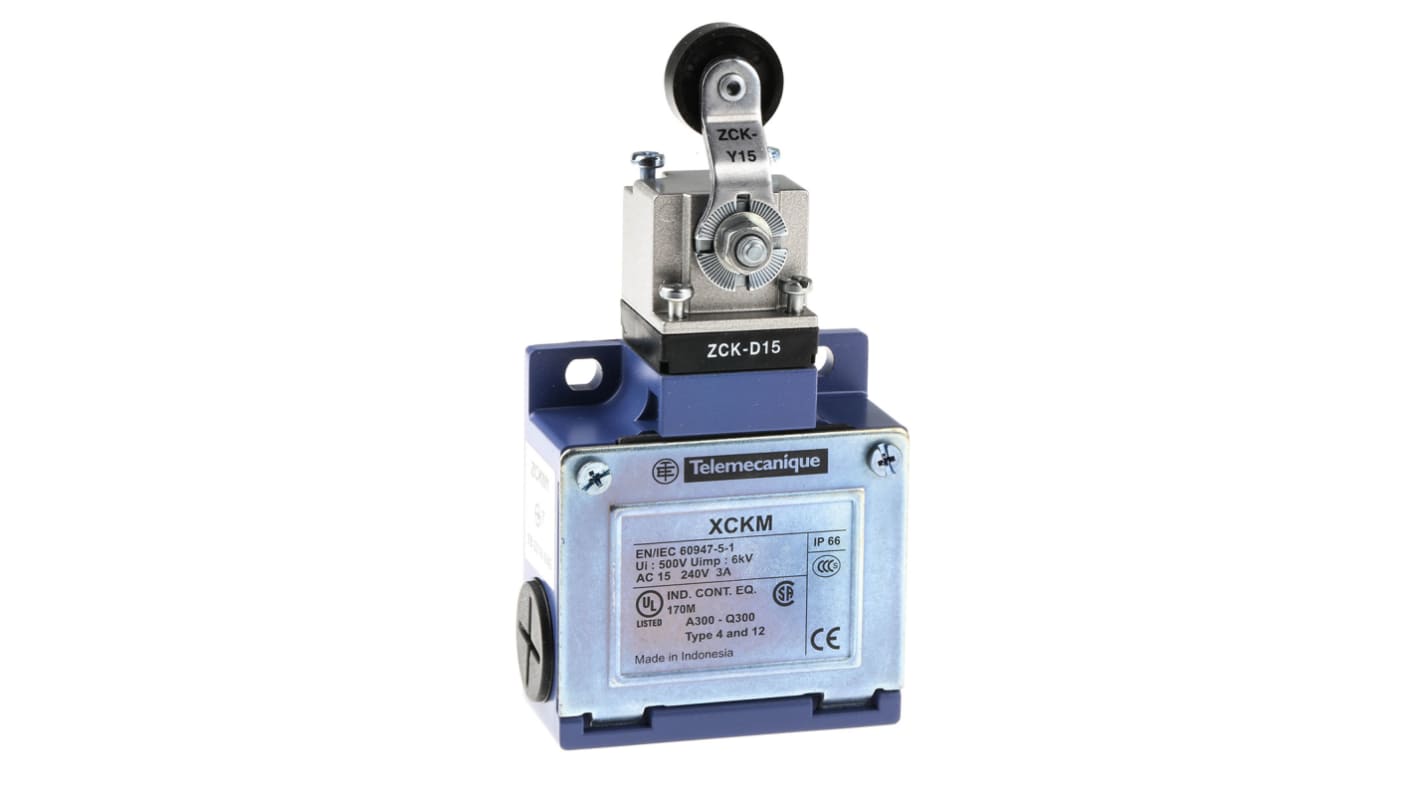

Telemecanique XCKM115 Limit Switch
• Forms part of the OsiSense XC range of products
• Fixed body type
• Features a rotary head
• Comprised of a hardwearing metal material
• The operator type is a spring return roller lever thermoplastic
• 1NC - 1 NO contact types
• 2 poles
• Snap-action contact operation
• Minimum torque for tripping is 0.1 N.m
• Dimensions - W64mm x H64mm x D30mm
• Fixed body type
• Features a rotary head
• Comprised of a hardwearing metal material
• The operator type is a spring return roller lever thermoplastic
• 1NC - 1 NO contact types
• 2 poles
• Snap-action contact operation
• Minimum torque for tripping is 0.1 N.m
• Dimensions - W64mm x H64mm x D30mm
Telemecanique, Square D & Crouzet
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Lever |
| Pole and Throw Configuration | DP |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 10A |
| Housing Material | Zinc Alloy |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Series | OsiSense XC |
| Action Type | Snap Action |
| Length | 64mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Width | 63mm |
| Depth | 30mm |
| Mechanical Life | 15000000Cycles |
