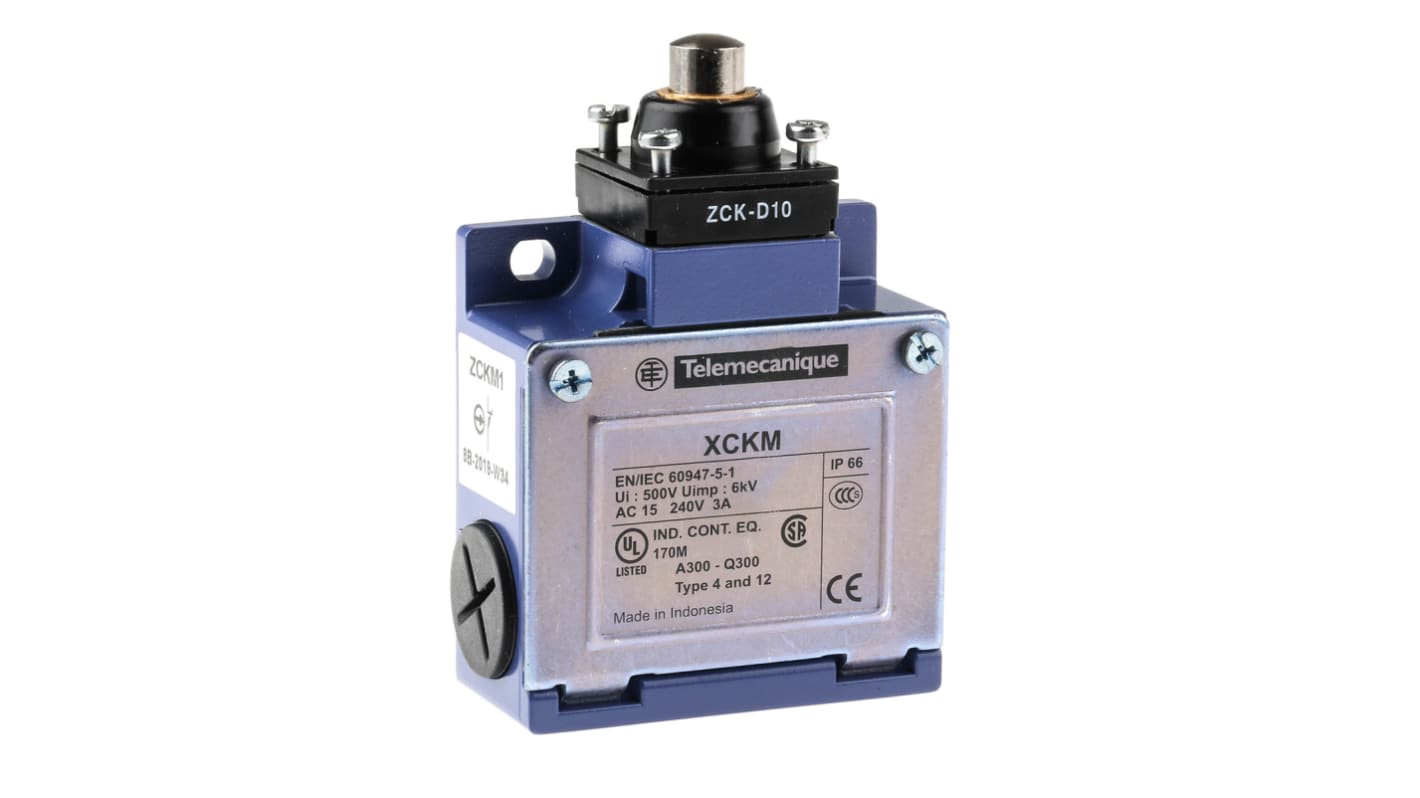

IP66 Snap Action Limit Switch Plunger Zinc Alloy, NO/NC, 240V

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): BR
Product Details

Series XCK-M limit switches

Introducing Telemecanique XCKM range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.

How does a limit switch work?

Metal snap action limit switches.

Standards

  IEC 947-5-1, NFC 63146,
VDE 0660-200, UL 508

Telemecanique, Square D & Crouzet

Specifications
Attribute Value
Actuator Type Plunger
Pole and Throw Configuration DP
Normal State Configuration NO/NC
IP Rating IP66
Maximum Current 10 A
Housing Material Zinc Alloy
Maximum AC Voltage 240V
Maximum DC Voltage 250V
Series OsiSense XC
Contact Type Snap Action
Terminal Type Screw
Length 64mm
Width 63mm
Dimensions 64 x 63 x 30 mm
Mechanical Life Minimum 20000000 cycles
Maximum Operating Temperature +70°C
Depth 30mm
Minimum Operating Temperature -25°C
41 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 196.01
units
Per unit
1 +
MYR196.01
