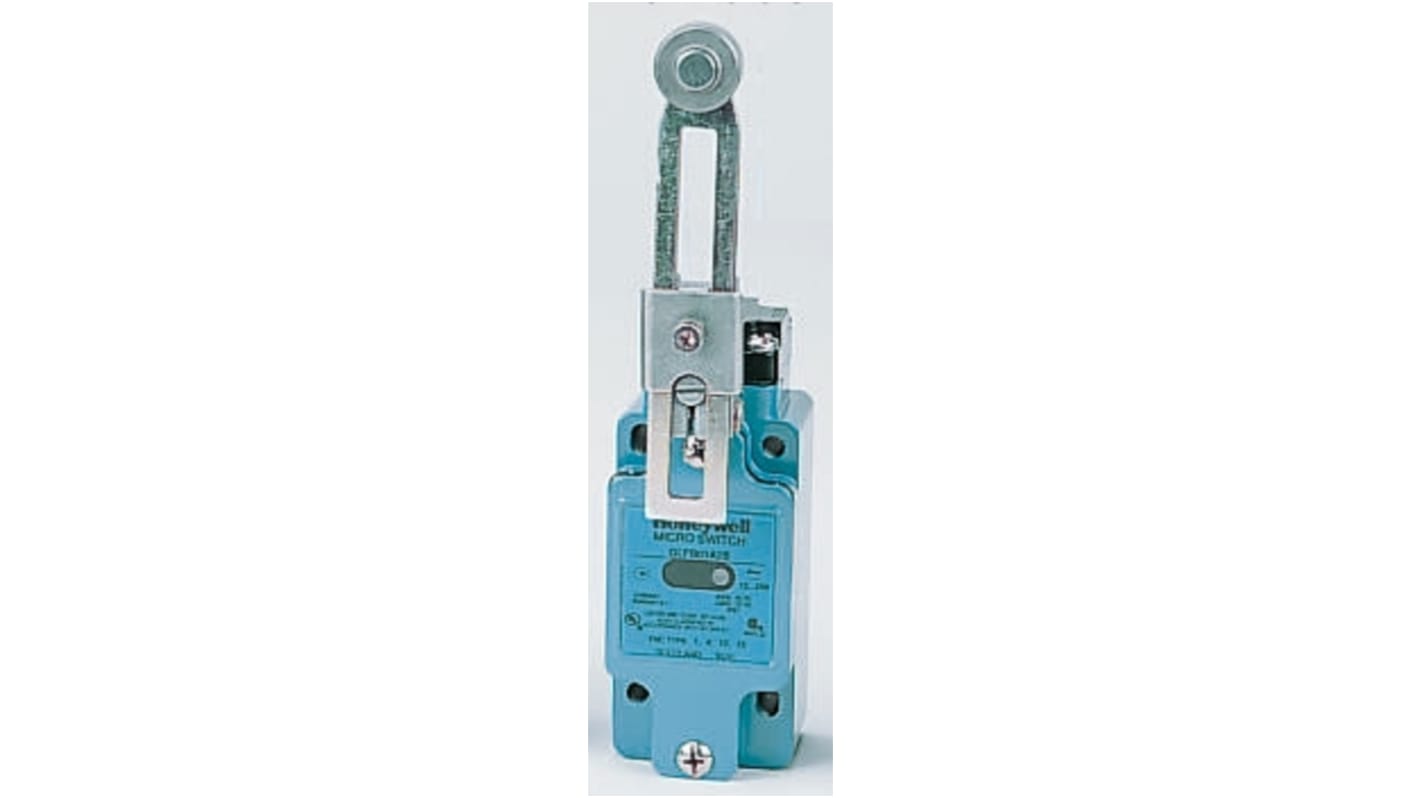

Honeywell GLF Series Adjustable Roller Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 250V ac Max, 10A
- RS Stock No.:
- 220-1968
- Mfr. Part No.:
- GLFB01A2B
- Manufacturer:
- Honeywell
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,213.28
Units | Per Unit |
1 + | MYR1,213.28 |
- RS Stock No.:
- 220-1968
- Mfr. Part No.:
- GLFB01A2B
- Manufacturer:
- Honeywell
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Series GLFB Position Switches with Indicator Light
Range of quick-breaking position switches.
This range of position switches is equipped with a LED status indicator, which is ideal in dark environments.
Accurate switching with a positive contact opening mechanism.
This range of position switches is equipped with a LED status indicator, which is ideal in dark environments.
Accurate switching with a positive contact opening mechanism.
Standards
IEC 947-5-1 and EN 60947-5-1
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Approvals
UL/ UL listed for Canada
Specifications
Attribute | Value |
---|---|
Actuator Type | Adjustable Roller Lever |
Pole and Throw Configuration | SPDT |
Normal State Configuration | NO/NC |
IP Rating | IP67 |
Maximum Current | 10A |
Housing Material | Die Cast Zinc |
Maximum AC Voltage | 250V |
Maximum DC Voltage | 250V |
Connection Type | PG13.5 |
Series | GLF |
Action Type | Snap Action |
Length | 145.8mm |
Maximum Operating Temperature | +85°C |
Width | 42mm |
Depth | 42mm |
Minimum Operating Temperature | -25°C |
Mechanical Life | 15000000Cycles |
