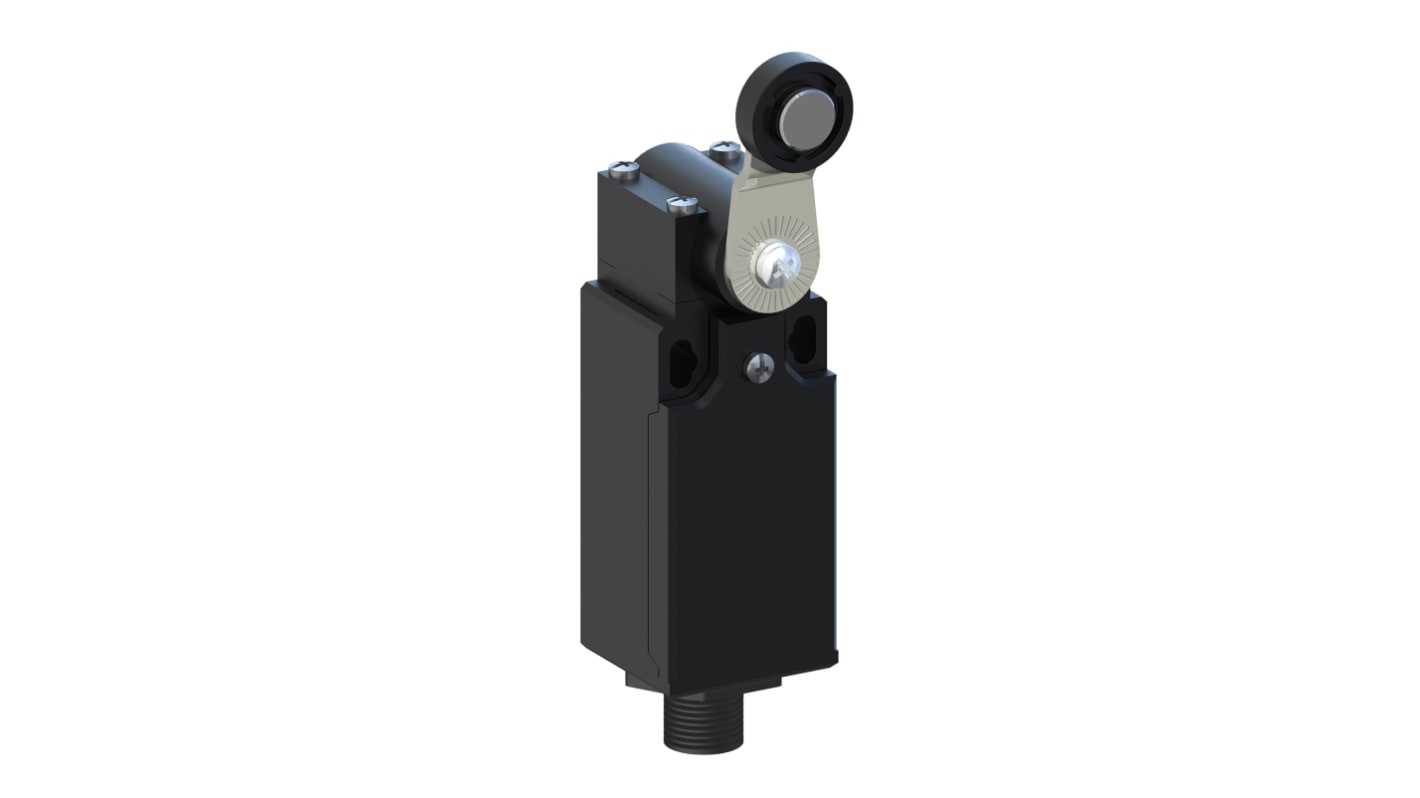

IP65 Snap Action Limit Switch Roller Lever Plastic, NC, NO, 400V

  • RS Stock No. 153-3964
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

RS M20 AP Series Limit Switches

Easy to use electromechanical limit switches offer special qualities and purpose built detection devices with characteristics such as, presence/absence, positioning and travel limit, objects passing and counting. These limit switches are made from reinforced UL-VO thermoplastic fibre-glass offering double insulation and protection of IP65.

Visible operation
Able to switch strong currents – 10 A conventional thermal current
Electrically separated contacts
Precise operating points – consistency
Immune to electromagnetic disturbances
Variety of operating heads, plain plunger, roller plunger, Roller lever
Standardized dimension to EN 50047 and EN 50041
Plastic casing to IP65
Double insulation

Double Insulated Plastic Casing IP65 Limit Switches

Approvals

IEC 947-5-1, EN 60947-5-1

Specifications
Attribute Value
Actuator Type Roller Lever
Pole and Throw Configuration DPST
Normal State Configuration NO/NC
IP Rating IP65
Maximum Current 10 A
Housing Material Plastic
Maximum AC Voltage 400V
Maximum DC Voltage 250V
Connection Type M12
Contact Type Snap Action
Terminal Type Screw
Length 30.3mm
Width 45mm
Mounting Orientation Vertical
Depth 106.5mm
Minimum Operating Temperature -25°C
Mechanical Life Minimum 15000000 Cycles
Dimensions 30.3 x 45 x 106.5 mm
Maximum Operating Temperature +70°C
Standards Met CSA C22.2, CULus Listed, EAC, EN 60529, EN 60947-1, EN 60947-5-1, EN50047, IEC 60529, IEC 60947-1, IEC 60947-5-1, UL 508
