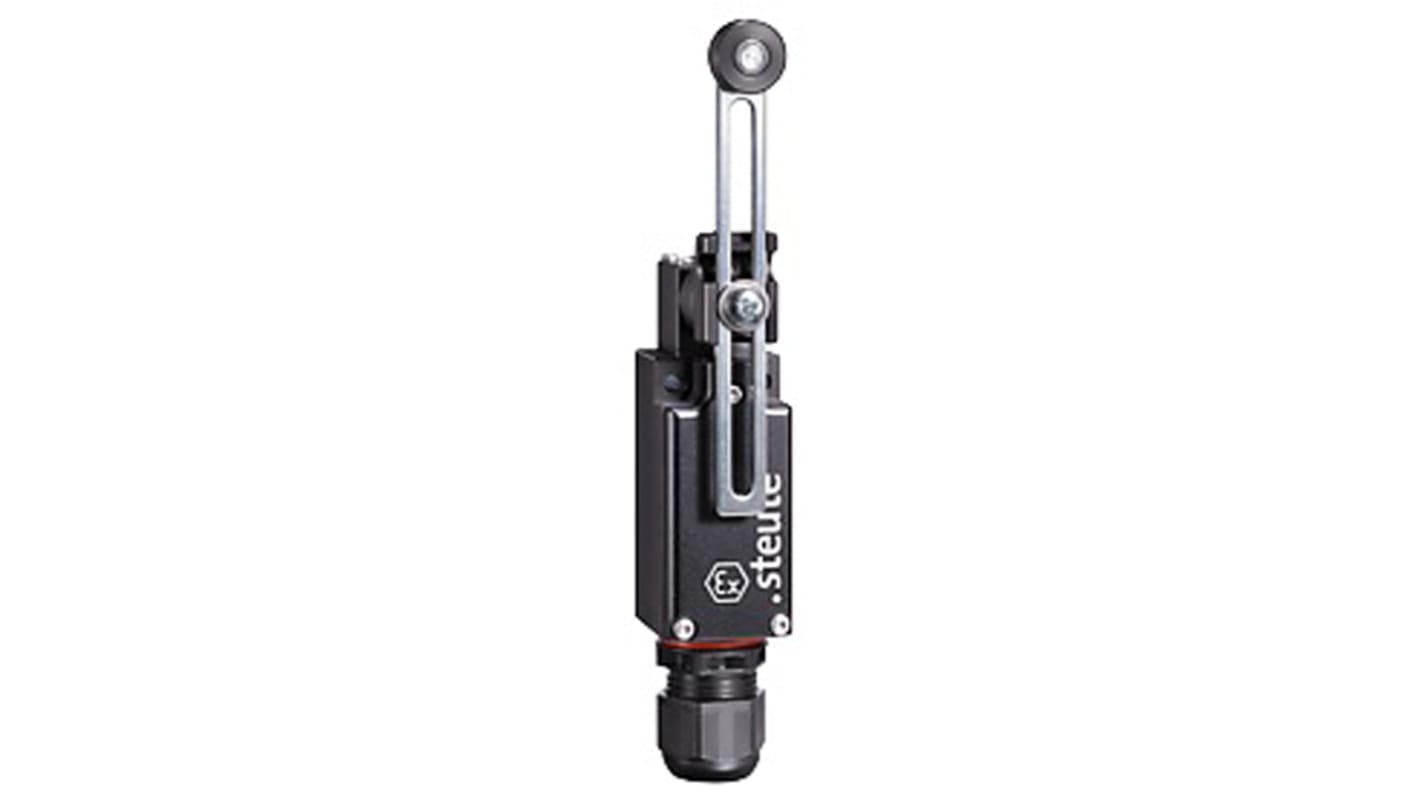

IP66, IP67, IP69 Positive Break, Slow Action Limit Switch Lever Glass-Fibre, Thermoplastic, 2NC, 400V

  • RS Stock No. 136-5918
  • Mfr. Part No. Ex ES 97 DS 02 -60 c
  • Manufacturer Steute
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

EX 97 Limit Switches

Steute Ex 97 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security. The Ex 97 limit switches feature slow or snap action, positive break NC contacts and are available with various contact configurations.

Features and Benefits

Ex zone 1 and 21 Thermoplastic enclosure, double insulated
Mounting details to EN 50047
High degree of protection IP66 / IP67 / IP69
Wide range of actuators

Supplied with

Supplied with 1 Ex "e" cable gland, M20x1.5

Specifications
Attribute Value
Actuator Type Lever
Pole and Throw Configuration DPST
Normal State Configuration 2NC
IP Rating IP66, IP67, IP69
Maximum Current 4 A
Housing Material Glass-Fibre, Thermoplastic
Maximum AC Voltage 400V
Connection Type Cable
Series Ex 97
Contact Type Positive Break, Slow Action
Terminal Type Screw
Length 787.4mm
Width 2895.6mm
Mechanical Life Minimum >1000000 operations
Dimensions 787.4 x 2895.6 x 1150.62 mm
Maximum Operating Temperature +55°C
Standards Met EAC, EN 50047, EN 60079-0, EN 60079-1, EN 60079-14, EN 60079-31, EN 60079-7, EN 60947-5-1, EN ISO 13849-1, EN ISO 14119, EX II 2D Ex tb IIIC T80 °C Db, EX II 2G Ex db eb IIC T6 Gb, Ex tb IIIC T80 °C Db, IECEx Ex db eb IIC T6 Gb
Hazardous Area Certification IECEx
Depth 1150.62mm
Minimum Operating Temperature -60°C
Mounting Orientation Vertical
1 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 2,031.54
units
Per unit
1 +
MYR2,031.54
