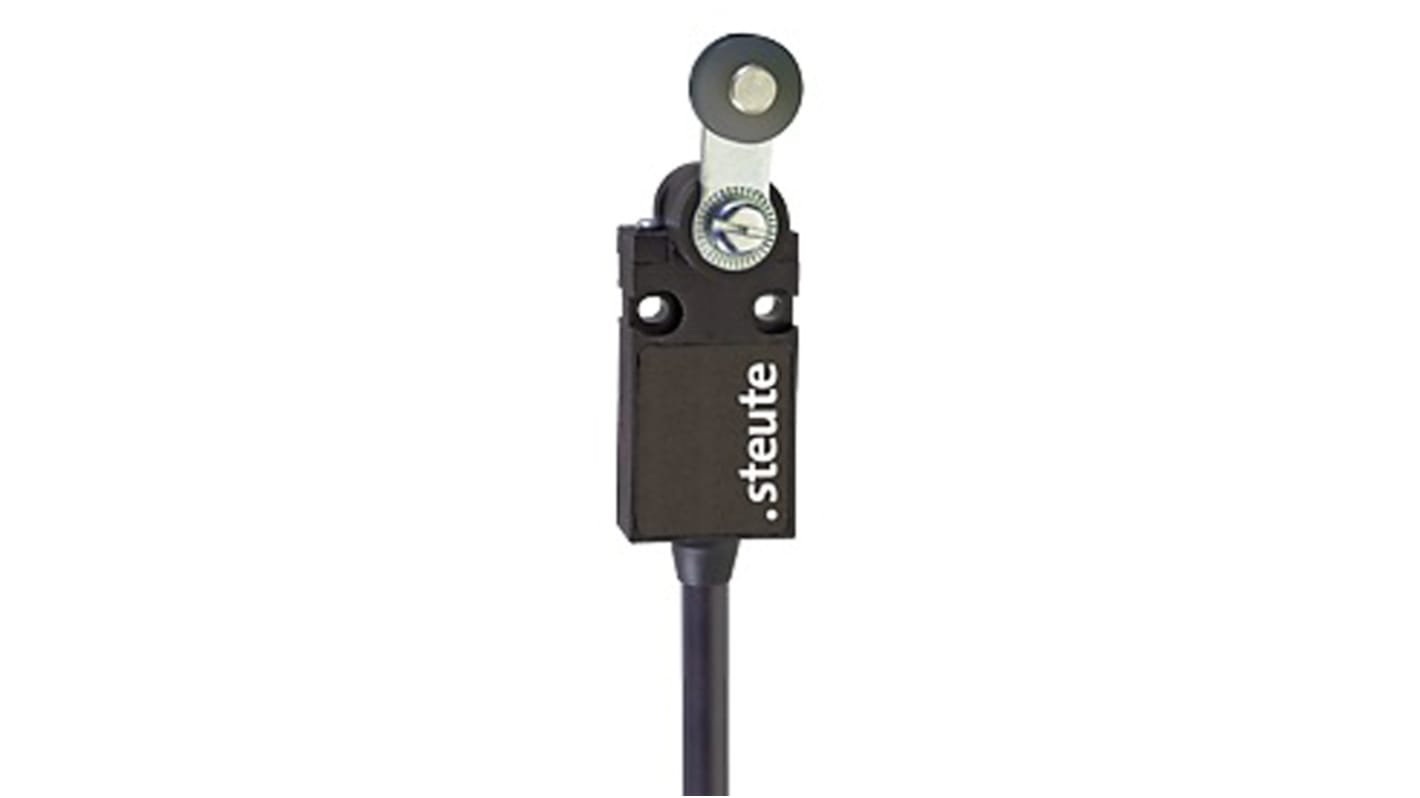

IP65 Positive Break, Slow Action Limit Switch Lever Glass-Fibre, Thermoplastic, NC/NO, 250V

  • RS Stock No. 136-5908
  • Mfr. Part No. Ex 14 D 1O/1S-5m
  • Manufacturer Steute
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

EX 14 Limit Switches

Steute Ex 14 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security. The Ex 14 limit switches feature slow action positive break NC contacts and are available with various contact configurations.

Features and Benefits

Ex zone 1 and 21 Thermoplastic enclosure, double insulated
Mounting details to EN 50047
Suitable for inline mounting
With pre-wired cable
Wide range of actuators

Specifications
Attribute Value
Actuator Type Lever
Pole and Throw Configuration DPST
Normal State Configuration NO/NC
IP Rating IP65
Maximum Current 6 A @ 250 V ac, 250 mA @ 230 V dc
Housing Material Glass-Fibre, Thermoplastic
Maximum AC Voltage 250V
Maximum DC Voltage 230V
Connection Type Cable
Series Ex 14
Contact Type Positive Break, Slow Action
Length 762mm
Width 838.2mm
Maximum Operating Temperature +75°C
Dimensions 762 x 838.2 x 2311.4 mm
Standards Met CCC, CSAus, EAC, EN 50047, EN 60079-0, EN 60079-1, EN 60079-31, EN 60947-5-1, EN ISO 13849-1, EN ISO 14119, EX II 2D Ex tb IIIC T80 °C/T95 °C Db, EX II 2G Ex db IIC T6/T5 Gb, Ex tb IIIC T80 °C/T95 °C Db, IECEx Ex db IIC T6/T5 Gb
Mechanical Life Minimum >1000000 operations
Minimum Operating Temperature -20°C
Depth 2311.4mm
Mounting Orientation Vertical
Hazardous Area Certification IECEx
10 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 745.42
units
Per unit
1 +
MYR745.42
