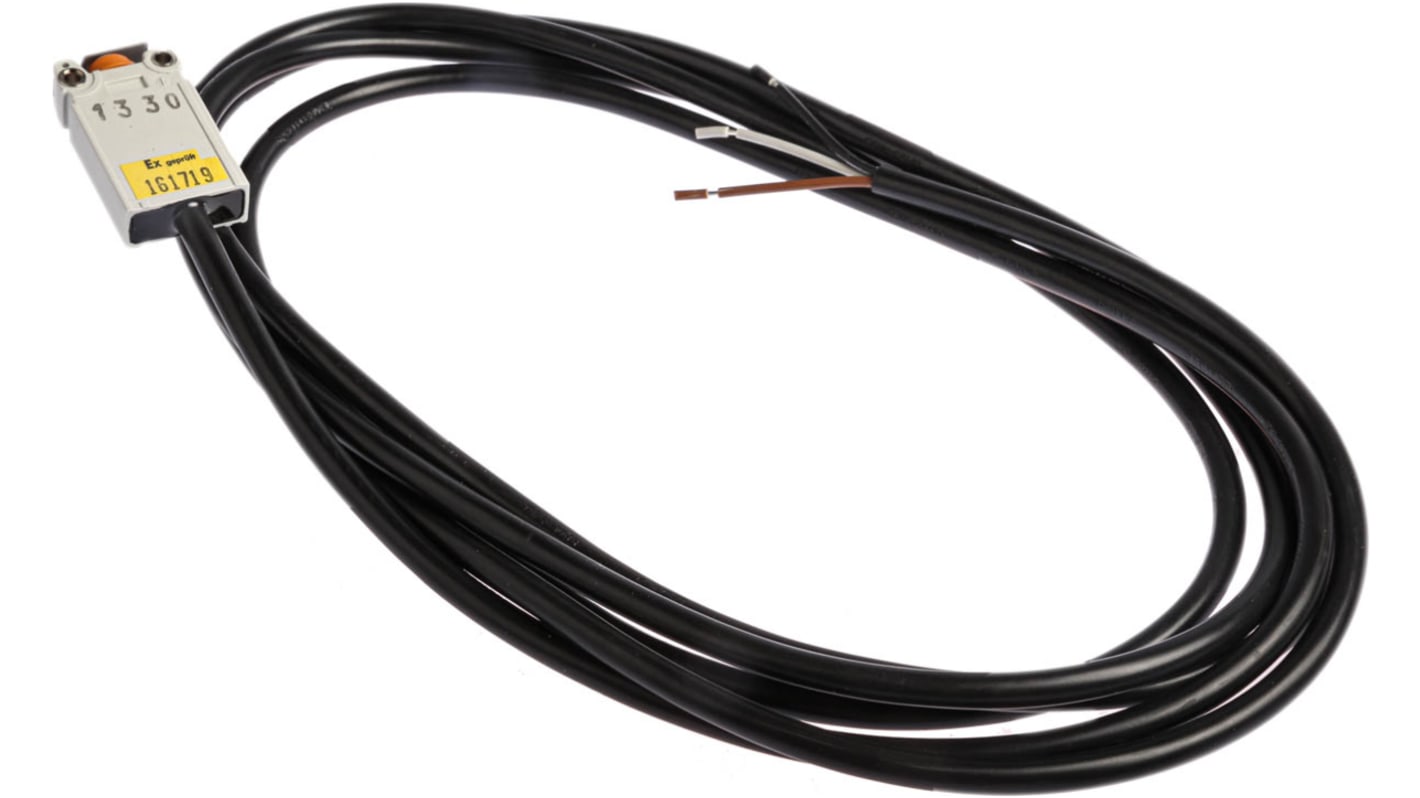

Bartec Plunger Limit Switch, NO/NC, IP66, Plastic Housing, 400V ac Max, 7A Max
- RS Stock No.:
- 742-704
- Mfr. Part No.:
- 07-2511-1330/01
- Manufacturer:
- Bartec
25 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
159 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR482.99
You pay
MYR454.21
| Units | Per Unit |
| 1 - 4 | MYR454.21 |
| 5 + | MYR373.81 |
- RS Stock No.:
- 742-704
- Mfr. Part No.:
- 07-2511-1330/01
- Manufacturer:
- Bartec
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
EEx limit switch in accordance with VDE 660 T200
EEx auxiliary switch as limit switch
For all fields of mechanical engineering in which secure and reliable signalling is essential
Installed switching element is a snap-action contact with 2 x 0.3 mm break distance and is implemented as a changeover contact
Auxiliary switch in accordance with VDE 0660 T200
3 m connecting cable
For all fields of mechanical engineering in which secure and reliable signalling is essential
Installed switching element is a snap-action contact with 2 x 0.3 mm break distance and is implemented as a changeover contact
Auxiliary switch in accordance with VDE 0660 T200
3 m connecting cable
Certificate No.
II G EEx d IIC T6
Group and Category
PTB 00ATEX 1093X
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Plunger |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 7A |
| Housing Material | Plastic |
| Maximum AC Voltage | 400V |
| Maximum DC Voltage | 250V |
| Action Type | Snap Action |
| Length | 46.2mm |
| Maximum Operating Temperature | +40°C |
| Width | 25.5mm |
| Minimum Operating Temperature | -20°C |
| Depth | 15.8mm |
| Hazardous Area Certification | ATEX |
| Mechanical Life | 2 x 1000000Cycles |
