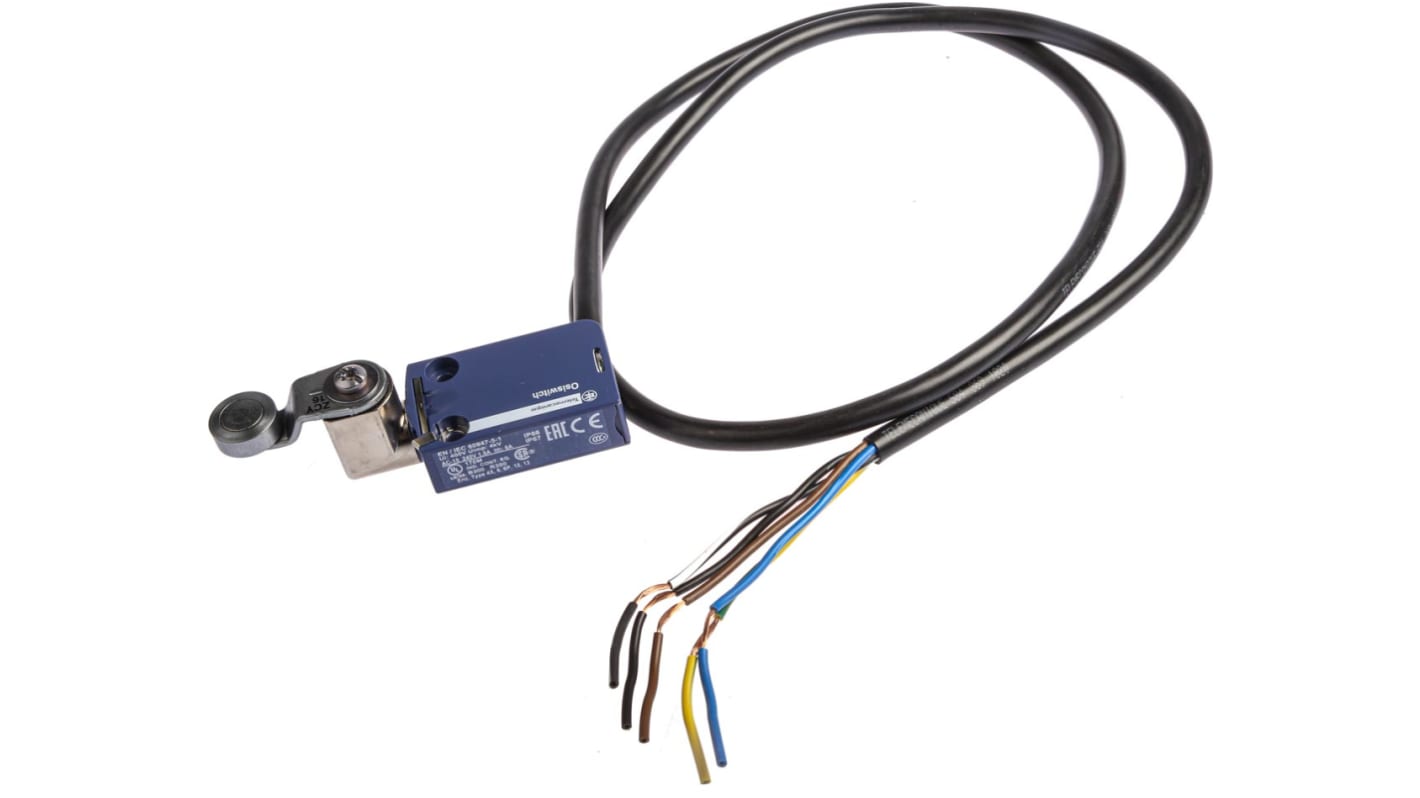

IP66, IP67, IP68 Snap Action Limit Switch Lever Zinc Alloy, NO/NC, 240V

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): ID
Product Details

Osiswitch miniature limit switches

40 % time-saving on electrical connection.
Fully interchangeable heads.
Pre-wired (1 metre).

Standards

EN50047

Specifications
Attribute Value
Actuator Type Lever
Pole and Throw Configuration DP
Normal State Configuration NO/NC
IP Rating IP66, IP67, IP68
Maximum Current 1.5 A
Housing Material Zinc Alloy
Maximum AC Voltage 240V
Maximum DC Voltage 250V
Series OsiSense XC
Contact Type Snap Action
Terminal Type Wire Lead
Length 50mm
Width 30mm
Mechanical Life Minimum 10000000 cycles
Maximum Operating Temperature +70°C
Depth 16mm
Dimensions 50 x 30 x 16 mm
Minimum Operating Temperature -25°C
16 Within 4 working day(s) (Global stock)
20 Within 4 working day(s) (Global stock)
Price Each
MYR 296.56
units
Per unit
1 +
MYR296.56
