IP66 Snap Action Limit Switch Plunger Zinc Alloy, NO/NC, 240V

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

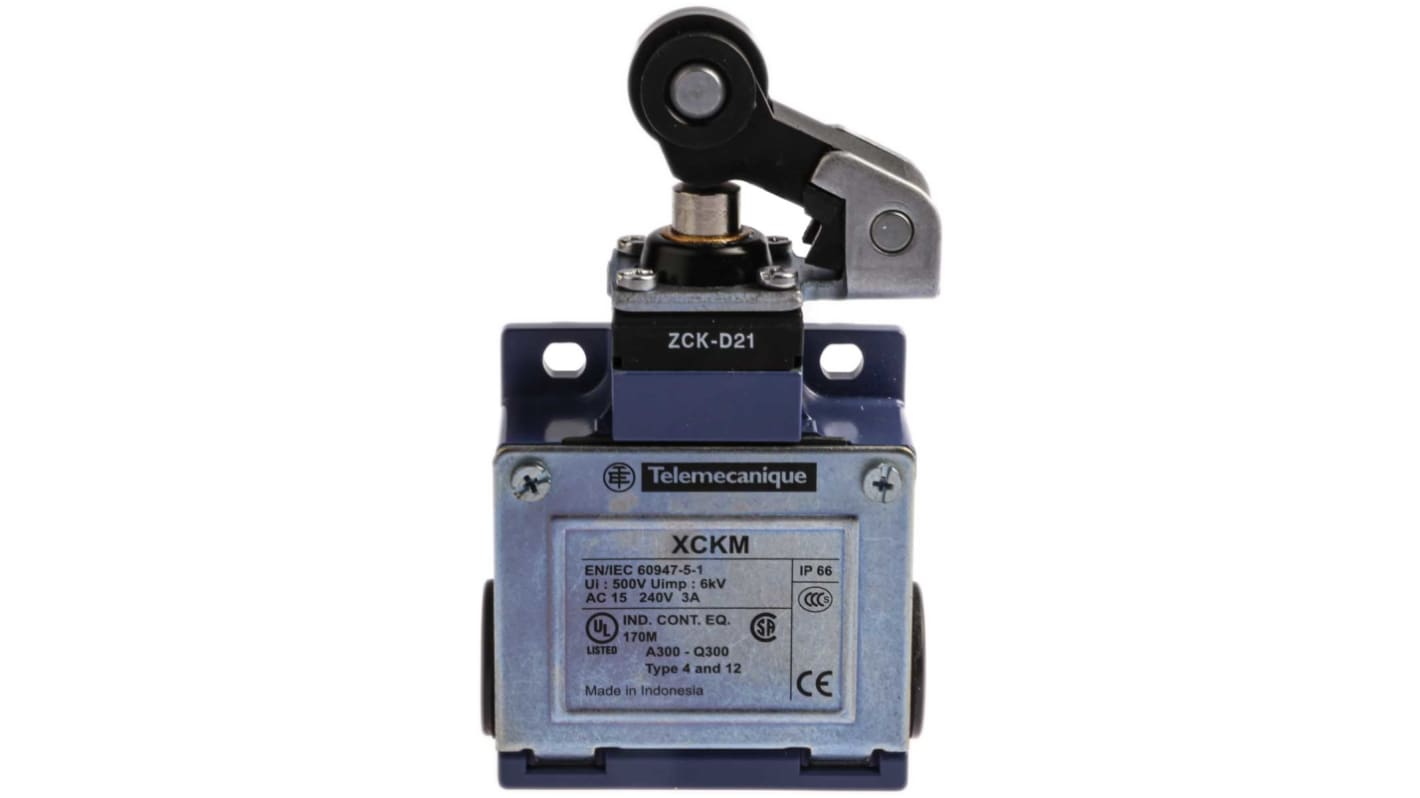

Limit Switches, Three Conduit Entry XCK-M

XCKM series limit switches.

1 N/O (aux) and 1 N/C (safety) contacts
Rating: 240 Vac, 3A
Protected to IP65

Standards

VDE0660, IEC947-5-1

Approvals

UL, CSA

//media.rs-online.com/t_line/L235975-01.gif
//media.rs-online.com/t_line/L360852-01.gif

Approvals

UL; CSA

Telemecanique, Square D & Crouzet

Specifications
Attribute Value
Actuator Type Plunger
Pole and Throw Configuration DP
Normal State Configuration NO/NC
IP Rating IP66
Maximum Current 10 A
Housing Material Zinc Alloy
Maximum AC Voltage 240V
Maximum DC Voltage 250V
Series OsiSense XC
Contact Type Snap Action
Terminal Type Screw
Length 64mm
Width 63mm
Mechanical Life Minimum 20000000 cycles
Maximum Operating Temperature +70°C
Depth 30mm
Dimensions 64 x 63 x 30 mm
Minimum Operating Temperature -25°C
8 Within 4 working day(s) (Global stock)
9 Within 4 working day(s) (Global stock)
Price Each
MYR 482.29
units
Per unit
1 +
MYR482.29
