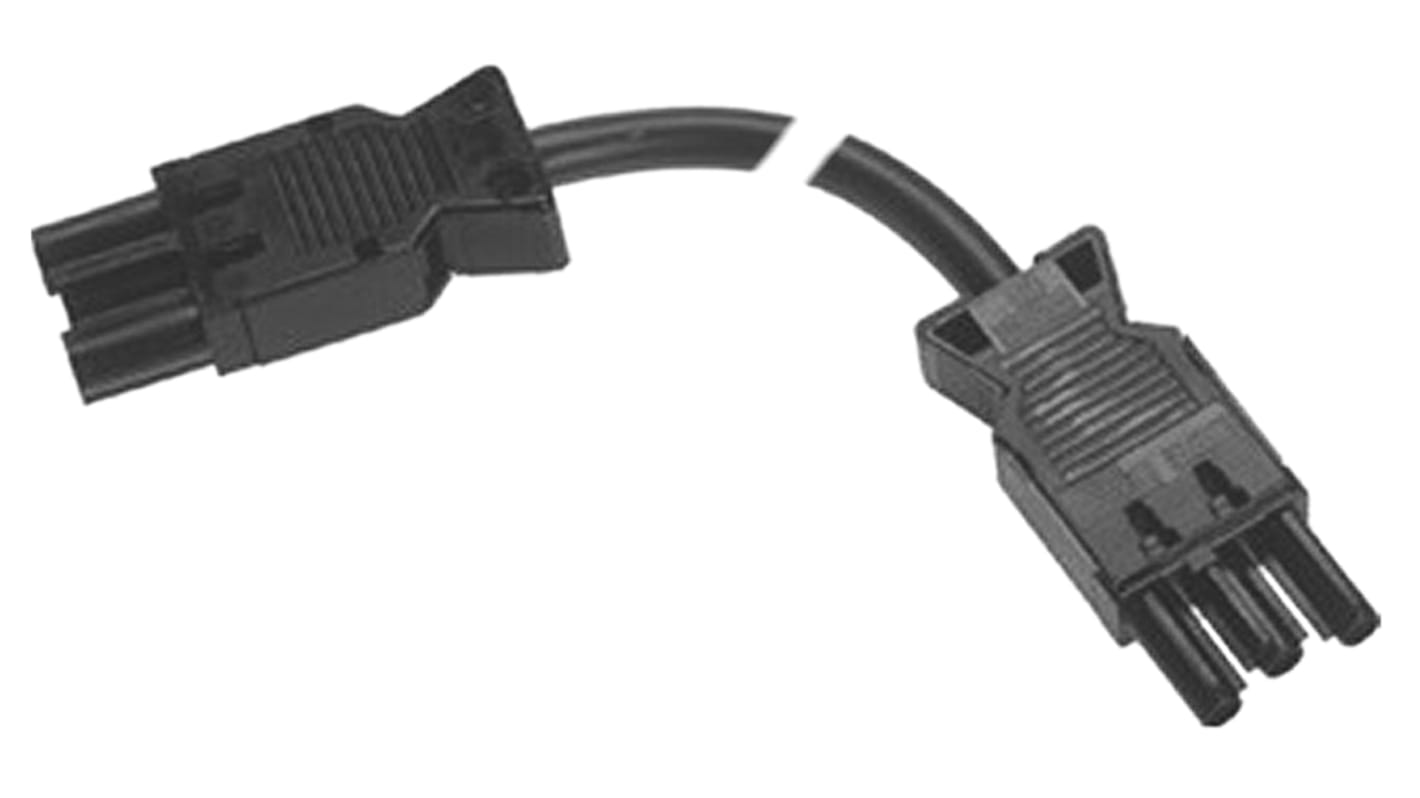

Wieland GST18i3 Series, Female to Male 3 Pole Cable Assembly with a 4m Cable, Cable Mount,with Strain Relief

  • RS Stock No. 828-5915
  • Mfr. Part No. 92.232.4000.1
  • Manufacturer Wieland
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Cordsets

GST18 cordsets in a variety of combinations and lengths
1.5mm2 flexible cable

Standards

DIN VDE 0628, EN/IEC 61535 (in draft).

GST18 Compact Connectors

The GST18 is a pluggable device connector for use in lighting and other factory-assembled equipment. Mechanical and color coding provides for a safe and easy separation of different applications, virtually eliminating mis-mating errors. An IP20 touch-safe design, a leading earth contact and an optional locking device all contribute to ensure the safest possible connections.

Specifications
Attribute Value
Pole Format 3
Series GST18I3
Gender Female to Male
Plug/Socket Plug, Socket
Colour Black
Type Cable Assembly
Mounting Type Cable Mount
Current Rating 16A
Voltage Rating 250 V
IP Rating IP20
Wire Size 1.5 mm²
Cable Length 4m
Strain Relief Yes
Contact Plating Tin
Termination Method Crimp
48 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 76.27
units
Per unit
1 - 4
MYR76.27
5 - 14
MYR70.91
15 +
MYR64.80
