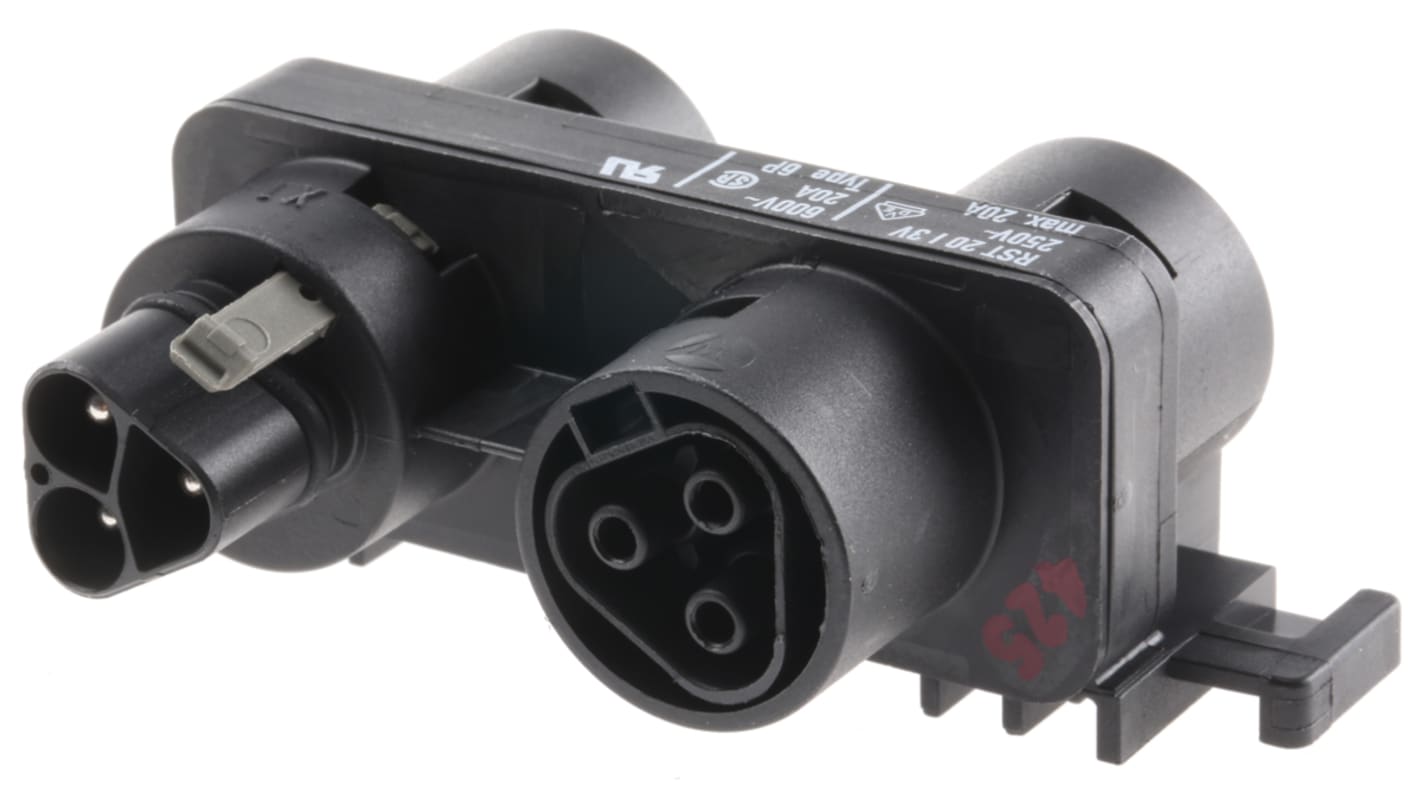

Wieland RST20i3 Series, Male to Female 3 Pole 4 Way Distribution Block, Rated At 20A, 250 V

  • RS Stock No. 483-9470
  • Mfr. Part No. 96.030.0153.1
  • Manufacturer Wieland
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Gesis® distribution blocks

Gesis® distribution blocks available with or without mounting option. Both options have 1 input x 3 pole male connector and 3 outputs x 3 pole female connector.

Features and Benefits

• The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of ∼50/120V
• Combined distribution blocks for circular connectors are H shaped with 3 poles and turned contacts, 1 input, 3 outputs
• Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
• Connectors lock together and are self-locking

Applications and Uses:

• Electrical installations
• General network applications
• Switching applications
• Multiphase systems

RST20i3 Lighting Connector

• Distribution block
• Rated current of 20A and rated voltage of 250V
• Three pole, turned contacts
• Fastening option with mounting lugs
• Black coding
• IP66/68 degree of protection
• Dimensions: length 55.5 mm, width 85.8 mm, height 31.3 mm

Gesis RST Connector Range

Specifications
Attribute Value
Pole Format 3
Series RST20i3
Gender Male to Female
Number of Ways 4
Plug/Socket Plug, Socket
Colour Black
Type Distribution Block
Mounting Type Panel Mount
Current Rating 20A
Voltage Rating 250 V
IP Rating IP68
Contact Plating Silver
Diameter 34.7mm
Contact Material CuZn
62 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 60.59
units
Per unit
1 - 14
MYR60.59
15 - 49
MYR56.36
50 +
MYR53.83
