TE Connectivity Female 2 Pole 2 Way Wire to Wire, Cable Mount, Rated At 4A, 600 V ac/dc

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

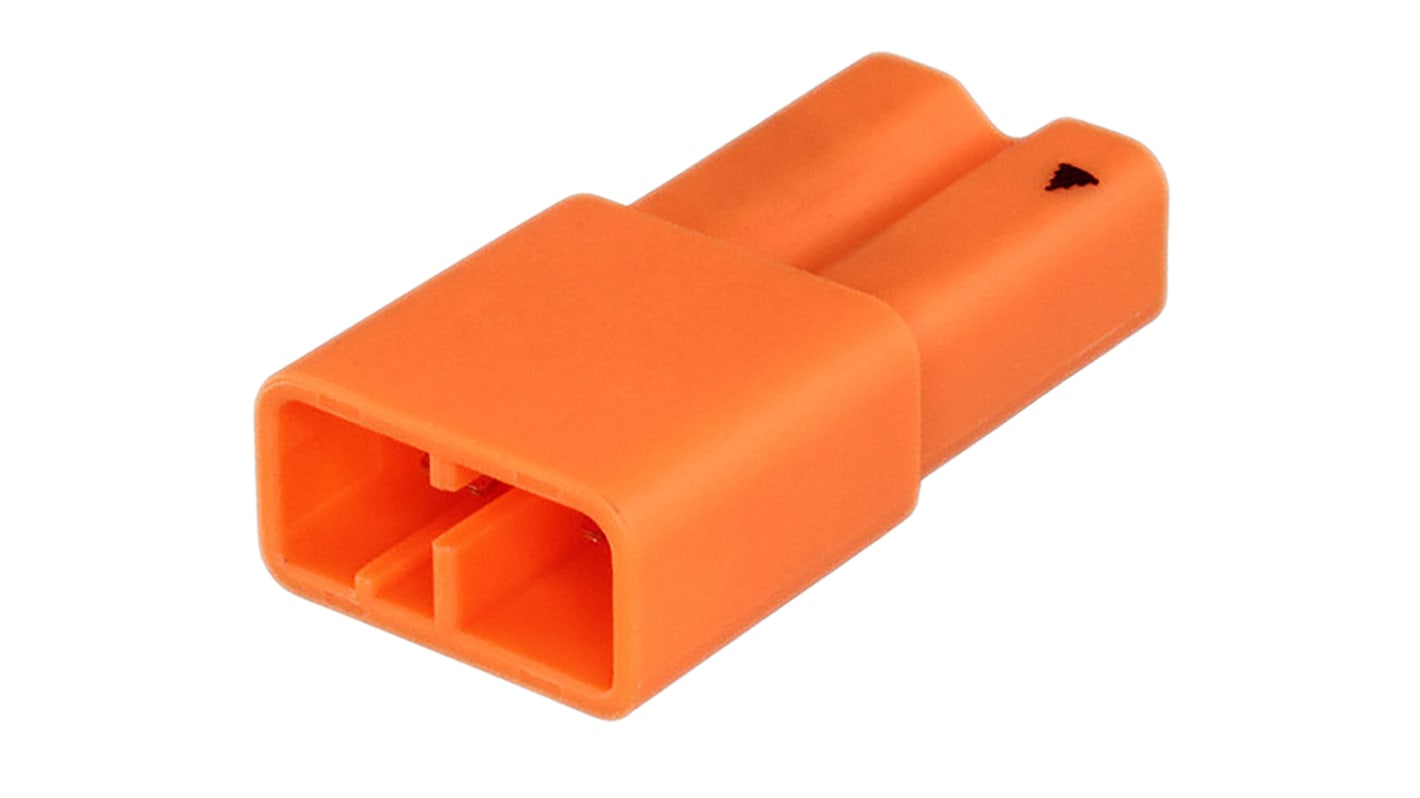

TE Connectivity Light-n-Lok Ballast Connectors

From TE Connectivity, this light-n-lok connector is for wire-to-wire fluorescent ballast connections. The connectors are designed for hot plugging, allowing for safer field servicing. They also feature poke-in wire termination for quick and easy tool-less installation.

Light-n-lok connectors are ideal for commercial lighting applications.

A two way plug adaptor for in-line connection is also available (see stock no.122-8731)

Note

Connectors are supplied with contacts

TE Connectivity Light-n-Lok

Specifications
Attribute Value
Pole Format 2
Gender Female
Number of Ways 2
Plug/Socket Socket
Colour Orange
Type Wire to Wire
Mounting Type Cable Mount
Current Rating 4A
Voltage Rating 600 V ac/dc
Wire Size 18 → 22 AWG
Contact Plating Tin
Termination Method Push In
Contact Material Copper Alloy
22500 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 500)
MYR 1.078
units
Per unit
Per Bag*
500 +
MYR1.078
MYR539.00
*price indicative
