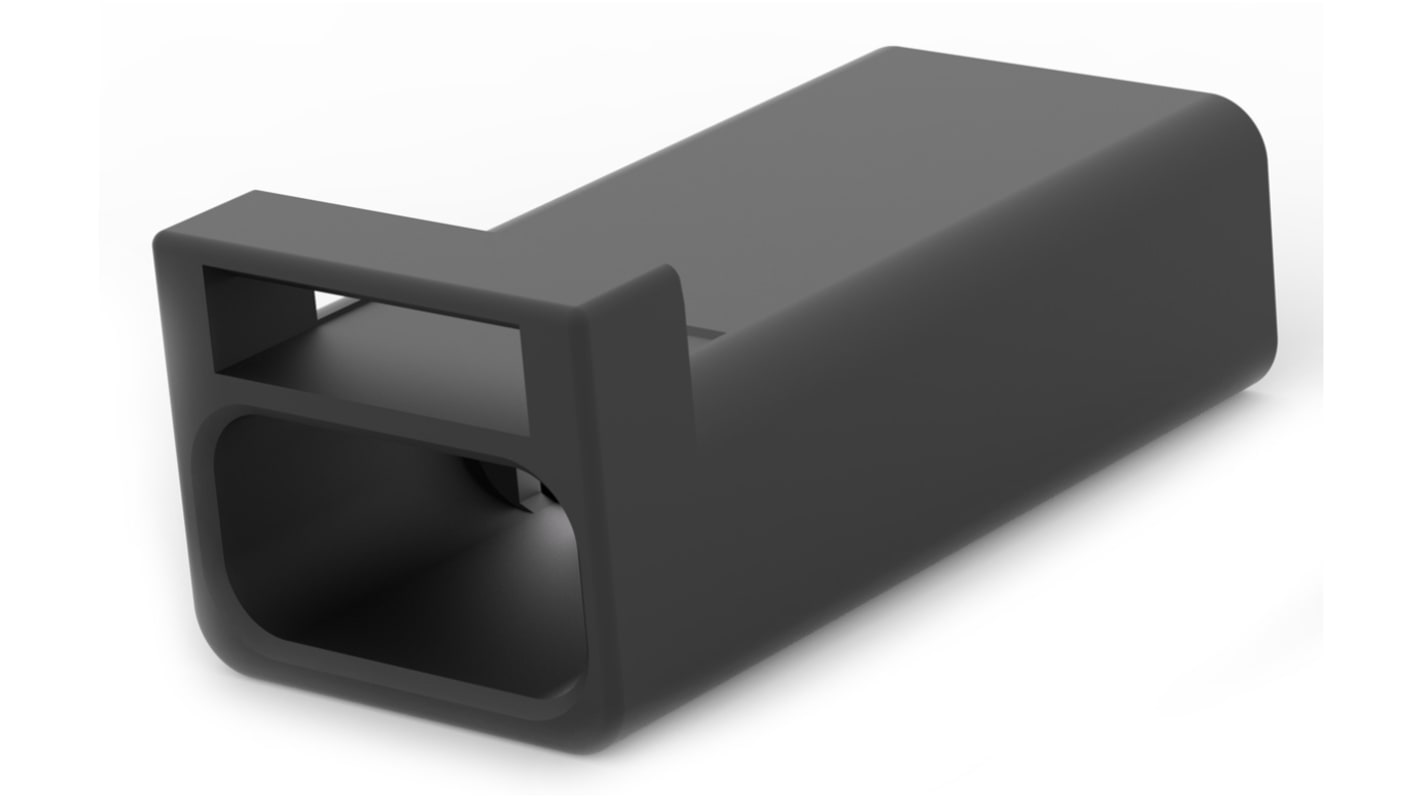

TE Connectivity SlimSeal Connector Miniature Series, Female 3 Pole 3 Way Miniature, Cable Mount, Rated At 5A, 400 V ac

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity SlimSeal IP67 Cable Mount Sockets

From TE Connectivity, a series of miniature sealed wire to wire connectors from the Slimseal family. These IP67 compact connectors have a tough thermoplastic housing and a rubber seal making them suitable for the harshest environments. The wire to wire sealed connectors feature a press to release spring latch ensuring a secure mating function. The male and female connectors are available in two and three pole formats and three different colours for easy identification.

Features and Benefits

• Compact design
• Sealed to IP67 when mated
• Easy assembly identification with three colour options
• Pre-assembled seals saving valuable assembly time
• Press to release spring latch system
• Wide operating temperature range -40°C to +105°C

Applications

• Outdoor lighting
• Commercial refrigeration lighting
• HVAC equipment
• Kitchen appliances

Lighting Connectors

Specifications
Attribute Value
Pole Format 3
Series SlimSeal Connector Miniature
Gender Female
Number of Ways 3
Plug/Socket Socket
Colour Black
Type Miniature
Mounting Type Cable Mount
Current Rating 5A
Voltage Rating 400 V ac
IP Rating IP67
Wire Size 22 → 18 AWG
Contact Plating Tin
Termination Method Crimp
Contact Material Copper Alloy
Temporarily out of stock - back order for despatch 30/01/2020, delivery within 4 working days from despatch date
Price Each (In a Pack of 5)
MYR 3.088
units
Per unit
Per Pack*
5 - 20
MYR3.088
MYR15.44
25 - 45
MYR3.026
MYR15.13
50 - 95
MYR2.96
MYR14.80
100 +
MYR2.874
MYR14.37
*price indicative
