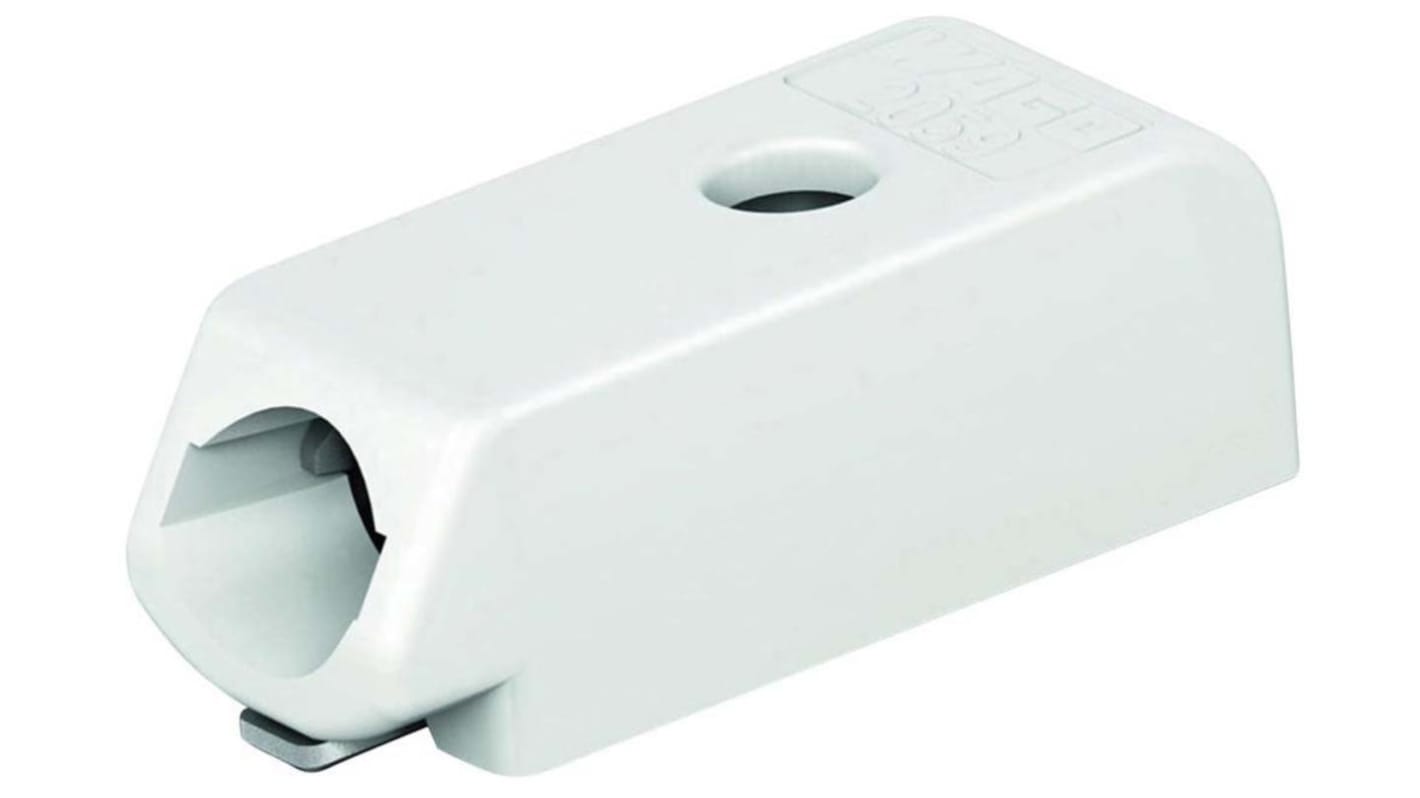

Wago 2059 Series PCB Terminal Block, 1-Pole, Female, 1-Way, PCB Mount, 3A
- RS Stock No.:
- 126-8950
- Mfr. Part No.:
- 2059-301/998-403
- Manufacturer:
- Wago
2080 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR3.506
| Units | Per Unit | Per Pack* |
| 10 - 40 | MYR3.506 | MYR35.06 |
| 50 - 90 | MYR3.432 | MYR34.32 |
| 100 + | MYR3.329 | MYR33.29 |
| *price indicative | ||
- RS Stock No.:
- 126-8950
- Mfr. Part No.:
- 2059-301/998-403
- Manufacturer:
- Wago
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Wago Terminal Block Tape and Reel Series 2059
The 2059 Series from Wago, with its combination of flat design and wide range of potential uses, completely covers the functionality demands. A compact and flat printed circuit board connection is required to achieve the most uniform light distribution, while minimising shadowing.
Featues and Benefits
• Low profile of just 2.7 mm
• Pin spacing: 3 mm
• Terminates solid conductors from 26 AWG to 22 AWG (0.14 – 0.34 mm²)
• Direct push in of solid conductors
• Easy conductor removal via operating tool
• Available in 1-, 2- and 3-pole configurations
• Group arrangement is possible without losing any poles
• Pin spacing: 3 mm
• Terminates solid conductors from 26 AWG to 22 AWG (0.14 – 0.34 mm²)
• Direct push in of solid conductors
• Easy conductor removal via operating tool
• Available in 1-, 2- and 3-pole configurations
• Group arrangement is possible without losing any poles
Wago PCB Terminal Blocks
Specifications
Attribute | Value |
|---|---|
| Pole Format | 1 |
| Series | 2059 |
| Gender | Female |
| Number of Ways | 1 |
| Plug/Socket | Socket |
| Colour | White |
| Type | PCB Terminal Block |
| Mounting Type | PCB Mount |
| Current Rating | 3A |
| Voltage Rating | 600 V |
| Wire Size | 26 → 22 AWG |
| Contact Material | Copper Alloy |
| Termination Method | Push-In Wire |
| Contact Plating | Tin |
