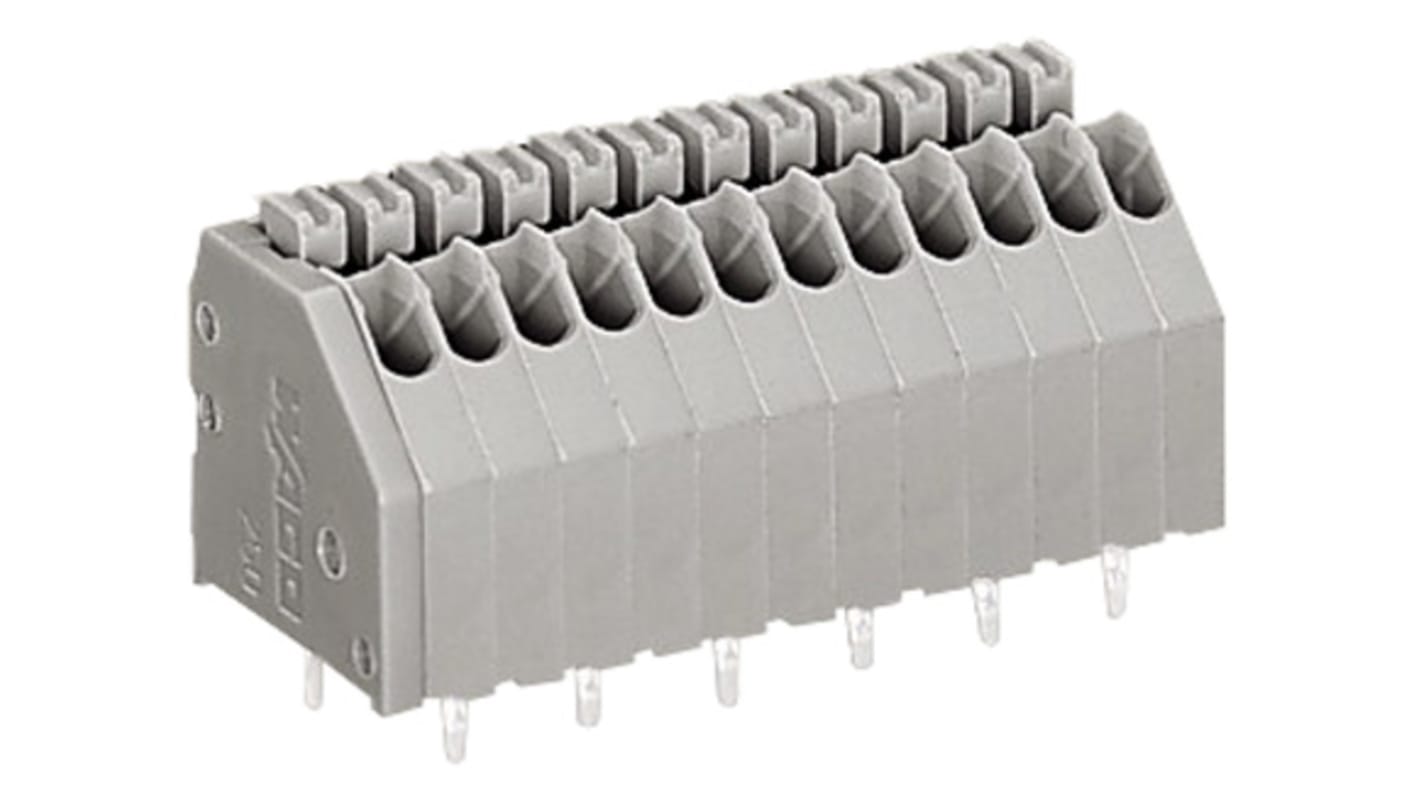

Wago 250 Series, Female 12 Pole 12 Way PCB Terminal Strip, PCB Mount

  • RS Stock No. 126-8910
  • Mfr. Part No. 250-412
  • Manufacturer Wago
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Wago Terminal Strip with Pushbuttons, 2.5 mm Pitch

Wago offer this range of PCB Terminal Strips with push buttons and tin-plated contact. With a pin spacing of 2.5 mm

Features and Benefits

• Compact terminal strips with push buttons
• Simple, push in terminations of solid and ferruled conductors
• Termination/removal of fine-stranded conductors via push buttons
• 45° conductor entry angle provides easy, space-saving wiring

Wago PCB Terminal Blocks

Specifications
Attribute Value
Pole Format 12
Series 250
Gender Female
Number of Ways 12
Plug/Socket Socket
Colour Grey
Type PCB Terminal Strip
Mounting Type PCB Mount
Current Rating 2 (CSA) A, 4 (IEC/EN 60664-1) A, 5 (UL) A
Voltage Rating 320 V
Wire Size 24 → 20 AWG
Contact Material Copper Alloy
Termination Method Push-In Cage Clamp
Contact Plating Tin
25 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 10.016
units
Per unit
Per Pack*
5 - 20
MYR10.016
MYR50.08
25 - 45
MYR9.706
MYR48.53
50 +
MYR9.326
MYR46.63
*price indicative
