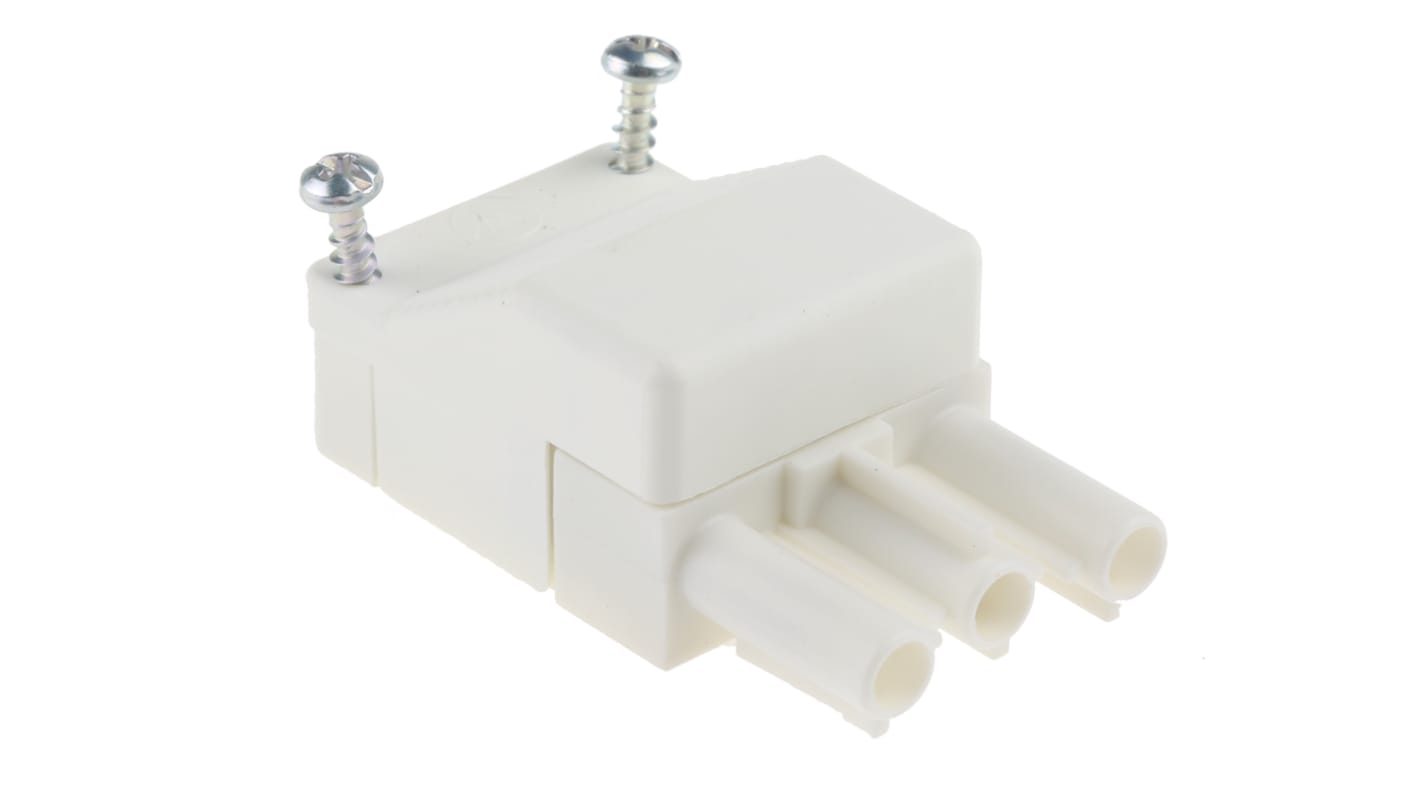

Wieland, ST18 Male 3 Pole Connector, with Strain Relief, Rated At 16A, 250 V

  • RS Stock No. 235-565
  • Mfr. Part No. 93.732.3350.0
  • Manufacturer Wieland
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

ST18 Cable Mount Plugs and Sockets

Three pole male and female connectors available as standard (single screw terminal), standard with cable strain relief (single cable diameter 6.5 - 8.3mm), standard with dual strain relief (two round cables 4.5 - 10mm or one flat cable) or double screw with dual strain relief (houses two separate screw terminals so that two cables may be terminated on one pole - ideal for lightchains, jumper connections or additional branches). Strain relief types include top cover.

Approvals

UL listed, CSA certified, OVE, SEV, N, UL, FI, VDE

ST 18/ST 16 Compact Connectors

This versatile connector range is ideal for general wiring distribution but is especially suited to lighting applications. For new installations or rewiring existing layouts this modular, flexible design offers an efficient and space saving solution. Plugs and sockets of various types enable a wide range of configuration. Other applications include office wiring, shop displays and exhibition stand wiring. Contacts are polarised and shrouded, the leading earth contact making first and breaking last.

Specifications
Attribute Value
Pole Format 3
Series ST18
Gender Male
Plug/Socket Plug
Colour White
Type Connector
Current Rating 16A
Voltage Rating 250 V
IP Rating IP20
Wire Size 2.5 mm²
Strain Relief Yes
Contact Plating Tin
Termination Method Screw Down
Contact Material Brass
355 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 16.798
units
Per unit
Per Pack*
5 - 50
MYR16.798
MYR83.99
55 - 95
MYR16.248
MYR81.24
100 +
MYR15.882
MYR79.41
*price indicative
