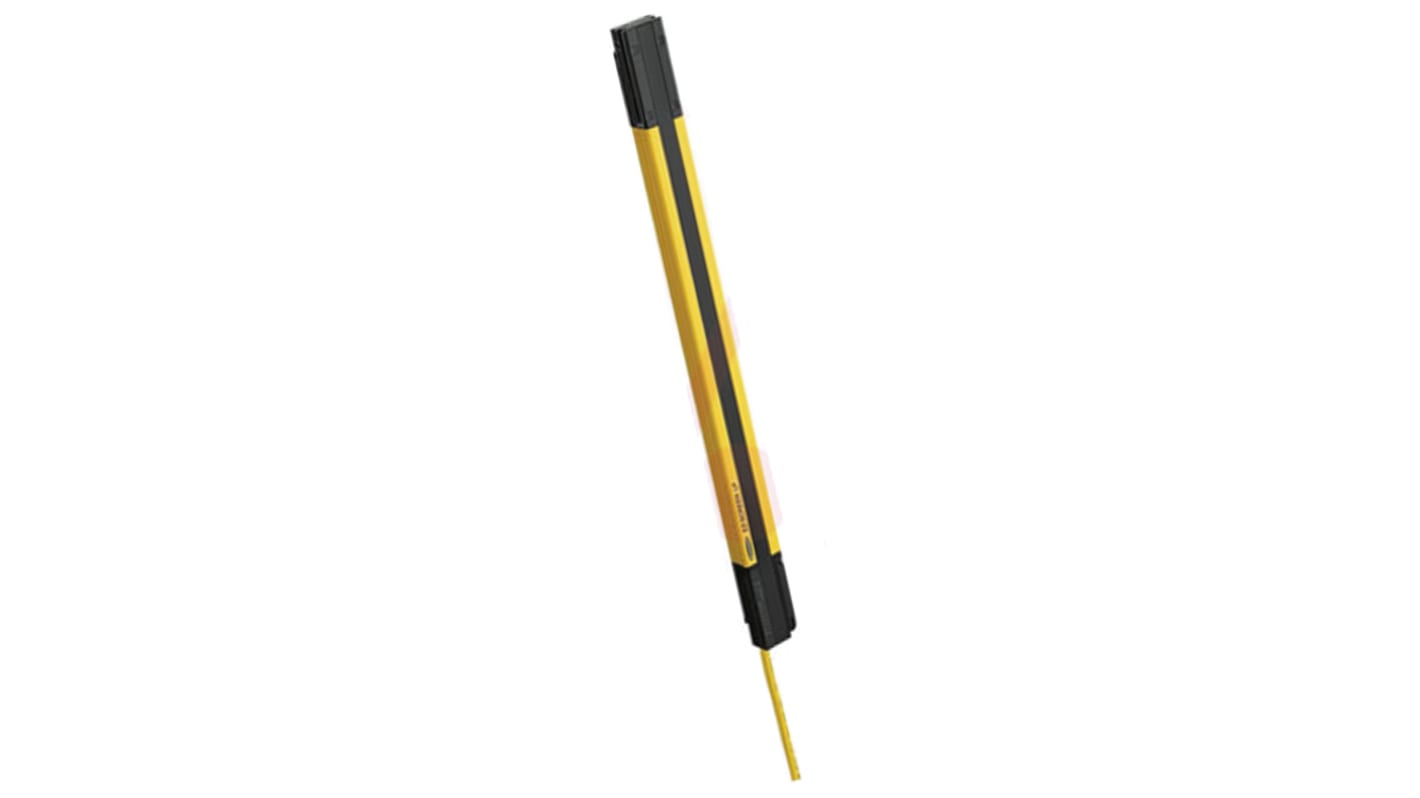

SLPP Light Curtain, Sender & Receiver, 28 Beams, 25mm Resolution

  • RS Stock No. 840-2873
  • Mfr. Part No. SLPP25-550P88
  • Manufacturer Banner
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Turck EZ-SCREEN SLPK/ SLPP Series Light Curtain

Turck EZ-SCREEN series of Light Barriers provide the user with a premium & versatile safety system. Thanks to the compact profile of the EZ-SCREEN series and comprehensive range of mounting options, this series can be used in a comprehensive range of applications and environments. Featuring an intuitive DIP switch configuration system, there is no timely set up procedure and can be easily changed depending on the requirements

Extremely fast response time, up to 8 Milliseconds for applications where speed is critical
Unique first and last beam positioning ensures continuous sensing, coupled with the supplied side-mounted brackets allow no "Dead Zone" while in operation
Various detection ranges offered, ranging from 150 - 1350mm
Various plating finishes are available for use within specific environments, such as nickel-plated housings for ESD requirements, powder coated "Safety" yellow and clear anodized aluminium
Comes with rich requirement approvals, such as cULus NIPF, CE certified to Type 4, Category 4PLe & SIL 3
Exceeds OSHA/ANSI Control Reliability requirements for premium approval

Note

Not sure of the configuration required? Then why not take a look at the EZ-SCREEN Light Curtain Kits, RS Stock No's 840-2918
840-2912

Light Curtain

Specifications
Attribute Value
Series SLPP
Beam Resolution 25mm
Component Type Receiver, Sender
Safety Type 4
SIL IEC 61508 3
PL EN ISO 13849-1 E
Number of Beams 28
Protective Height 550mm
Minimum Scanning Distance 0.1m
Maximum Scanning Distance 7m
Maximum Response Time 11 ms
Supply Voltage 24 V dc
Application Body
Width 28mm
Length 605mm
Dimensions 605 x 28 x 26 mm
Height 26mm
Terminal Type 8-Pin M12 Connector
Features EDM, Fixed Blanking, Floating Blanking, Muting
Temporarily out of stock - back order for despatch 15/07/2020, delivery within 4 working days from despatch date
Price Each
MYR 10,169.55
units
Per unit
1 +
MYR10,169.55
