Banner SGS Series Light Curtain, Sender & Receiver, 3 Beam(s), 400mm Resolution
- RS Stock No.:
- 182-9532
- Mfr. Part No.:
- SGSXP3-400Q88
- Manufacturer:
- Banner
Temporarily out of stock - back order for despatch 25/06/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR7,836.34
| Units | Per Unit |
| 1 + | MYR7,836.34 |
- RS Stock No.:
- 182-9532
- Mfr. Part No.:
- SGSXP3-400Q88
- Manufacturer:
- Banner
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details

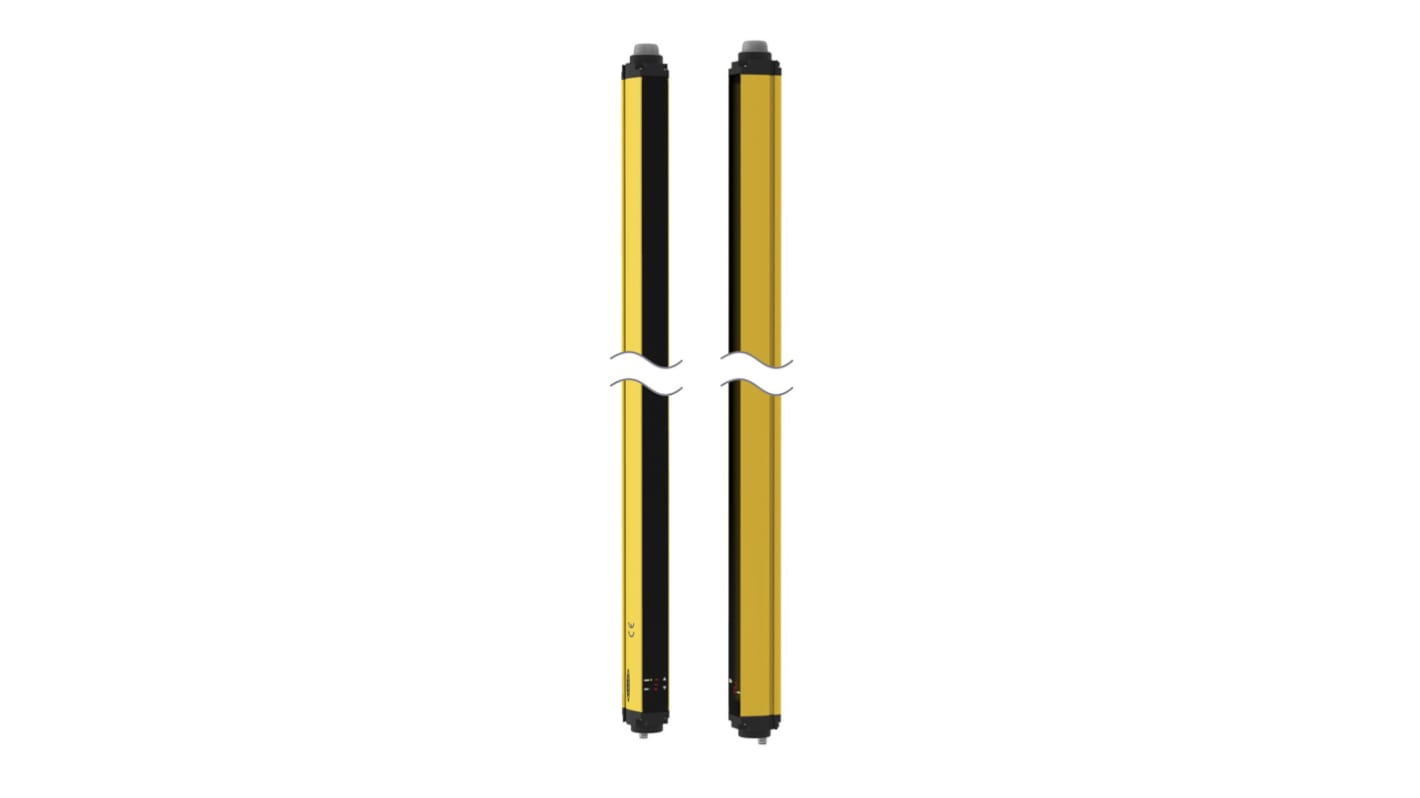

The Banner safety grid system light curtain sender and receiver has 3 beams and 400mm of resolution.
Auto/Manual Start/Restart
EDM
Mounting Hardware Ordered Separately
Scan Codes
EDM
Mounting Hardware Ordered Separately
Scan Codes
Specifications
Attribute | Value |
|---|---|
| Series | SGS |
| Beam Resolution | 400mm |
| Component Type | Emitter, Receiver |
| SIL IEC 61508 | 3 |
| PL EN ISO 13849-1 | e |
| Number of Beams | 3 |
| Protective Height | 800mm |
| Minimum Scanning Distance | 6m |
| Maximum Scanning Distance | 60m |
| Maximum Response Time | 22 ms |
| Length | 906.35mm |
| Supply Voltage | 24 V dc |
| Height | 56.9mm |
| Terminal Type | 8-Pin Quick Disconnect |
| Dimensions | 906.35 x 52 x 56.9 mm |
| Application | Area |
| Features | Auto/Manual Start/Restart, EDM, Mounting Hardware Ordered Separately, Scan Codes |
| Width | 52mm |
