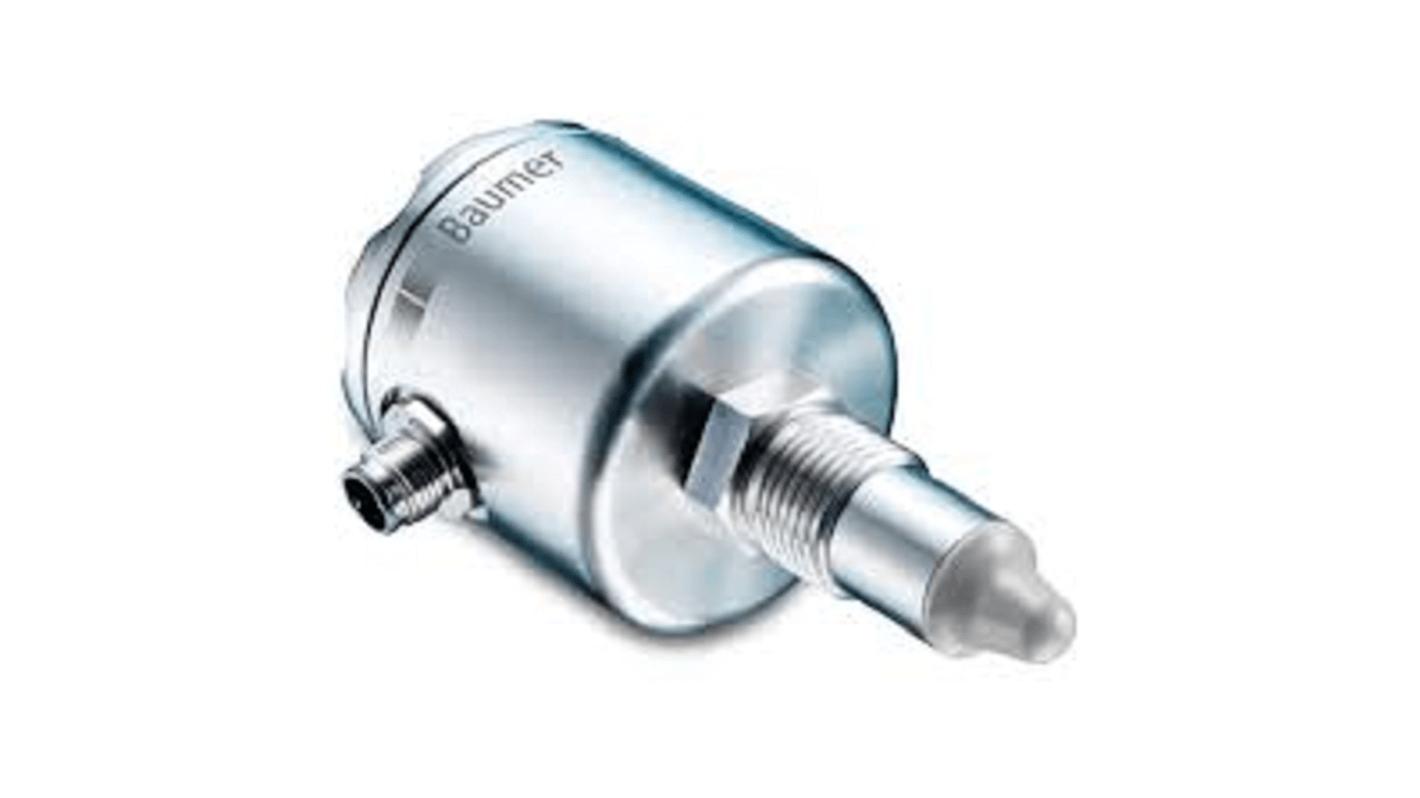

Baumer LFFS Series Level Switch Level Switch, PNP Output, G1/2 Hygienic, Stainless Steel Body
- RS Stock No.:
- 210-0693
- Mfr. Part No.:
- LFFS-034.0
- Manufacturer:
- Baumer
Temporarily out of stock - back order for despatch 11/06/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR3,906.44
| Units | Per Unit |
| 1 + | MYR3,906.44 |
- RS Stock No.:
- 210-0693
- Mfr. Part No.:
- LFFS-034.0
- Manufacturer:
- Baumer
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
The Baumer point level detection based on frequency sweep technology for high-temperature hygienic application. It process temperature up to 200 °C and housing design with 360° status indicator for hygienic and industrial application. Its used G 1/2 A hygienic, sliding connection which length is 250 mm
Operating temperature range -40 to 85 °C
Degree of protection IP 67
Degree of protection IP 67
Specifications
Attribute | Value |
|---|---|
| Device Type | Level Switch |
| Mounting Type | G1/2 Hygienic |
| Switch Output | PNP |
| Body Material | Stainless Steel |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Maximum DC Voltage | 36V |
| Maximum Current | 35mA |
| Maximum Pressure | 16bar |
| For Use With | Liquids, solids, granules, pastes |
| Series | LFFS |
| Current Rating | 50mA |
