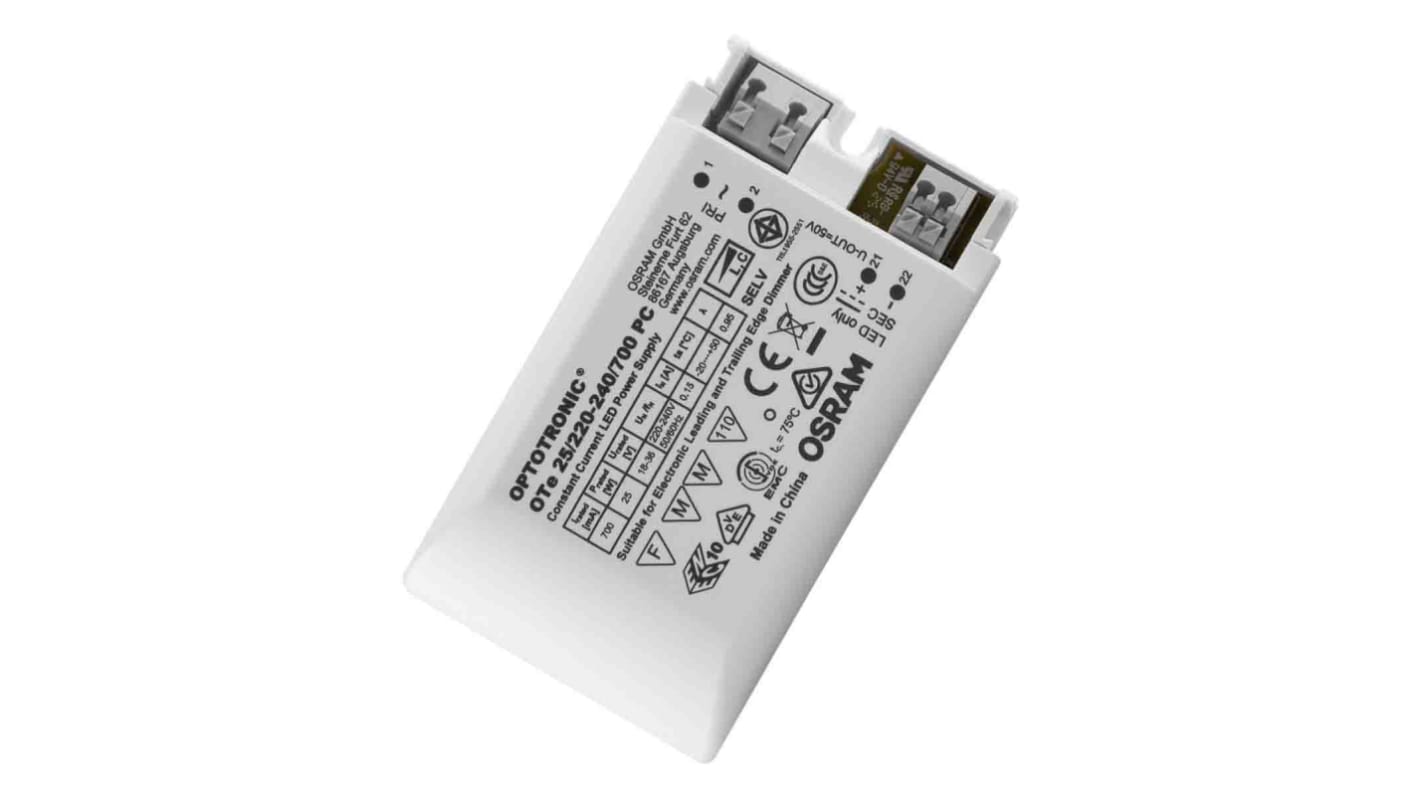

Osram OTE 25/220-240/700 PC, Constant Current Leading Edge LED Driver Module 25W 18 → 36V 700mA

  • RS Stock No. 893-0577
  • Mfr. Part No. OTE 25/220-240/700 PC
  • Manufacturer Osram
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

CC Power Supplies with Phasecut

The PhaseCut family of constant current dimmable LED drivers from Osram are designed for indoor applications. They come in a very compact housing which makes them ideal for applications where space is limited. The PhaseCut CC power supplies are compatible with most leading-edge and trailing-edge phase dimmers.
Their PhaseCut functionality, also known as phase control (PC), is a form of power control through pulse-width modulation (PWM).
The E-style clamp can be ordered separately for independent mounting.

Note

Clamp available separately and can be purchased by visiting RS stock 893-0524

Specifications
Attribute Value
Input Voltage 198 → 264 V ac
Output Voltage 18 → 36V
Operation Constant Current
Output Current 700mA
Maximum Output Power 25W
Dimming Operation Leading Edge
AC or DC Input Voltage Ac
IP Rating IP20
Configuration Sealed
Number of Outputs 1
Output 18 → 36 V @ 700 mA
Primary Type AC-DC
Voltage Rating 198 → 264V ac
Power Dissipation 4.4W
Standards Met CB, CE, CISPR 15, ENEC 10, IEC 61000-3-2, IEC 61000-3-3, IEC 61347-1, IEC 61347-2-13, IEC 61547, IEC 62384, VDE
18 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 54.86
units
Per unit
1 - 9
MYR54.86
10 - 49
MYR52.34
50 +
MYR51.81
