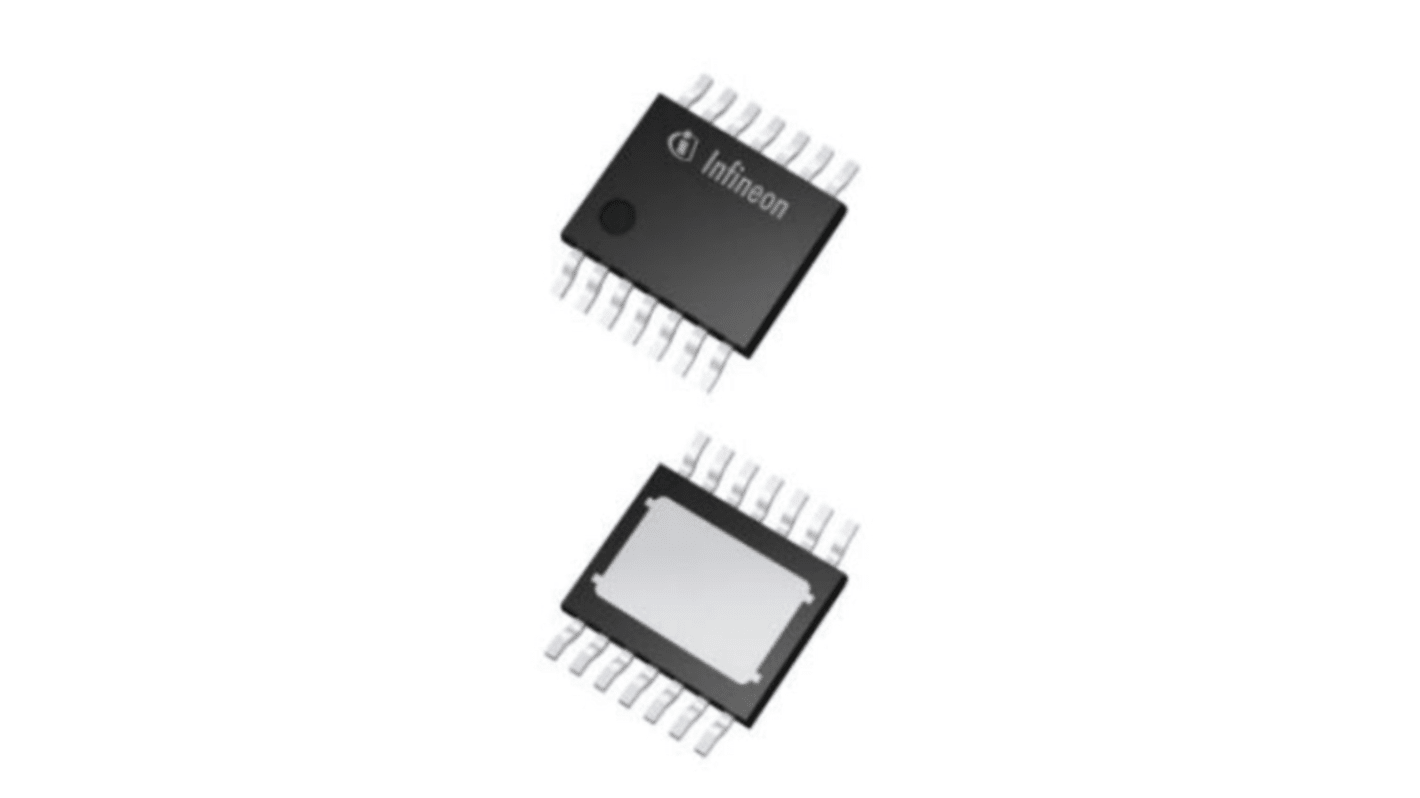

Infineon TLD23313EPXUMA1 LED Driver IC, 40 V 80mA 14-Pin
- RS Stock No.:
- 229-1888
- Mfr. Part No.:
- TLD23313EPXUMA1
- Manufacturer:
- Infineon
12000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 3000)
MYR3.647
| Units | Per Unit | Per Reel* |
| 3000 - 3000 | MYR3.647 | MYR10,941.00 |
| 6000 - 6000 | MYR3.537 | MYR10,611.00 |
| 9000 + | MYR3.431 | MYR10,293.00 |
| *price indicative | ||
- RS Stock No.:
- 229-1888
- Mfr. Part No.:
- TLD23313EPXUMA1
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Infineon triple channel high-side driver IC with integrated output stages. It is designed to control LEDs with a current up to 80 mA. In typical automotive applications the device is capable of driving 3 red LEDs per chain with a current up to 60 mA and even above, if not limited by the overall system thermal properties. Practically, the output current is controlled by an external resistor or reference source, independently from load and supply voltage changes.
It is RoHS compliant and AEC qualified
It has low current consumption during fault
It has low current consumption during fault
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Output Current | 80mA |
| Input Voltage | 40 V |
| AC or DC Input Voltage | dc |
| Maximum Output Power | 1.5W |
| Number of Pins | 14 |
