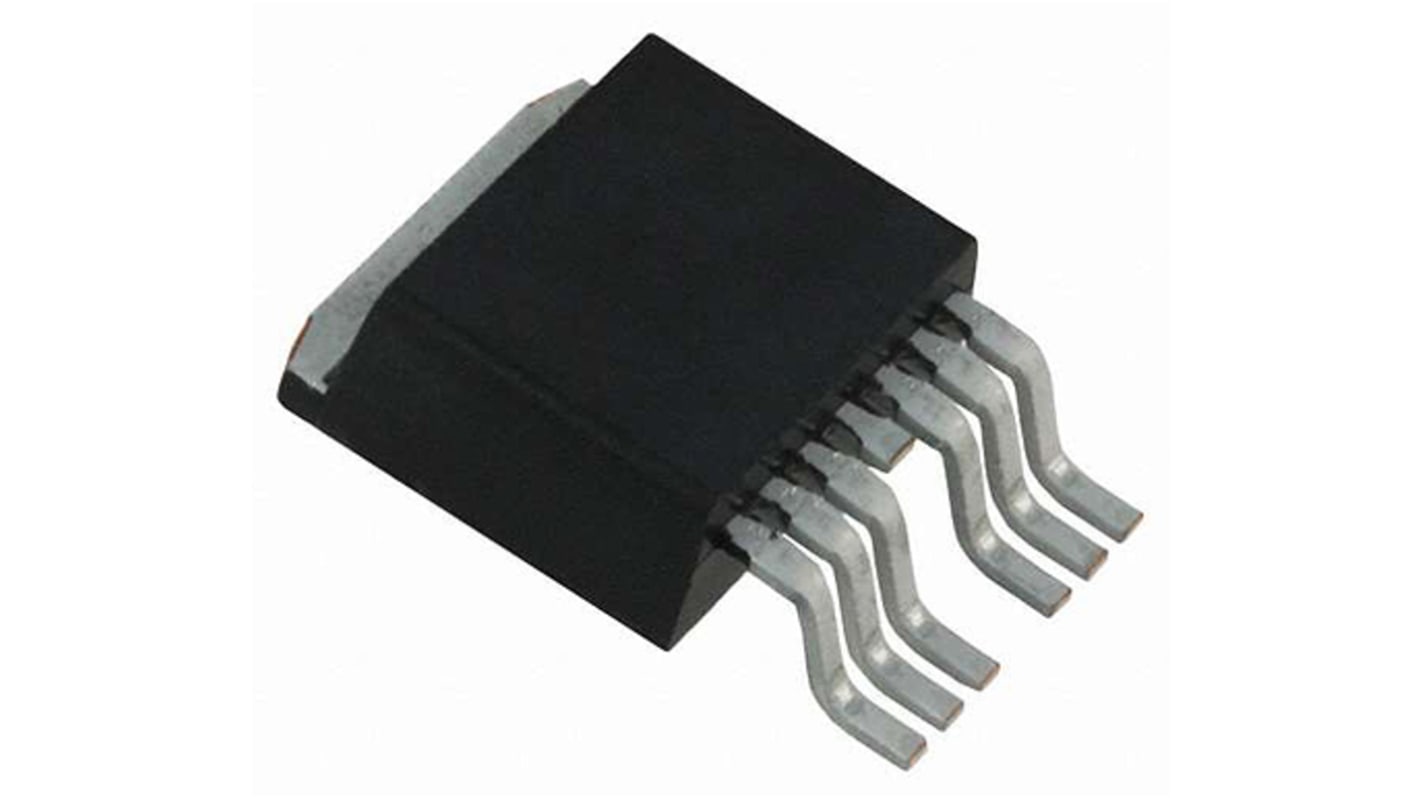

Wurth Elektronik 172946001 LED Driver IC, 4.5 → 60 V dc 450mA TO-263

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

LDHM Series MagI³C LED Drivers

The LDHM series from Wurth Elektronik are a family of LED drivers from their MagI³C Power Modules range. These constant current Buck LED drivers can drive up to 450mA LED current, driving up to 16 LEDs in series. It also includes fully integrated current driver with passives. This enables the LDHM series of to provide a ready-to-use solution for single string LED lighting applications.
Suitable applications for the LDHM LED driver ICs include; indoor spot lights, indoor down lights, street lighting, security lighting, high bay, low bay and LED driver modules.

Features of the LDHM MagI³C LED Drivers:
High current module
Drives 1 to 16 LEDs in series up to 60 V input
Output current: 300 to 450 mA
Input voltage: 4.5 to 60 V
Peak efficiency: up to 95%
PWM dimming

LED Drivers, Wurth Elektronik

Specifications
Attribute Value
Output Current 450mA
Input Voltage 4.5 → 60 V dc
AC or DC Input Voltage Dc
Dimming Operation PWM
Application Indoor Lighting, Industrial Lighting, Outdoor Lighting
Package Type TO-263
Maximum Output Voltage 60V
Minimum Output Voltage 4.5V
Current Rating 300 → 450mA
Series LDHM
Temporarily out of stock - back order for despatch 30/12/2019, delivery within 4 working days from despatch date
Price Each (On a Reel of 250)
MYR 24.54
units
Per unit
Per Reel*
250 +
MYR24.54
MYR6,135.00
*price indicative
