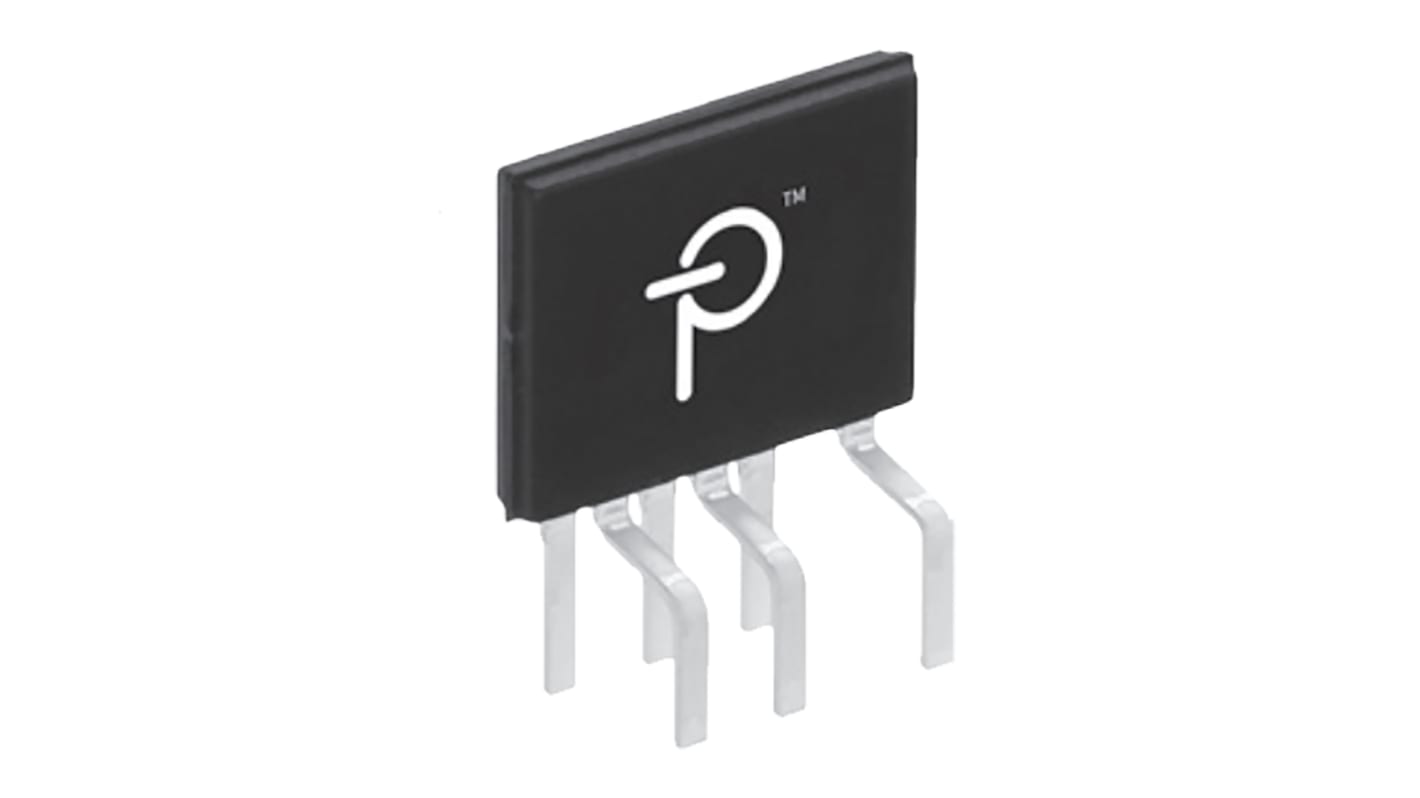

Power Integrations LYT4325E LED Driver IC, 160 → 308 V ac 5.44A 6-Pin eSIP-7C
- RS Stock No.:
- 123-5524
- Mfr. Part No.:
- LYT4325E
- Manufacturer:
- Power Integrations
960 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR7.362
| Units | Per Unit | Per Pack* |
| 5 - 10 | MYR7.362 | MYR36.81 |
| 15 - 20 | MYR6.618 | MYR33.09 |
| 25 + | MYR5.814 | MYR29.07 |
| *price indicative | ||
- RS Stock No.:
- 123-5524
- Mfr. Part No.:
- LYT4325E
- Manufacturer:
- Power Integrations
Technical data sheets
Legislation and Compliance
Product Details
LYTSwitch-4 series High Power LED Driver AC-DC Converters
The Power Integrations LYTSwitch-4 family of off-line AC-DC single-stage converters are designed for high-power LED driver applications. They integrate control and drive circuits and power factor correction in a single package and are available in both dimming and non-dimming versions.
• High line voltage operation: 160-308 Vac
• Better than ±5% constant current regulation
• Up to 92% efficiency in typical applications
• High power factor >0.9
• Easily meets EN61000-3-2
• Less than 10% THD in optimized designs
• 132 kHz switching frequency permits use of small low-cost magnetics
• No primary side aluminium electrolytic bulk capacitors required
LTY432x types only:
• TRIAC dimmable to less than 5% of full output
• Fast start-up: <250 ms at full brightness, <1s at 10% brightness
• Better than ±5% constant current regulation
• Up to 92% efficiency in typical applications
• High power factor >0.9
• Easily meets EN61000-3-2
• Less than 10% THD in optimized designs
• 132 kHz switching frequency permits use of small low-cost magnetics
• No primary side aluminium electrolytic bulk capacitors required
LTY432x types only:
• TRIAC dimmable to less than 5% of full output
• Fast start-up: <250 ms at full brightness, <1s at 10% brightness
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
AC-DC Converters, Power Integrations
Specifications
Attribute | Value |
|---|---|
| Output Current | 5.44A |
| Input Voltage | 160 → 308 V ac |
| AC or DC Input Voltage | dc |
| Dimming Operation | Triac |
| Maximum Output Power | 25W |
| Application | High Line LED Lighting |
| Package Type | eSIP-7C |
| Number of Pins | 6 |
| Minimum Output Voltage | 36V |
| Current Rating | (Non-Switching) 1.2 mA, (Switching) 4mA |
| Series | LYT4x25 |
