EPCOS 100 mH ±5% Ferrite Leaded Inductor, Max SRF:180kHz, Q:40, 20mA Idc, 490Ω Rdc, LBC

RS Stock No.:: 880-7244
Mfr. Part No.:: B82144F1107J000
Manufacturer:: EPCOS

EPCOS 100 mH ±5% Ferrite Leaded Inductor, Max SRF:180kHz, Q:40, 20mA Idc, 490Ω Rdc, LBC

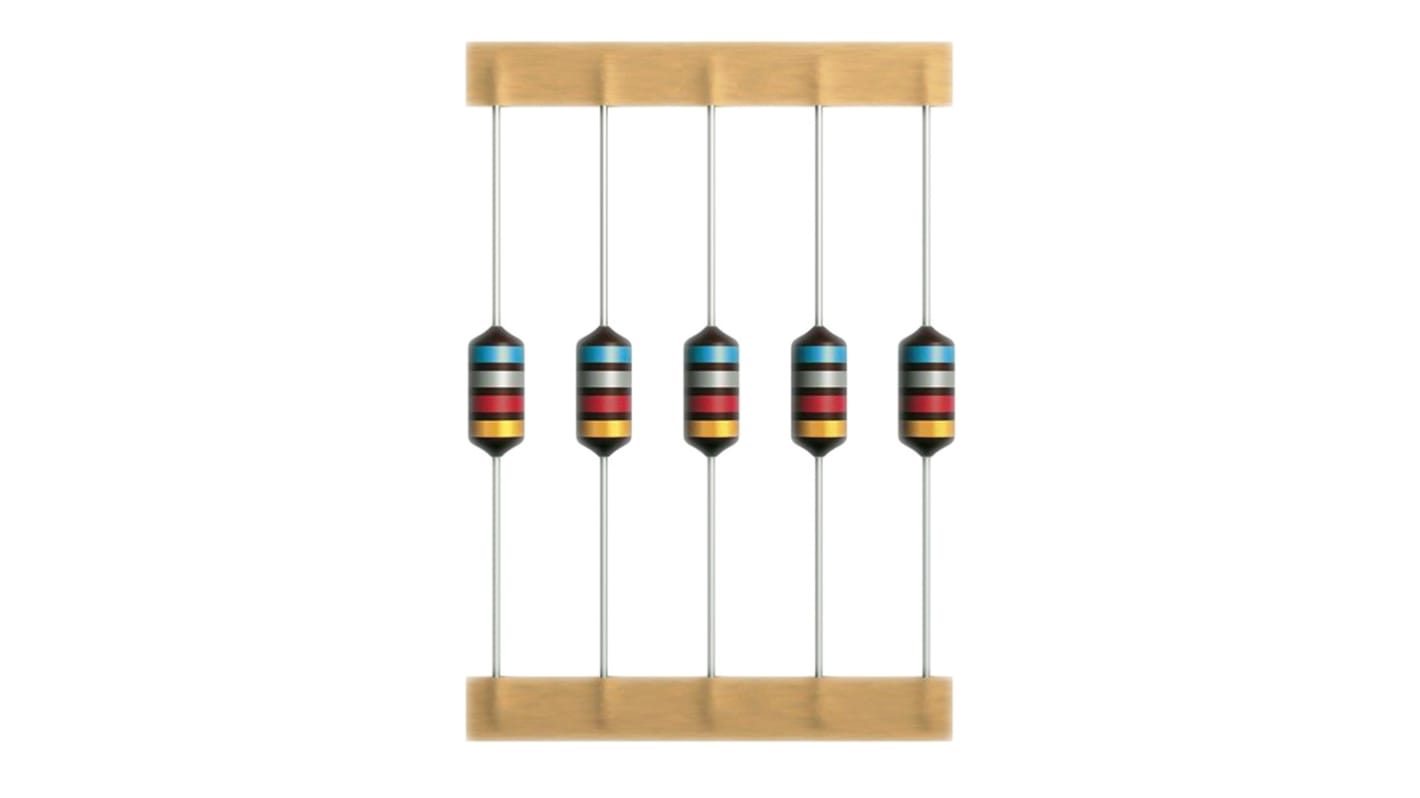

This image is representative of the product range

130 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

120 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Bag of 10)

MYR2.508

Units	Per Unit	Per Bag*
10 - 740	MYR2.508	MYR25.08
750 - 1490	MYR2.457	MYR24.57
1500 +	MYR2.384	MYR23.84
*price indicative

RS Stock No.:: 880-7244
Mfr. Part No.:: B82144F1107J000
Manufacturer:: EPCOS

Technical data sheets

B82144F RF Chokes (LBC) Datasheet

Legislation and Compliance

Product Details

Epcos B82144F LBC Series RF Chokes

Epcos B82144F LBC series RF chokes are suitable for use in telecommunications, automotive electronics, energy saving lamps and entertainment electronics. They can also be used for RF blocking and filtering and decoupling and interference suppression. These inductors consist of a large ferrite drum core with enamel copper wire winding and a flame retardant lacquer coating.

High rated current
Very wide inductance range
Suitable for wave soldering
Inductance indicated b colour bands in accordance with IEC 60062
Electroplated with nickel and pure tin

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Inductance	100 mH
Maximum DC Current	20mA
Mounting Type	Axial
Maximum DC Resistance	490Ω
Tolerance	±5%
Diameter	6.5mm
Length	9.2mm
Dimensions	6.5 (Dia.) x 9.2mm
Core Material	Ferrite
Maximum Self Resonant Frequency	180kHz
Series	LBC
Minimum Quality Factor	40
Lead Diameter	0.8mm
Terminal Type	Axial Leaded
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+125°C
