Wurth 2 x 14 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 8A Idc, 2 x 27mΩ

RS Stock No.:: 816-4859
Mfr. Part No.:: 7448060814
Manufacturer:: Wurth Elektronik

Wurth 2 x 14 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 8A Idc, 2 x 27mΩ

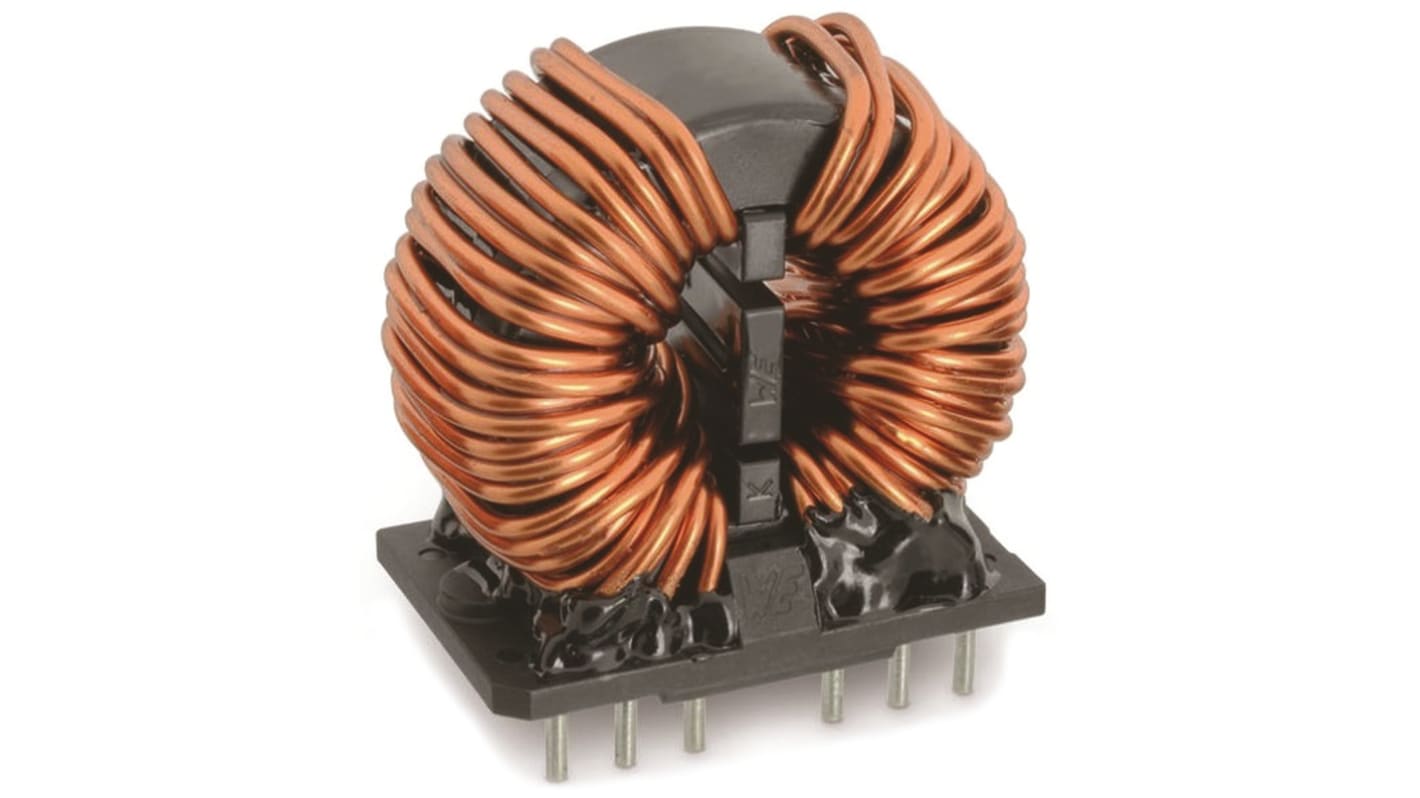

This image is representative of the product range

View this category

Temporarily out of stock - back order for despatch 23/08/2024, delivery within 4 working days from despatch date

Added

View basket

Price Each

MYR120.43

Units	Per Unit
1 - 3	MYR120.43
4 - 7	MYR114.97
8 +	MYR109.22

RS Stock No.:: 816-4859
Mfr. Part No.:: 7448060814
Manufacturer:: Wurth Elektronik

Technical data sheets

Common Mode Choke WE-CMBNC - 7448060814 Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Wurth WE-CMBNC Series Common Mode Power Line Chokes

Very high permeability nanocrystalline core material
Improved isolation throughit's plastic case and winding spacer
High and stable inductance values at high temperatures
High rated currents
Broadband suppression
Small size Frequency range: 1 kHz-300 MHz

Applications include:

Power electronics
Power line input and output filters
Radio interference suppression in motors
Suppression for common mode noise

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Wurth Leaded Inductors (Chokes)

Specifications

Attribute	Value
Inductance	2 x 14 mH
Maximum DC Current	8A
Mounting Type	Through Hole
Maximum DC Resistance	2 x 27mΩ
Tolerance	-30 → +50%
Length	43mm
Depth	27mm
Height	46mm
Dimensions	43 x 27 x 46mm
Core Material	Nano Crystalline
Maximum Self Resonant Frequency	1 kHz → 300 MHz
Lead Pitch	10mm
Series	WE-CMBNC
Terminal Type	Through Hole
Maximum Operating Temperature	+125°C
Lead Diameter	1.2mm
Minimum Operating Temperature	-40°C
