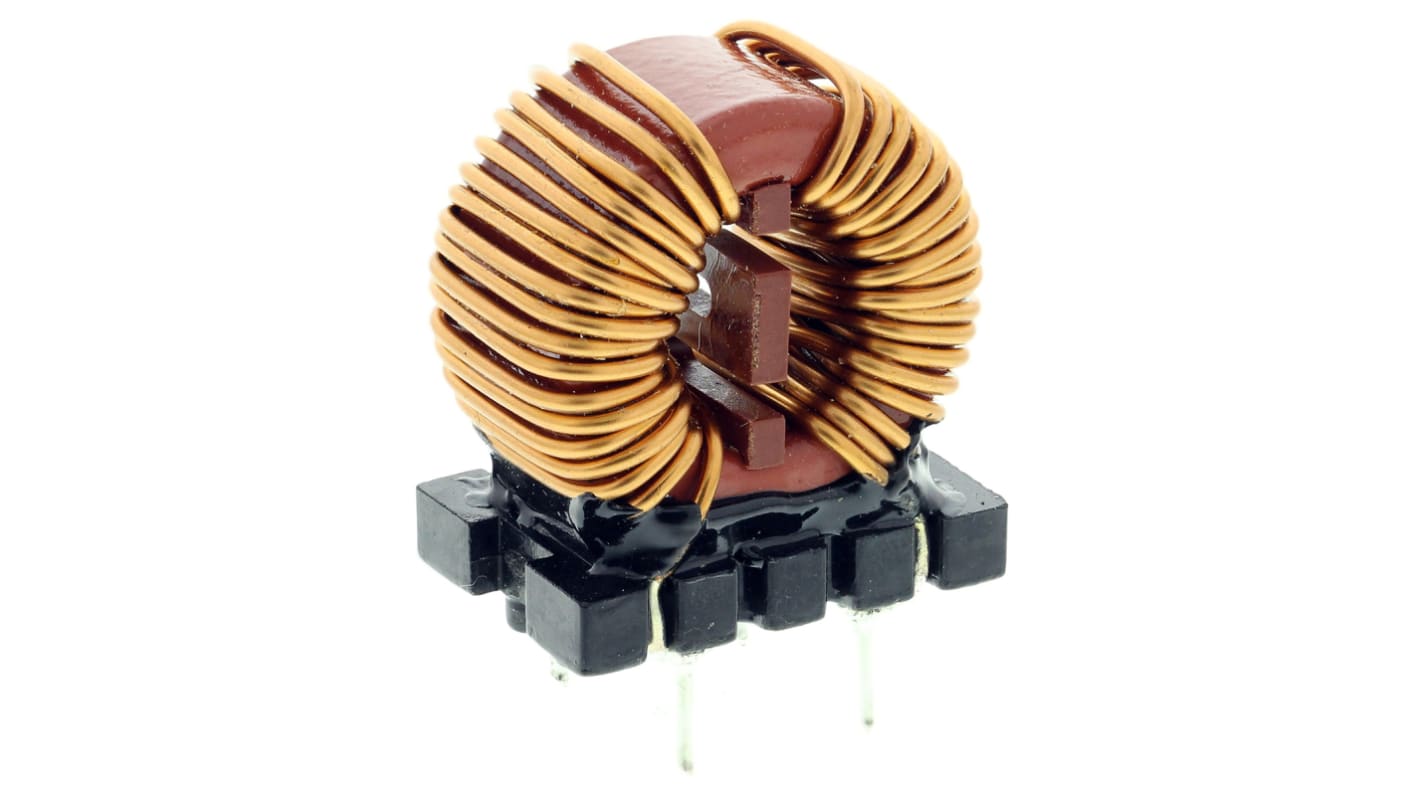

Wurth 2.2 mH ±30% Leaded Inductor, 6A Idc, 20mΩ Rdc WE-CMB

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Wurth WE-CMB XS, M and XL Series Common Mode Chokes

From Wurth Elektronik, the WE-CMB series of common modes chokes are a compact solution delivering high suppression of asymmetrical interferences, even at low frequency ranges. WE-CMB series common mode chokes offer the highest possible current for their ultra compact size. WE-CMB common mode chokes feature broadband screening due to the anti-capacitance coiling technique that has been incorporated into the design.

Features and Benefits:

Compact design Climatic category: 40/125/21
IEC 60938-2
Flammability: UL 49 V-0
Wide operating temperature range of -40°C to +125°C

Product Applications:

WE-CMB common mode chokes are ideal for the suppression of common mode noise and the suppression of radio interferences in motors. Suitable applications include power line in and output filters, power electronics and the filtering of devices lacking a ground connection.

//media.rs-online.com/t_line/L489014-01.gif

Wurth Leaded Inductors (Chokes)

Specifications
Attribute Value
Inductance 2.2 mH
Maximum DC Current 6A
Mounting Type Radial
Maximum DC Resistance 20mΩ
Tolerance ±30%
Length 27.5mm
Depth 18.5mm
Height 33mm
Dimensions 27.5 x 18.5 x 33mm
Lead Pitch 10mm
Series WE-CMB
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
Terminal Type Through Hole
23 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 21.60
units
Per unit
1 - 9
MYR21.60
10 - 99
MYR20.07
100 - 499
MYR18.61
500 - 999
MYR16.19
1000 +
MYR14.69
