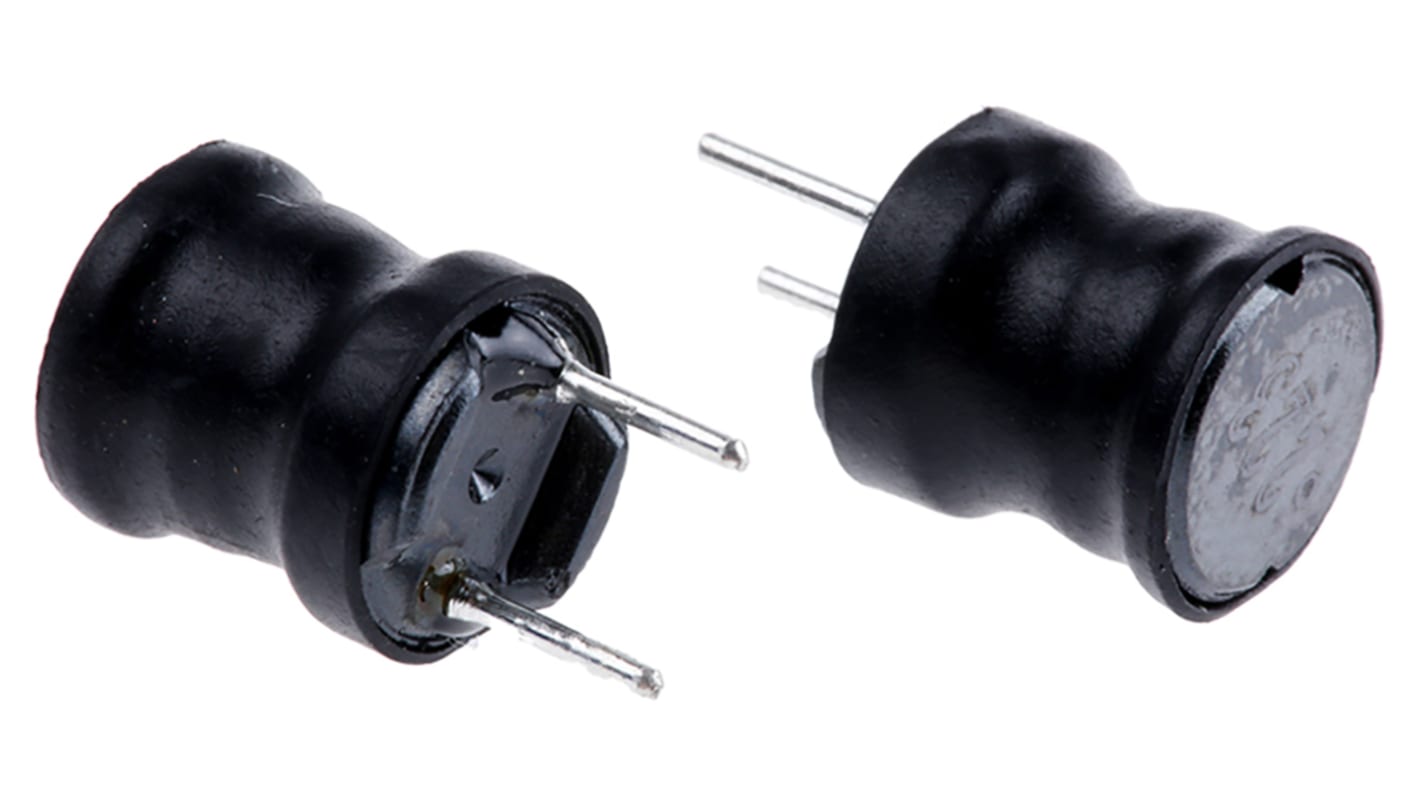

Wurth 22 mH ±5% Ferrite Radial Inductor, 100mA Idc, 55Ω Rdc WE-TI

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Wurth WE-TI Series Radial Filter Chokes

Characteristics

Radial through-hole inductor
Maximum current up to 4.5A
High saturation core material
Small size
Standardised lead spacing is 5mm
Operating temperature: -25°C → +85°C

Applications

Signal filtering
Switches, switching power supply for small and medium voltage
Power supply filter

Wurth Leaded Inductors (Chokes)

Specifications
Attribute Value
Inductance 22 mH
Maximum DC Current 100mA
Mounting Type Radial
Maximum DC Resistance 55Ω
Tolerance ±5%
Diameter 8.5mm
Height 10mm
Dimensions 8.5 (Dia.) x 10mm
Core Material Ferrite
Lead Pitch 5mm
Series WE-TI
Terminal Type Through Hole
Minimum Operating Temperature -25°C
Maximum Operating Temperature +85°C
80 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 3.79
units
Per unit
Per Pack*
10 - 40
MYR3.79
MYR37.90
50 - 240
MYR3.654
MYR36.54
250 - 490
MYR3.517
MYR35.17
500 - 990
MYR3.291
MYR32.91
1000 +
MYR3.139
MYR31.39
*price indicative
