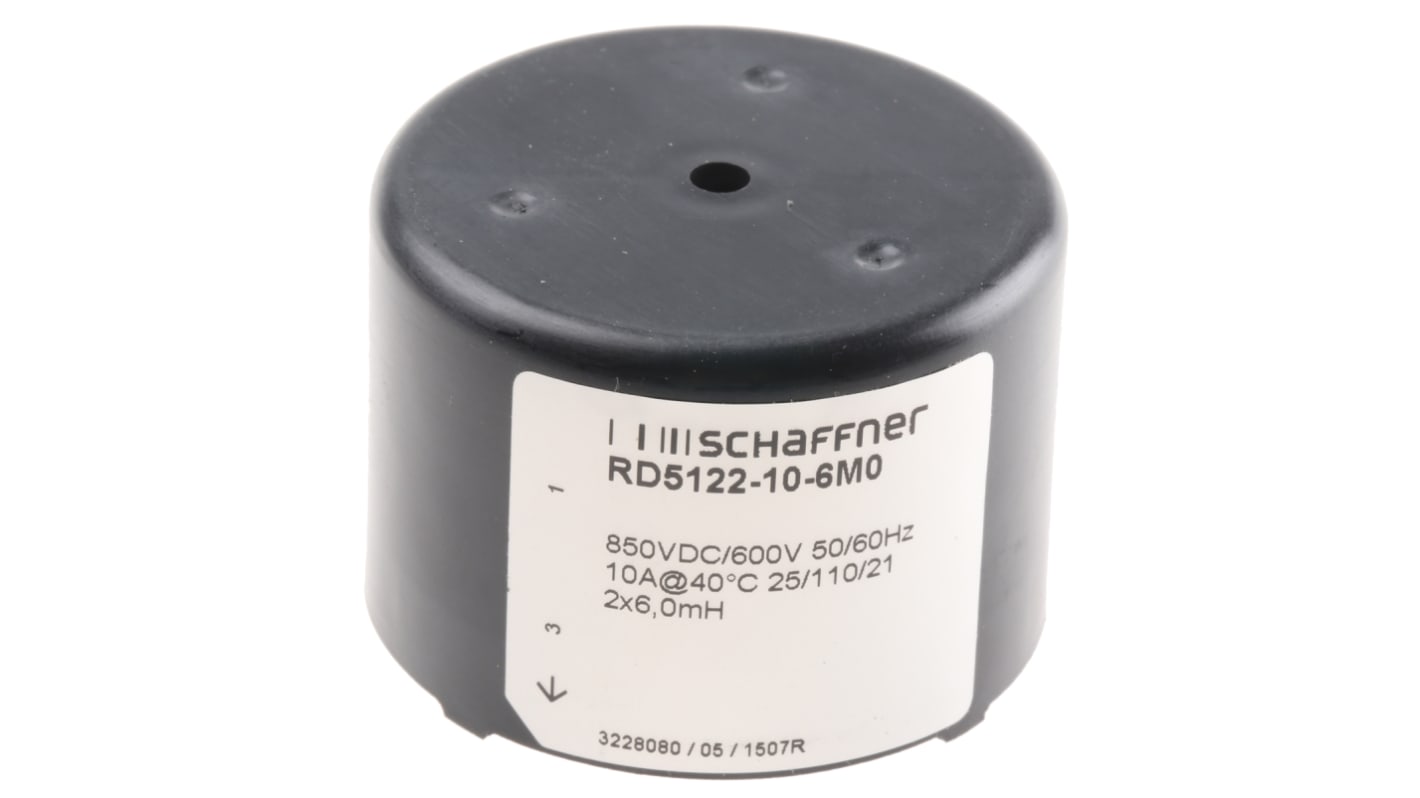

Schaffner 6 mH -30 → +50% Current Compensated Choke, 10A Idc, 24.25mΩ Rdc RD

  • RS Stock No. 465-6146
  • Mfr. Part No. RD5122-10-6M0
  • Manufacturer Schaffner
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Schaffner RD Series Common Mode Chokes

The RD series of chokes from Schaffner are attenuating common-mode or asymmetric (P/N ->E) interference signals, by being
connected in series with the phase and neutral lines of an AC powerline input. The Symmetrical of the noise are also attenuated due to the leakage inductance of the windings.

6A to 64A current ratings
Dual, Triple and Quad choke configurations

Applications

Filter networks
Decoupling tasks
Low power switch mode regulators

//media.rs-online.com/t_line/L219303-01.gif
//media.rs-online.com/t_line/L219306-01.gif
//media.rs-online.com/t_line/L219309-01.gif
//media.rs-online.com/t_line/L465617-01.gif
//media.rs-online.com/t_line/L465631-01.gif

Schaffner Leaded Inductors (Chokes)

Specifications
Attribute Value
Inductance 6 mH
Maximum DC Current 10A
Mounting Type Lead Wire
Maximum DC Resistance 24.25mΩ
Tolerance -30 → +50%
Diameter 50.5mm
Height 35.5mm
Dimensions 50.5 (Dia.) x 35.5mm
Series RD
Terminal Type PC Pin
Minimum Operating Temperature -25°C
Maximum Operating Temperature +110°C
