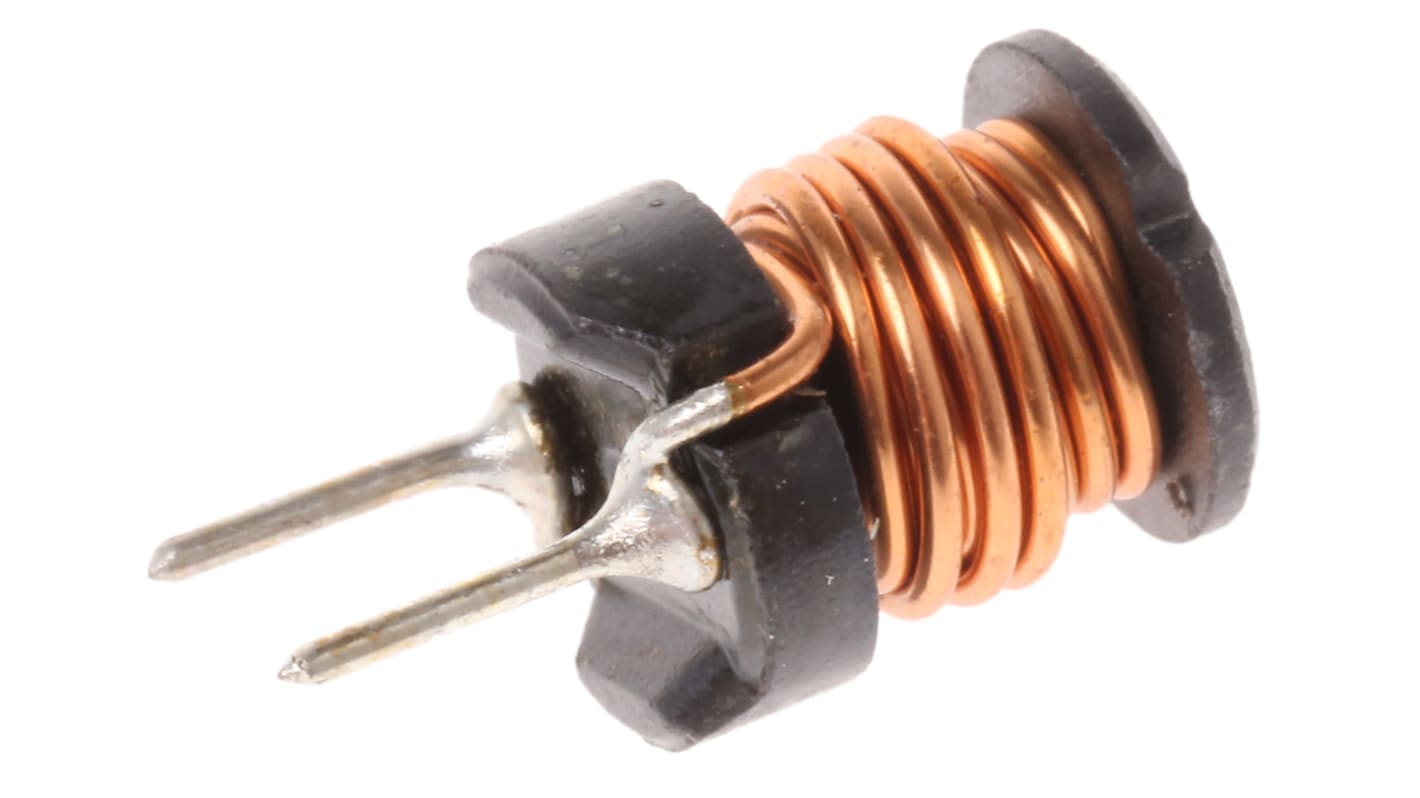

Wurth 10 μH ±20% Ferrite Radial Inductor, 2.6A Idc, 40mΩ Rdc WE-TI

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Wurth WE-TI Series Radial Filter Chokes

Characteristics

Radial through-hole inductor
Maximum current up to 4.5A
High saturation core material
Small size
Standardised lead spacing is 5mm
Operating temperature: -25°C → +85°C

Applications

Signal filtering
Switches, switching power supply for small and medium voltage
Power supply filter

Wurth Leaded Inductors (Chokes)

Specifications
Attribute Value
Inductance 10 μH
Maximum DC Current 2.6A
Mounting Type Radial
Maximum DC Resistance 40mΩ
Tolerance ±20%
Diameter 8.3mm
Height 10mm
Dimensions 8.3 (Dia.) x 10mm
Core Material Ferrite
Lead Pitch 5mm
Series WE-TI
Maximum Operating Temperature +125°C
Terminal Type Through Hole
Minimum Operating Temperature -40°C
280 Within 4 working day(s) (Global stock)
10 Within 6 working day(s) (Global stock)
Price Each (In a Tray of 140)
MYR 3.08
units
Per unit
Per Tray*
140 +
MYR3.08
MYR431.20
*price indicative
