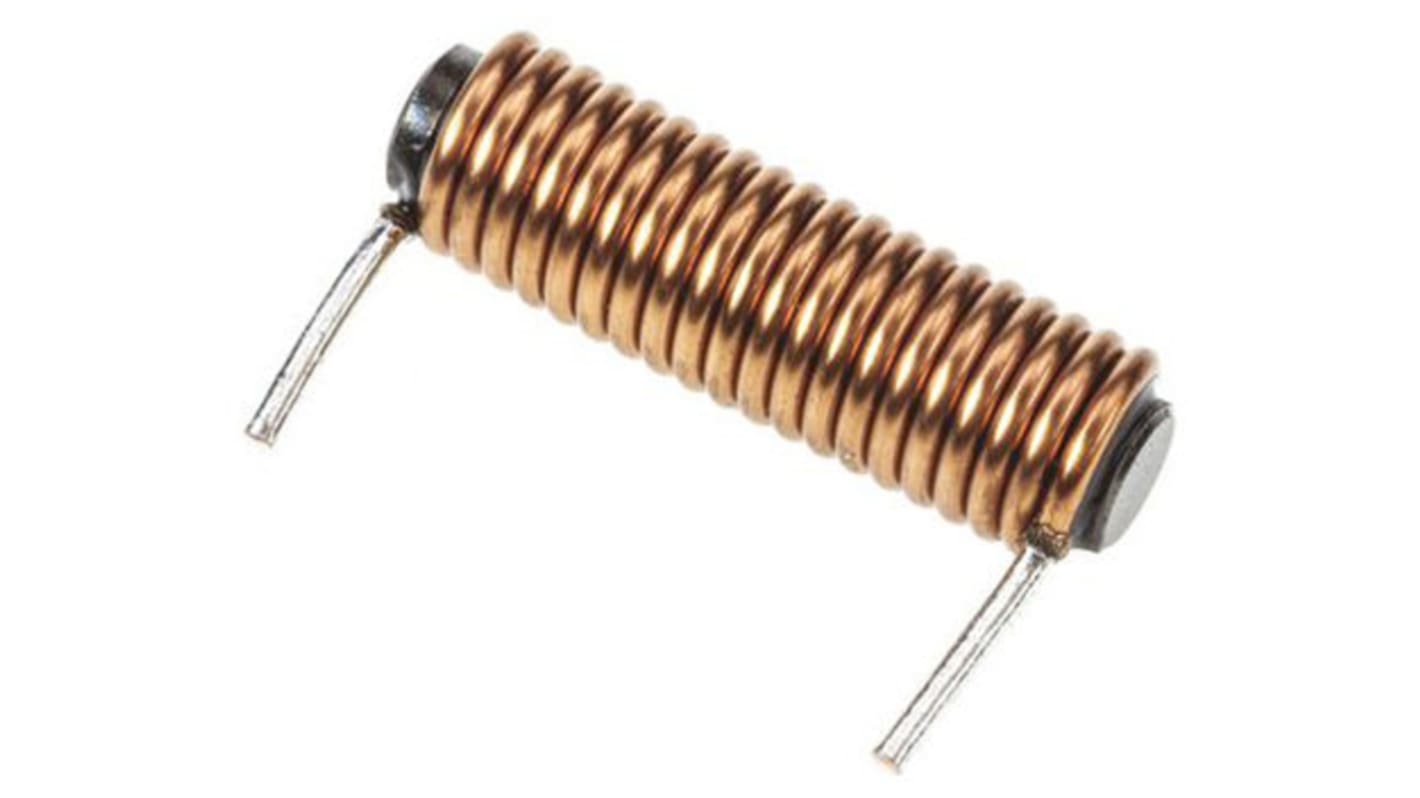

Wurth 10 μH ±15% Ferrite Leaded Inductor, 10A Idc, 10mΩ Rdc, WE SD
- RS Stock No.:
- 124-1893
- Mfr. Part No.:
- 7447160
- Manufacturer:
- Wurth Elektronik
560 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR15.57
| Units | Per Unit | Per Pack* |
| 5 - 45 | MYR15.57 | MYR77.85 |
| 50 + | MYR14.806 | MYR74.03 |
| *price indicative | ||
- RS Stock No.:
- 124-1893
- Mfr. Part No.:
- 7447160
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Rod Cores, Type WE-SD
Wurth Elektronik rod core inductor is a compact design and has constant inductance over a wide range. The rod cores suppress symmetrical and asymmetrical interference. The rod core inductors also suppress wideband interference(up to 1 GHz) Operating temperature: -40°C - +85°C
Applications
Suppression of d.c. Motors
Suppression of switch mode power supplies/UPS
Discrete high-performance interference suppression filter
Automotive industry
Suppression of switch mode power supplies/UPS
Discrete high-performance interference suppression filter
Automotive industry
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Wurth Leaded Inductors (Chokes)
Specifications
Attribute | Value |
|---|---|
| Inductance | 10 μH |
| Maximum DC Current | 10A |
| Mounting Type | Radial |
| Maximum DC Resistance | 10mΩ |
| Tolerance | ±15% |
| Length | 30.5mm |
| Depth | 9.5mm |
| Height | 6mm |
| Dimensions | 30.5 x 9.5 x 6mm |
| Core Material | Ferrite |
| Lead Pitch | 26.6mm |
| Series | WE SD |
| Lead Diameter | 1.3mm |
| Terminal Type | Through Hole |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
