Wurth 47 μH ±20% Ferrite Common Mode Choke, Max SRF:7MHz, Q:50, 370mA Idc, 1Ω Rdc WE-TI

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

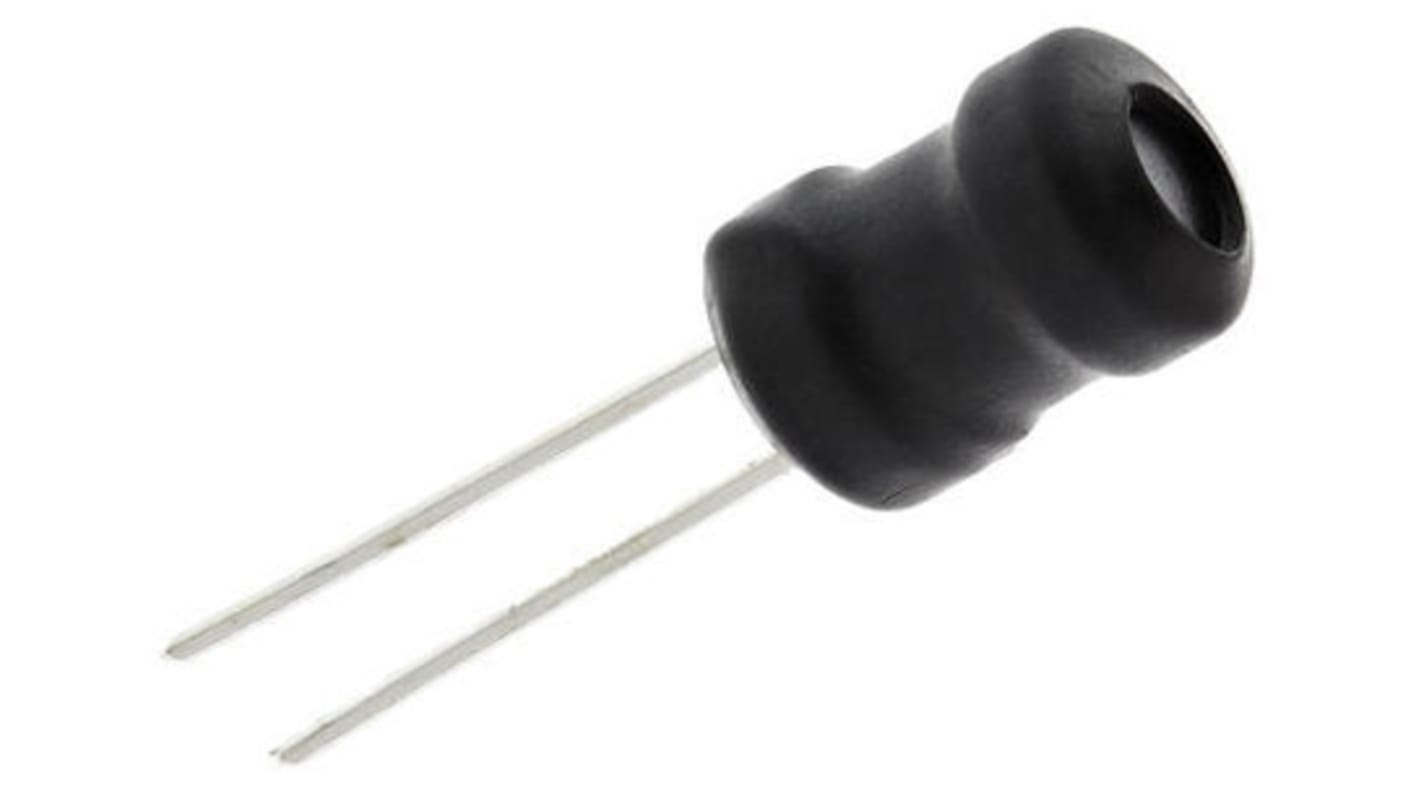

Wurth WE-TI Series Radial Inductor

Radial through-hole inductor filter choke, with high saturation core material.

Small 6x8mm size
Maximum Current up to 8.5A
High quality
High self-resonant frequency
Low d.c. resistance

Applications

Signal filtering
Decoupling tasks
Power supply filter
EMI filter
Low power switch mode regulators

Wurth Leaded Inductors (Chokes)

Specifications
Attribute Value
Inductance 47 μH
Maximum DC Current 370mA
Mounting Type Radial
Maximum DC Resistance
Tolerance ±20%
Diameter 7.2mm
Height 10mm
Dimensions 7.2 (Dia.) x 10mm
Core Material Ferrite
Maximum Self Resonant Frequency 7MHz
Lead Pitch 2.54mm
Series WE-TI
Terminal Type Through Hole
Maximum Operating Temperature +125°C
Minimum Quality Factor 50
Minimum Operating Temperature -40°C
60 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 20)
Was MYR5.524
MYR 3.639
units
Per unit
Per Pack*
20 - 1180
MYR3.639
MYR72.78
1200 +
MYR3.465
MYR69.30
*price indicative
