RS PRO 47 μH ±15% Power Inductor, 5A Idc, 43mΩ Rdc DP

  • RS Stock No. 104-8439
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

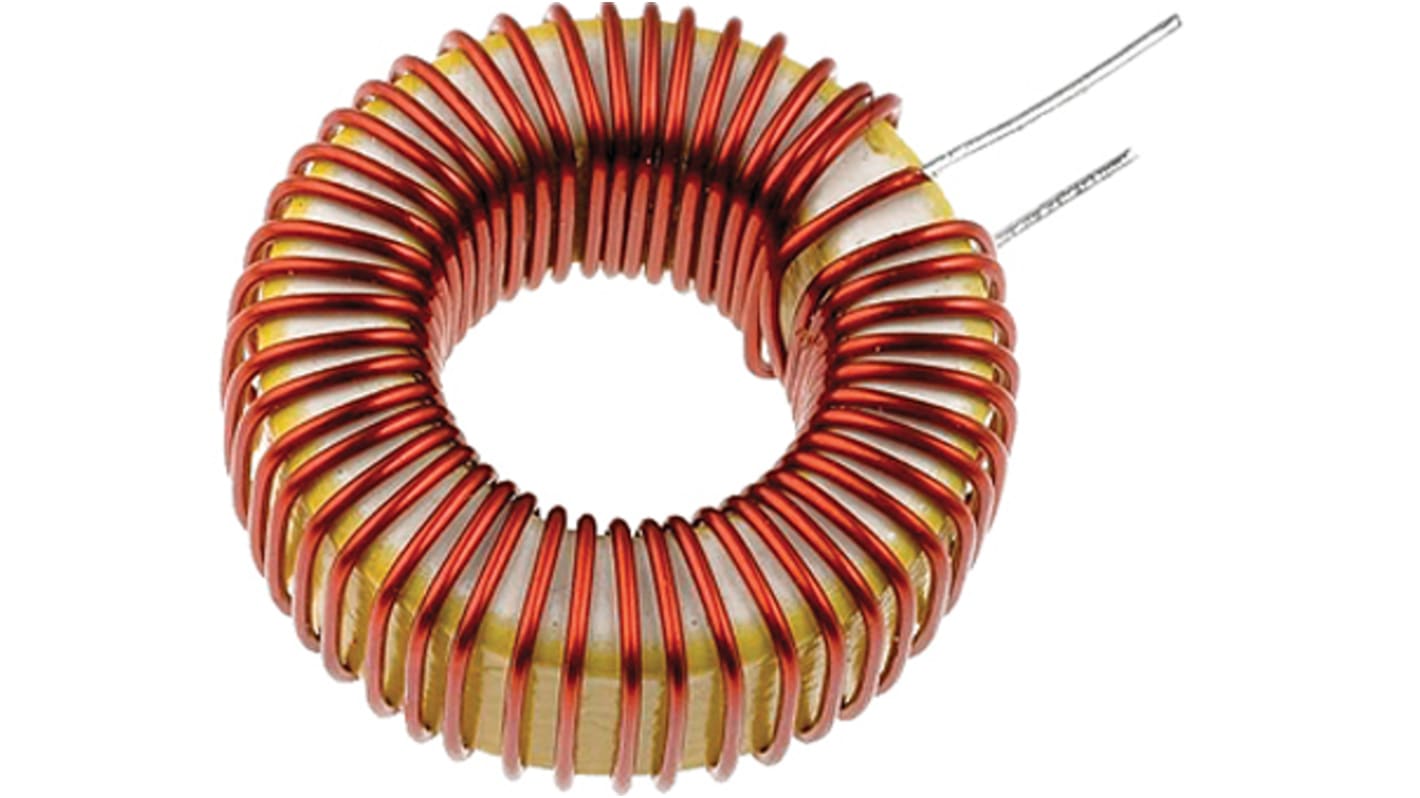

RS Pro Toroidal Power Inductor 22uf - 1000uf

RS Pro Toroidal Power inductors can be used in EMI Filtering and energy storage. These compact power inductors are effective in controlling AC output ripple of switch mode supplies. The Power inductors come in a broad range of inductance values and current ratings.

Features

Low cost
No radiation design
Hot Solder, inductors have pre - pinned leads for easy PC Board mounting
Operating frequency to 100 kHz
RoHS compliant

Standards

ISO-9001:2000
S-16949:2002
ISO-14001:2004

Specifications
Attribute Value
Inductance 47 μH
Maximum DC Current 5A
Mounting Type Radial
Maximum DC Resistance 43mΩ
Tolerance ±15%
Diameter 25mm
Height 12mm
Dimensions 25 (Dia.) x 12mm
Series DP
Minimum Operating Temperature -40°C
Lead Diameter 0.75mm
Terminal Type Radial Leaded
Maximum Operating Temperature +125°C
10 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 4.688
units
Per unit
Per Pack*
5 - 245
MYR4.688
MYR23.44
250 +
MYR3.498
MYR17.49
*price indicative
