4D Systems 4DCAPE-70T TFT LCD Colour Display / Touch Screen, 7in WVGA, 800 x 480pixels

  • RS Stock No. 841-7866
  • Mfr. Part No. 4DCAPE-70T
  • Manufacturer 4D Systems
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

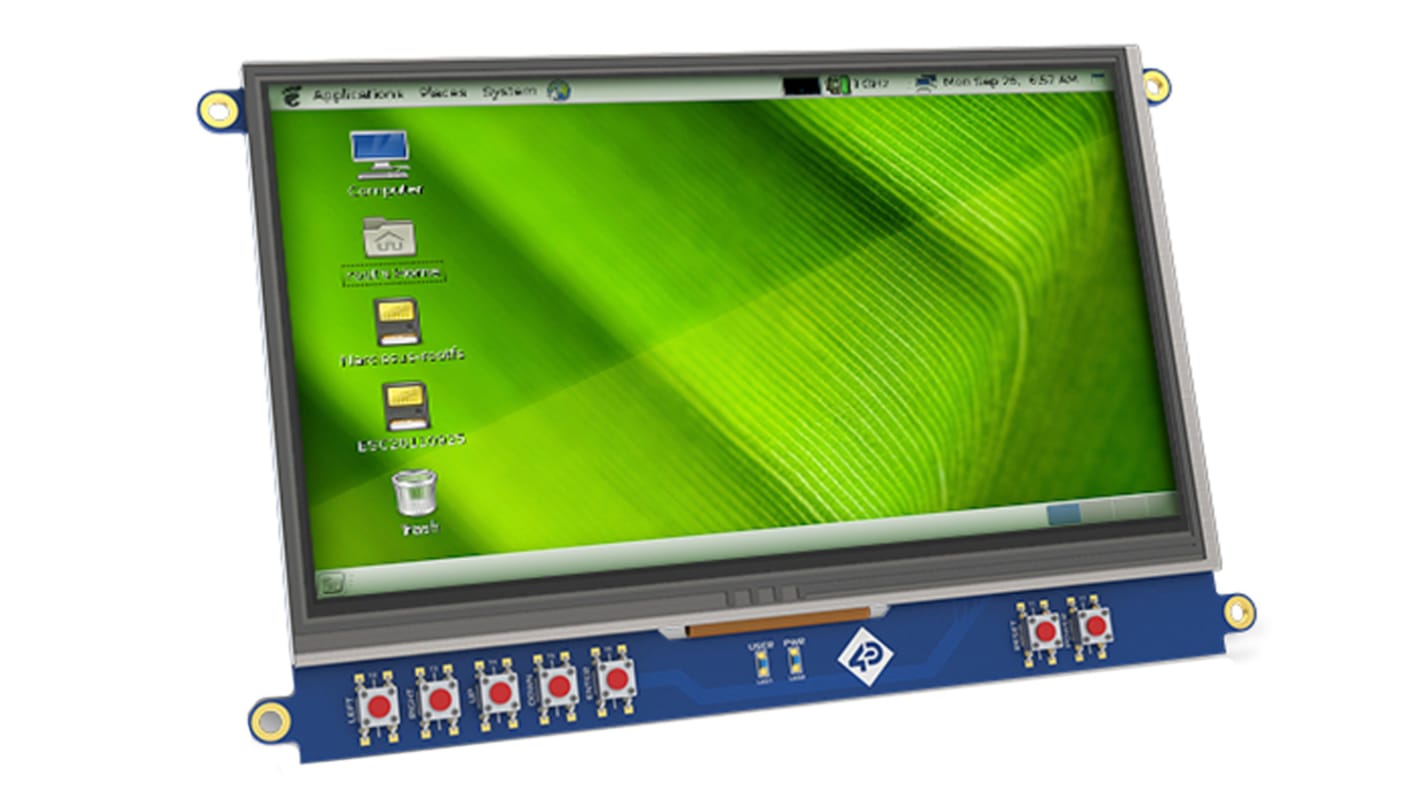

4D Systems LCD CAPE for BeagleBone Black - Touch Screen

The 4DCAPE-43T and 4DCAPE-70T, from 4D Systems, are LCD CAPES designed for the BeagleBone Black (BBB). The CAPE displays are available in a choice of screen sizes and resolutions. They function as the primary display for the BBB whilst allowing for additional CAPES to be added too.
There are seven push buttons on the CAPE; left, right, up, down, enter, reset and power. There are also two LEDs which indicate the power and user status.
The BeagleBone Black simply connects to the back of the CAPE, providing it with everything it requires to function, for example power and display signals. Four mounting holes allow for easy panel and enclosure mounting. All of these features are designed to aid the user in a quick and easy set-up, keeping time and number of components to a minimum. The CAPES also come with a Quick Start User Guide.

Features of the 4DCAPE-43T and 4DCAPE-70T:
TFT LCD CAPE
Designed for BeagleBone Black
Resistive touch screen
Display size: 4.3” or 7.0”
7 x push buttons
2 x LEDs

4D Systems LCD Touchscreens

Specifications
Attribute Value
Diagonal Display Size 7in
Interface Type Parallel, Serial
Resolution 800 x 480pixels
Touch Screen Yes
Touch Screen Type Resistive
Backlight Type LED
Display Mode Transmissive
AC or DC Input Voltage Dc
Display Matrix Technology TFT
Minimum Operating Temperature -15°C
Graphics Array Type WVGA
Power Supply Included No
Aspect Ratio 5:3
49 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 364.01
units
Per unit
1 - 9
MYR364.01
10 +
MYR353.17
