IP65 (Front); IP40 (Rear) Key Switch, 5 A @ 250 V ac 2-Way
- RS Stock No.:
- 331-4914
- Mfr. Part No.:
- 61-9210.0,61-9220.0,61-9230.0,61-2201.0/D
- Manufacturer:
- EAO
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR328.04
| Units | Per Unit |
| 1 - 99 | MYR328.04 |
| 100 - 249 | MYR321.16 |
| 250 - 499 | MYR311.53 |
| 500 + | MYR302.19 |
- RS Stock No.:
- 331-4914
- Mfr. Part No.:
- 61-9210.0,61-9220.0,61-9230.0,61-2201.0/D
- Manufacturer:
- EAO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
EAO Key & Selector Switches & Flush Mount Bezel Set, Series 61
The EAO Series 61 is a high quality, modular switch range that includes pushbuttons, indicators, selector switches, keylock switches and Emergency-stop. Available in raised or flush mount.
Flush mount Keylock switches and Selector switch

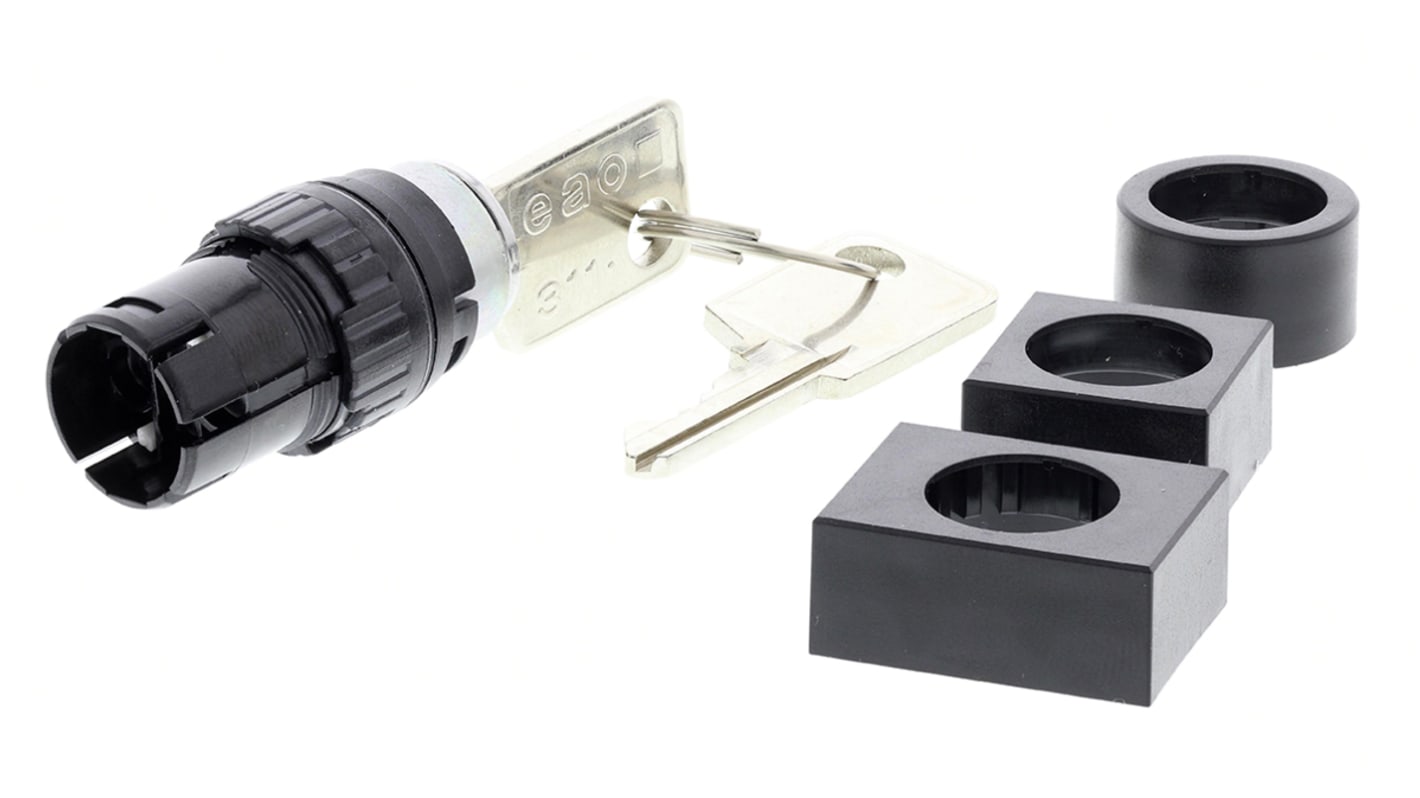

Keylock switches are supplied with three assorted front bezels which require the flush mount bezel set, stock no.( 331-4964) for mounting
Flush mounts into 24 x 24 mm square, 25 mm round and 24 x 30mm rectangular cut-outs
Selector switch supplied with flush mount lever
Momentary or maintained action
IP65 protection
Switch rating 5A @ 250 Vac
Self cleaning snap action switching element
For Contact Blocks - see stk nos. 219-5447,219-5453 or 219-5469
Keylock switches are supplied with three assorted front bezels which require the flush mount bezel set, stock no.( 331-4964) for mounting
Flush mounts into 24 x 24 mm square, 25 mm round and 24 x 30mm rectangular cut-outs
Selector switch supplied with flush mount lever
Momentary or maintained action
IP65 protection
Switch rating 5A @ 250 Vac
Self cleaning snap action switching element
For Contact Blocks - see stk nos. 219-5447,219-5453 or 219-5469
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Switch Operation | Latching |
| Key Trapping | Yes |
| Contact Current Rating | 5 A @ 250 V ac |
| IP Rating | IP65 (Front); IP40 (Rear) |
| Case Material | Polyamide |
| Depth Behind Panel | 42mm |
| Key Index Angle | 90° |
| Contact Material | Gold Plated Silver |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +55°C |
| Mechanical Life | 50000Operations |
| Maximum Operating Temperature | +55°C |
