Takachi Electric Industrial Junction Box, IP65, 60mm x 40mm x 24mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

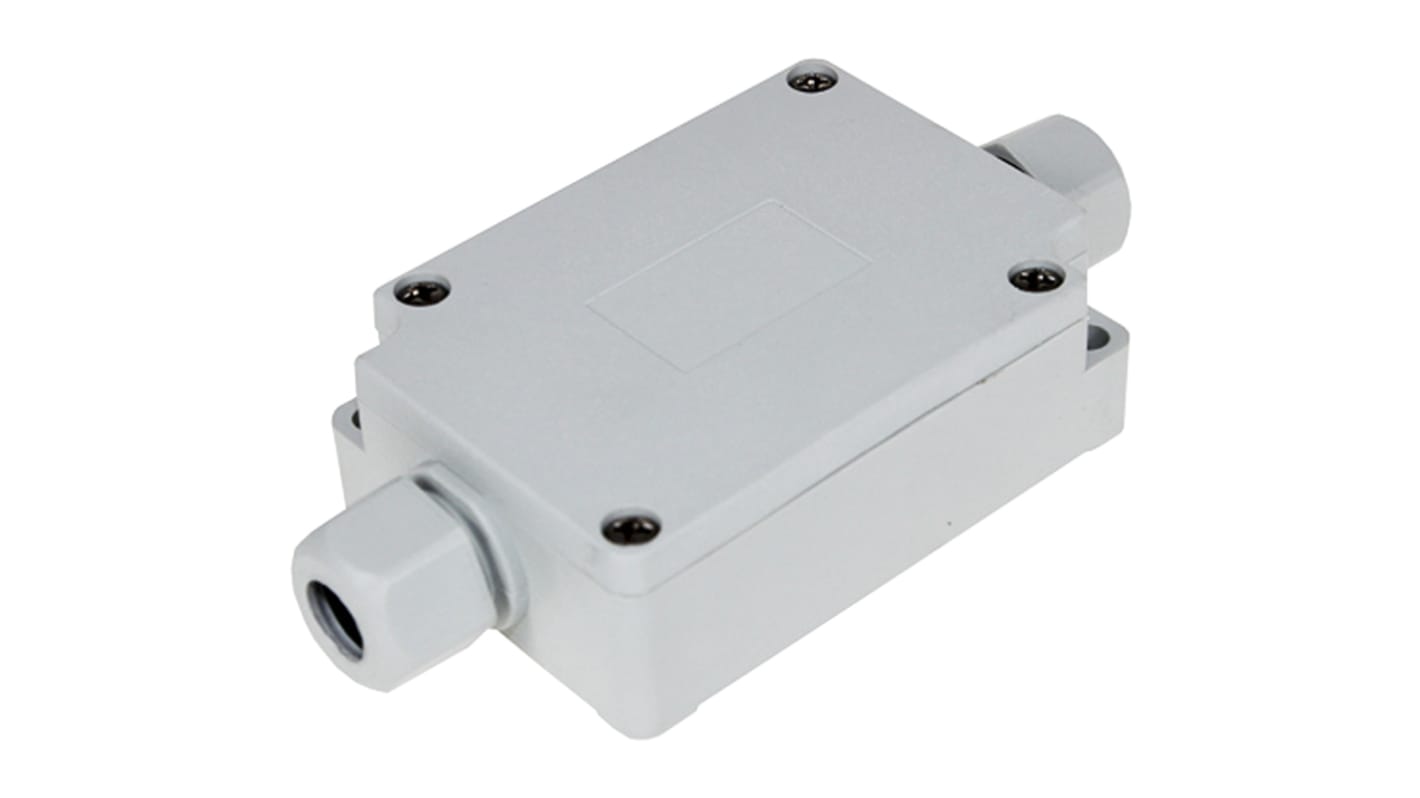

Takachi TMC Junction Boxes

The Takachi TMC series is an integrated junction box consisting of cable glands and a terminal block. These enclosures are made from polybutylene terephthalate (PBT) and offer IP65 protection. The TMC series are suitable for industrial applications, power cable joints and wiring for motors or sensors.

IP65 protection
Available in 3, 4 and 6 poles
Available in light grey or black
PBT (UL94-V0) cover, base and cable cap
-20°C to +75°C operating temperature
250V rated voltage
15A rated current

Supplied with

2 pcs each of 5 and 7.4 rubber cable bushes.

Specifications
Attribute Value
Length 60mm
Material Plastic
Width 40mm
Dimensions L x W x H 60 x 40 x 24mm
IP Rating IP65
Height 24mm
Number of Terminals 4
Number of Ways 2
Colour Grey
Cable Entry M3
Current Rating 15A
33 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR115.60
MYR 81.47
units
Per unit
1 - 5
MYR81.47
6 - 9
MYR80.10
10 +
MYR78.87
