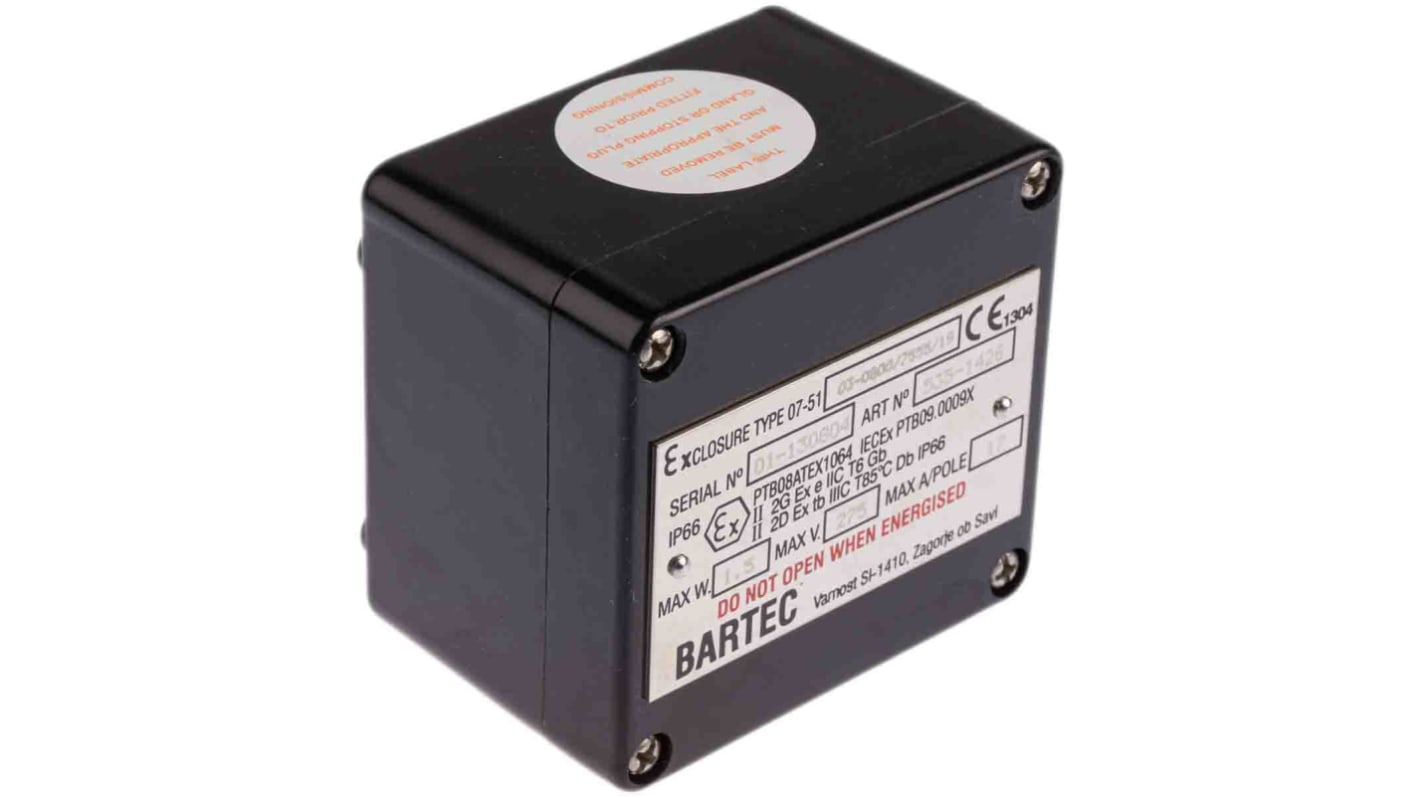

Bartec ATEX Junction Box, IP66, 80mm x 75mm x 55mm

  • RS Stock No. 535-1426
  • Mfr. Part No. GB80
  • Manufacturer Bartec
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

GRP EExe Junction Boxes

Introducing the range of OTB junction boxes from Bartec. Manufactured of high impact resistance, glass-fibre reinforced polyester SMC & DMC providing extraordinary stability and corrosion resistance. The standard enclosure consists of black, antistatic material. All OTB junction boxes have been tested and approved by the BASEEFA authorities according to the latest European Standards. These correspond to the requirements of the EC directive 94/9/EC (ATEX).

Features and Benefits:
• Made from high-quality antistatic, glass-fibre reinforced polyester
• Operating temperature from -25 °C to +40 °C (-55°C to +65°C for extended ambient temperature range only)
• IP66 water resistance
• High impact resistance (energy greater than 2 x 7 Nm)
• Flame retardant: IEC 92.1, UL94VO
• Zinc-plated steel earth continuity plate with clearance holes with raised dimples to provide a high-pressure electrical contact between cable gland and earth plate
• Contains 5 x AKZ4 terminals and 1 x AKE earth terminal
• ATEX and BASEEFA certified
• Captive lid screws
• Silicon O ring lid seal
• Available in black

OTB Junction boxes are available in 2 sizes:
Bartec ATEX Junction Box, IP66, 80mm x 75mm x 55mm (535-1426)
Bartec ATEX Junction Box, IP66, 122mm x 122mm x 82mm (535-1432)

Typical Application:
Junctions Boxes are primarily used in building construction and are designed to provide protection to wiring circuits and electrical connections for easy access. Boxes are usually made from metal or heavy-duty plastic and in most situations can be used both indoor and outdoor due to water and impact resistance.
Typically junction boxes are used for:
• Connecting additional sockets to circuits
• Adding lighting points
• Extending circuits
• Electricity circuit repairs

Approvals & Certification:
• ATEX EC directive 94/9/EC
• BAS 98 ATEX 3089U
• BASEEFA
• EN 50014
• Ex II 2 GD T 85°C, EEx e II T6 increased safety
• BS EN 50014, BS EN 50019; 1994
• BS EN 50281-1-1; 1998
• IP 66 (EN 60529/IEC 60529)

FAQs:
Does this box come with terminal?
Yes, 5 x AKZ4 terminals and 1 x AKE earth terminal

What's included in the set?
Boxes are supplied complete with:
• lid screws
• instruction sheet

Manufactured from flame retardant black antistatic high impact glass-filled polyester material
Captive lid screws
Silicon O ring lid seal
Zinc-plated steel earth continuity plate with clearance holes with raised dimples to provide a high pressure electrical contact between cable gland and earth plate
Contains 5 x AKZ4 terminals and 1 x AKE earth terminal

Specifications
Attribute Value
Length 80mm
Material Glass Fibre Reinforced PET
Width 75mm
Dimensions L x W x H 80 x 75 x 55mm
IP Rating IP66
Height 55mm
Number of Terminals 5 + E
Number of Ways 1
Colour Black
Hazardous Area Certification ATEX
Current Rating 21A
44 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 411.99
units
Per unit
1 - 11
MYR411.99
12 - 24
MYR407.25
25 +
MYR396.80
